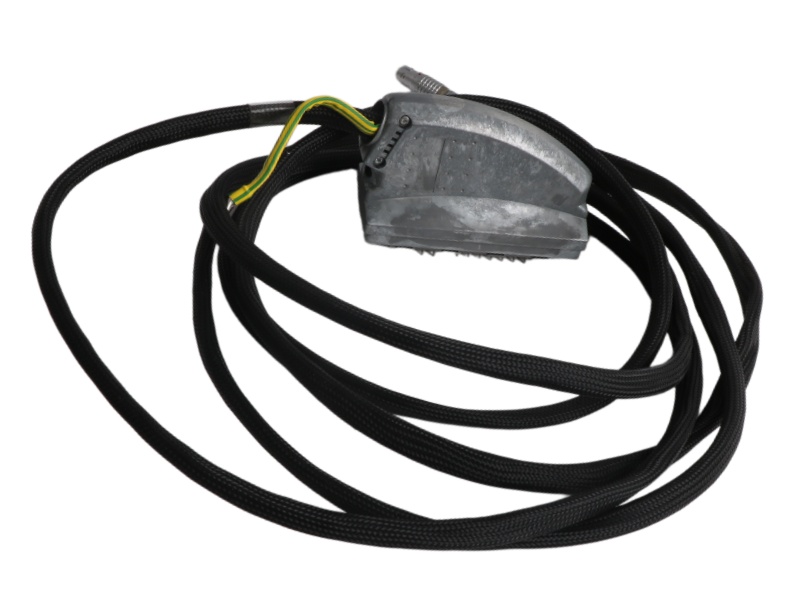

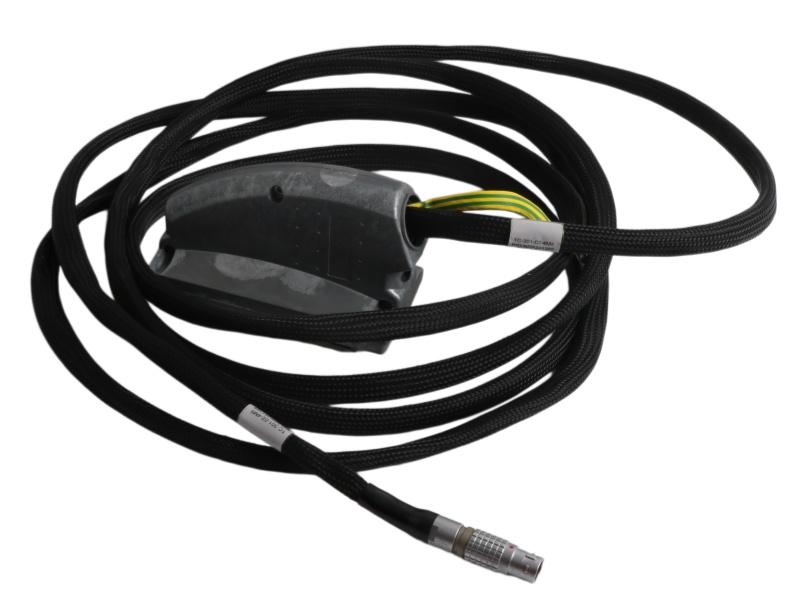

TC-205-02-8M5 Overview

The DCS module TC-205-02-8M5 ICS Triplex is an 8.5-meter I/O Companion Slot internal cable. It connects output signals from digital or analogue modules to an FTA, featuring 120 conductors and LSZH insulation.

Features and Benefits

Output Connectivity: Designed for digital 24 V/120 Vdc or analogue output modules, connecting signals from module to internal FTA.

Multi-Core Design: Features 120 conductors (24 AWG) for reliable 40-channel signal transmission.

Flexible Termination: Chassis end with two 96-way type 'C' connectors; remote end configured for specific field connections.

Voltage Reference: 0 V connection enables module output voltage measurement when connected to field 0 Volts.

Robust Construction: LSZH insulation with 500 V dc isolation and –40 °C to +85 °C temperature range.

Power Distribution: Supports field power connections via T8290/T8297 units for complete system integration.

FAQ

Q1: What is the primary function of the TC-205-02-8M5 cable?

A1: It is designed for digital 24 V/120 Vdc or analogue output modules, connecting output signals from the module to an internal FTA.

Q2: What is the length and conductor configuration of this cable?

A2: It is an 8.5-meter cable featuring 120 conductors of 24 AWG (0.22 mm²) for 40-channel signal transmission.

Q3: What voltage rating and signal types does this cable support?

A3: It has a 30 V dc voltage rating and supports digital 24 V dc signal types with 500 V dc isolation.

Q4: What is the operating temperature range for this cable?

A4: It operates reliably in temperatures ranging from –40 °C to +85 °C for harsh industrial environments.

Q5: What connector is used at the processor end?

A5: The processor end is fitted with a 96-pin DIN 41612 male connector for secure module interface.
