TC-201-02-12M5 Overview

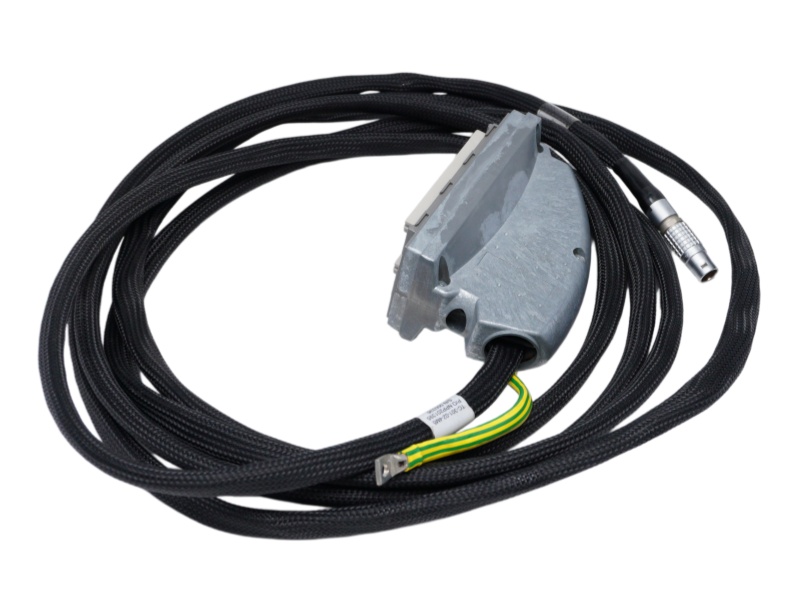

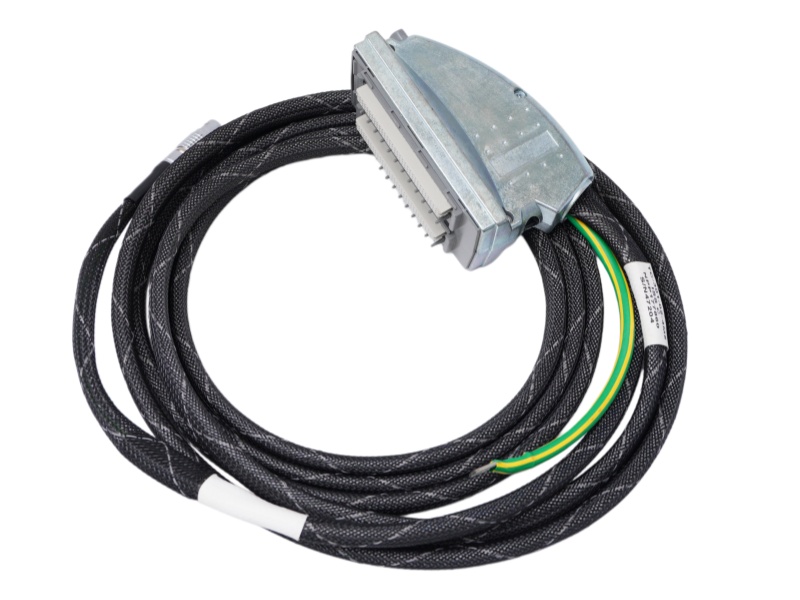

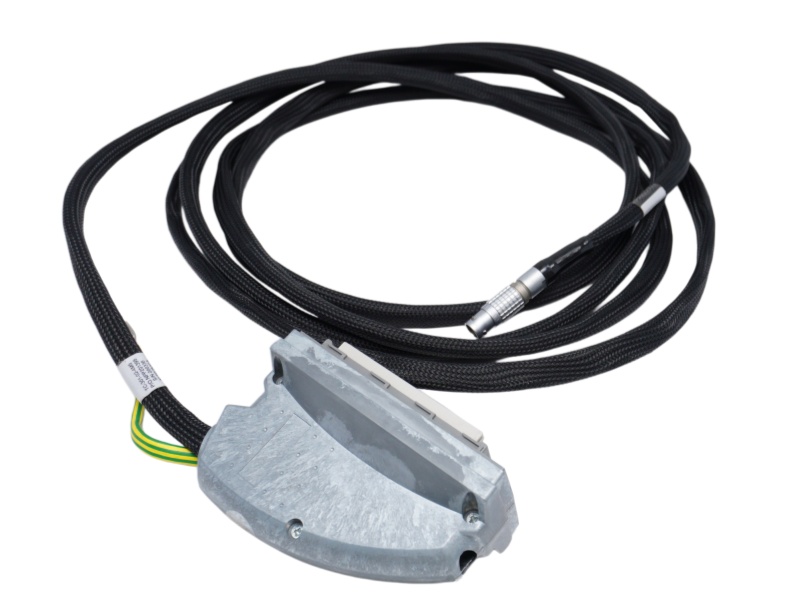

The TC-201-02-12M5 ICS Triplex dcs module is a 12.5-meter I/O Companion Slot cable. It connects 40-channel inputs to an FTA, featuring 120 conductors, 30 Vdc rating, and a 96-pin DIN connector.

High-Resolution Measurement

High-Density Conductors: 120 × 24 AWG (0.22 mm²) ensure accurate 40-channel signal transmission for precise measurements.

Signal Integrity: 500 V dc isolation and 30 V dc rating deliver clean digital 24 V dc signals with minimal interference.

Wide Temperature Range: Reliable operation from –40 °C to +85 °C maintains measurement accuracy in extreme conditions.

Secure Connection: 96-pin DIN 41612 male connector at processor end ensures stable, high-integrity data transfer.

Robust Construction: Multi-core cables with Rilgain sheathing and anti-fray protection preserve signal quality.

Earth Shielding: Sheathed braid and screen drain connections minimize noise for high-resolution measurements.

FAQ

Q1: What is the function of the TC-201-02-12M5 cable?

A1: It is an I/O Companion Slot internal cable designed for 40-channel input connection to an FTA.

Q2: How many conductors does this cable have and what size?

A2: It features 120 conductors of 24 AWG (0.22 mm²) for reliable signal transmission.

Q3: What are the electrical ratings for this cable?

A3: It has a 30 V dc voltage rating, supports digital 24 V dc signals, and provides 500 V dc isolation.

Q4: What is the operating temperature range for this cable?

A4: It operates reliably in temperatures ranging from –40 °C to +85 °C.

Q5: What connector is used at the processor end?

A5: The processor end is fitted with a 96-pin DIN 41612 male connector.
