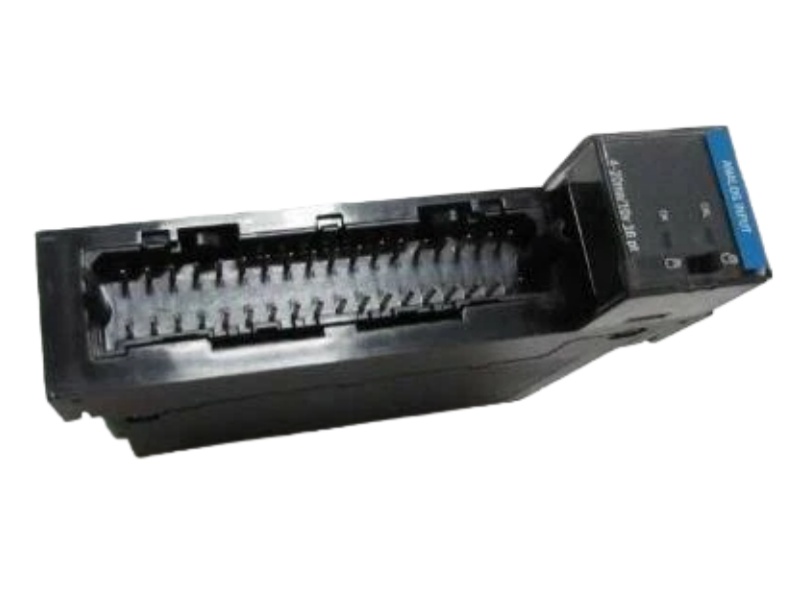

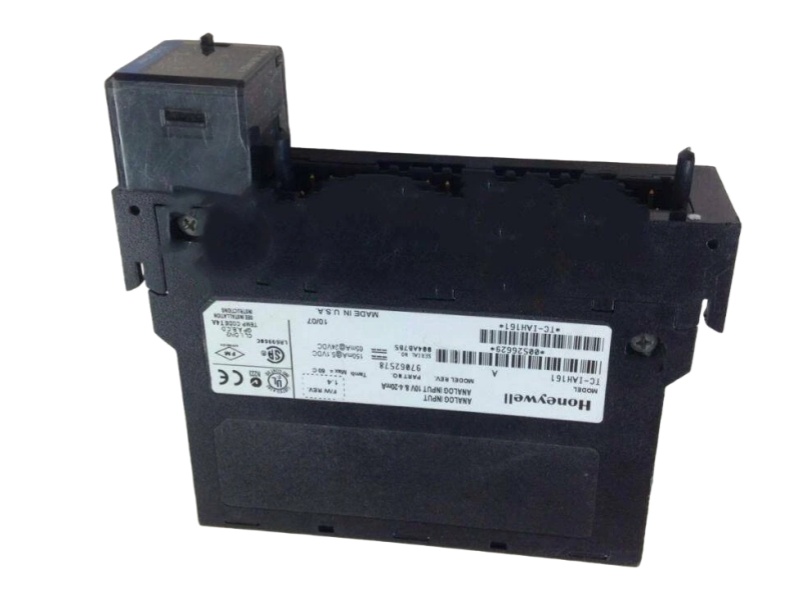

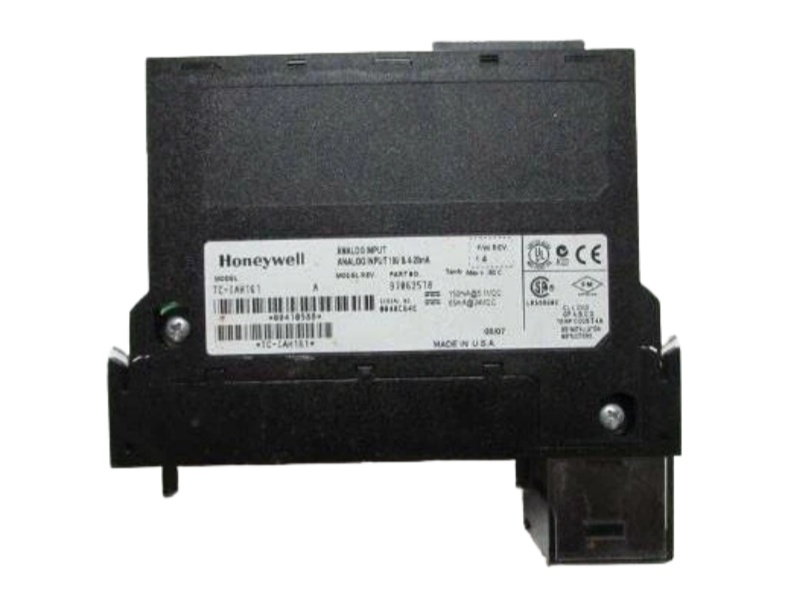

The High Level Analog Input Module Honeywell TC-1AH161 is a high-precision analog input module engineered to deliver reliable performance in demanding industrial automation settings. With 16 high-level input channels, DCS Module TC-1AH161 Honeywell supports both 0–10 VDC and 0–20 mA signals, making it highly versatile for multi-sensor systems. Its exceptional accuracy of ±0.2% ±2LSB ensures trustworthy data conversion essential for precise process control.

Designed for low energy consumption, the Analog Input Module Honeywell TC-1AH161 operates on a 24 VDC power supply with a maximum current draw of 10 mA. It is built to perform consistently across a broad temperature spectrum from -40°C to +85°C. Encased in a robust IP67-rated housing, this module offers outstanding protection against dust and moisture, guaranteeing durability even under challenging environmental conditions.

The compact form factor of the TC-1AH161 Analog Input Module Honeywell, measuring just 120 mm x 95 mm x 35 mm and weighing 0.3 kg, allows for flexible and space-efficient installation. Its high channel density and rapid response capabilities make it ideal for complex automation tasks where both accuracy and reliability are critical.

In summary, the TC-1AH161 Honeywell High Level Analog Input Module stands out as a robust and efficient solution for high-level analog signal acquisition. It reflects Honeywell’s commitment to quality and innovation, providing users with a dependable module that enhances system integration and operational efficiency in diverse industrial applications.
