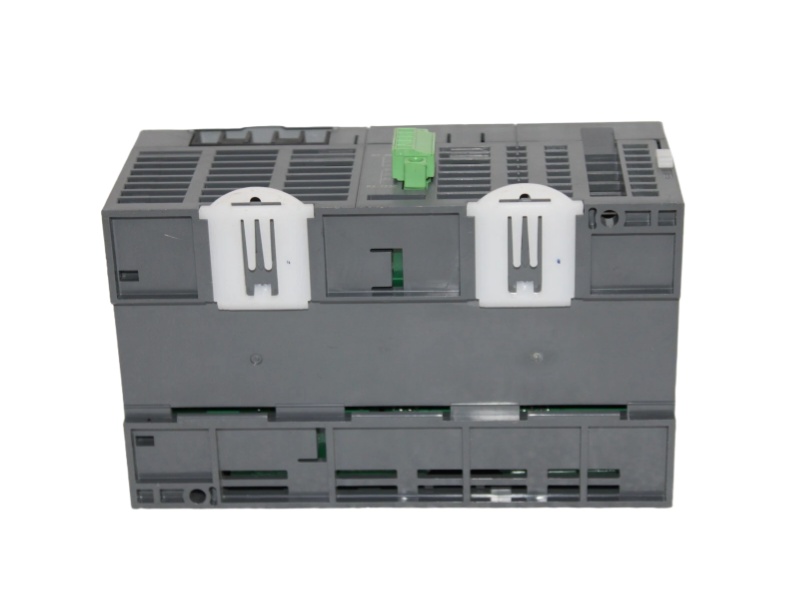

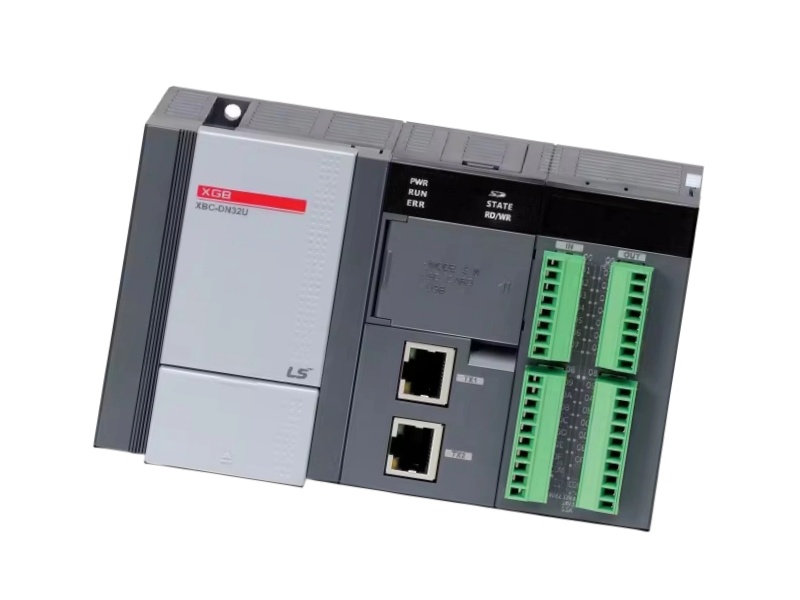

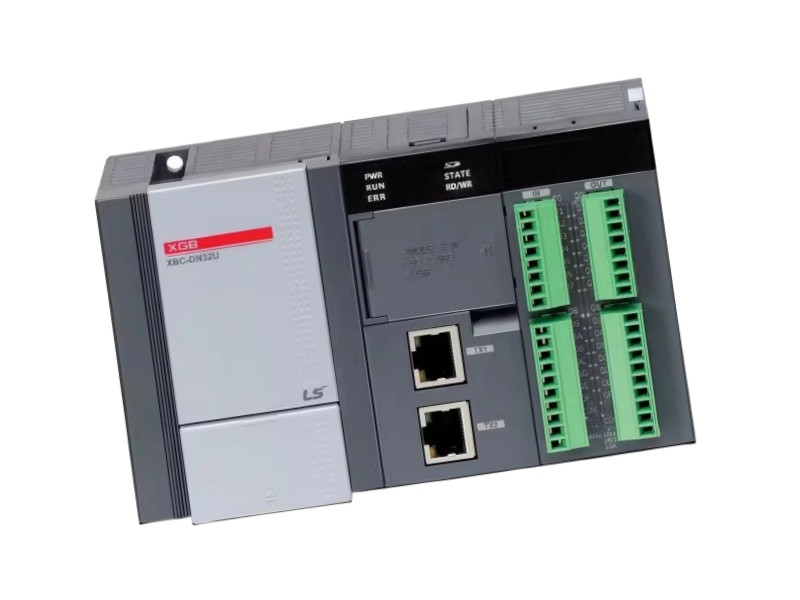

The BASE MODULE MLI-DN32U/DC Honeywell is a base module for the MasterLogic 50 Series PLC, designed to provide reliable and versatile control for low-to-mid-level industrial automation applications. It offers 16 DC digital inputs and 16 DC open-collector sink outputs, along with four analog inputs and four analog outputs, making it suitable for a wide range of control scenarios. Its compact and affordable design allows easy integration into industrial systems while maintaining high performance and flexibility.

Equipped with a 24V DC power supply, the MLI-DN32U/DC Honeywell MasterLogic 50 Series PLC supports various control modes, including cyclic, interrupt, and constant scans. It enables direct mode operation by instruction and features a memory of 384kB, capable of handling up to 32k steps. The module’s digital I/O supports 24V DC inputs and open-collector sink outputs, while the analog I/O accommodates standard voltage (0-10V, 1-5V) and current (0-20mA, 4-20mA) ranges, ensuring compatibility with diverse industrial signals.

Networking is facilitated through FENET and 2SNET communication ports, allowing the Honeywell MLI-DN32U/DC Base Module to connect seamlessly with other devices and control networks. It also provides scalability, supporting up to seven expansion modules and a total of 256 I/O points, depending on the configuration. Safety and durability are enhanced with photo-coupler insulation, surge absorption via Zener diodes, and a maximum voltage drop of 0.4V per point.

The MLI-DN32U/DC Relay Output Module combines reliable I/O performance with robust protection features, making it ideal for economical automation solutions. Its maximum load current of 0.5A per point, peak inrush current handling, and low COM off-leakage current ensure stable operation in industrial environments. Overall, the CPU unit HONEYWELL MLI-DN32U/DC delivers compact, high-performance control for versatile industrial applications.
