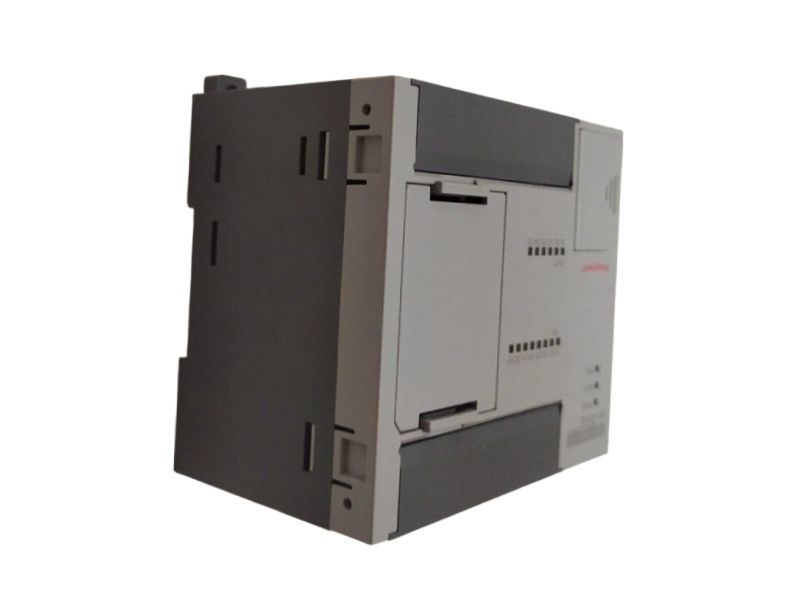

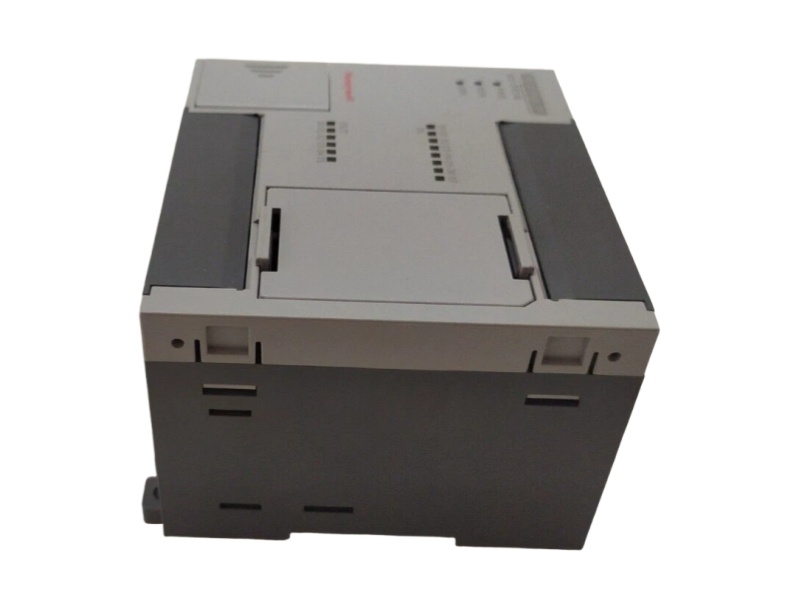

The PLC MODULE MLI-DN20E Honeywell is a versatile DIN rail-mounted interface module designed for industrial automation applications. It operates on a wide AC power supply range of 100-240V and features 12 channels of DC24V input along with 8 channels of open collector output (sink type). The POWER SUPPLY Honeywell MLI-DN20E incorporates reliable photo-coupler insulation and utilizes a 24-point connector for secure connections.

This compact module weighs 1.3kg and demonstrates excellent electrical characteristics, with an operational voltage range from DC20.4V to 28.8V and a ripple rate of less than 5%. The MLI-DN20E BASE MODULE Honeywell maintains precise performance parameters including an ON voltage of DC19V or higher at 3mA or more, and an OFF voltage of DC6V or less at 1mA or less. The input resistance is specified at 5.6kΩ for most contacts, while contacts 00-03 feature 3.3kΩ resistance.

The MasterLogic 50 programmable logic controllers MLI-DN20E offers robust insulation capabilities, withstanding AC560Vrms for 3 cycles even at altitudes up to 2000 meters. Its rated input voltage is DC24V at 4mA, with contacts 00-03 operating at 7mA. These technical specifications make it particularly suitable for applications requiring reliable signal conditioning and control in demanding industrial environments.

Engineered for durability and precision, the Base Module MLI-DN20E Honeywell represents Honeywell's commitment to providing high-quality automation components. Its combination of multiple I/O channels, wide voltage compatibility, and robust construction makes it an ideal solution for various industrial control and monitoring applications where reliability and performance are essential.
