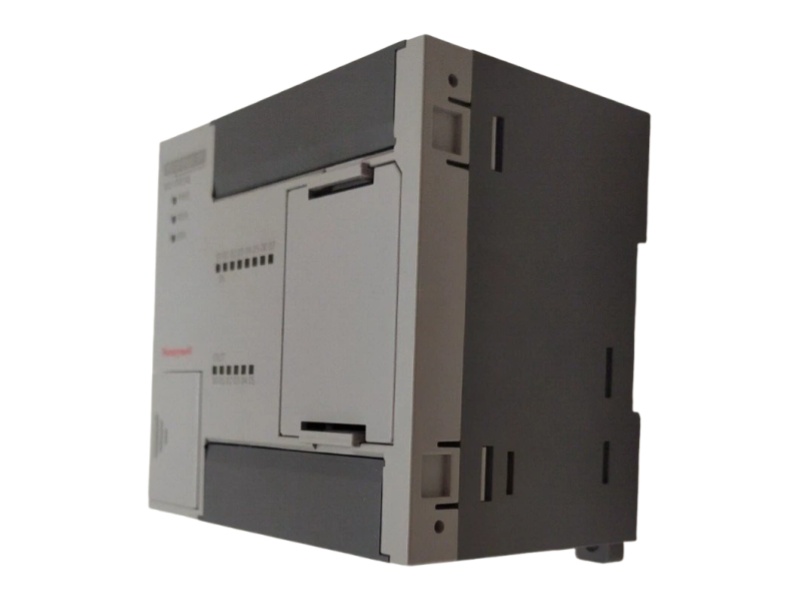

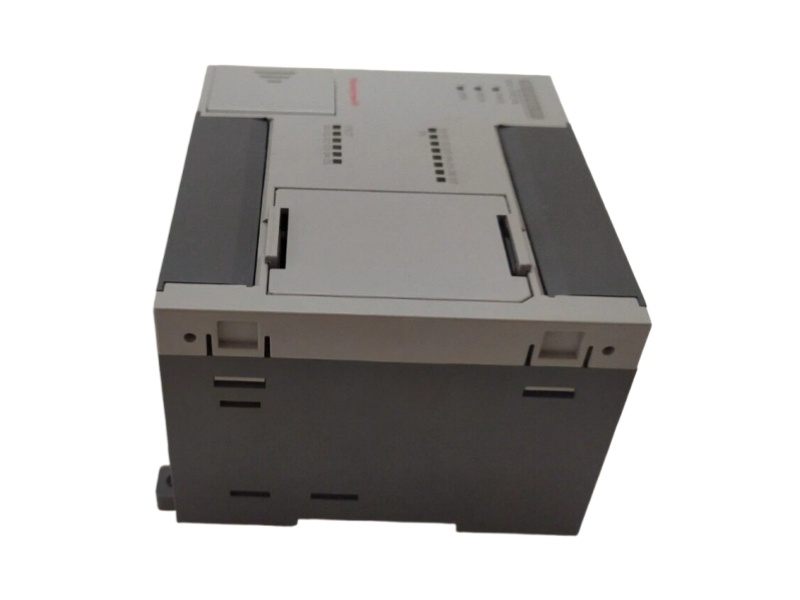

The Honeywell MLI-DN10E BASE MODULE is a versatile DIN rail-mounted interface module designed for industrial automation applications. It features a wide AC power supply range of 100-240V and provides 6 channels of DC24V input alongside 4 channels of open collector output (sink type). The Honeywell MLI-DN10E supports multiple operation modes including repetitive cyclic execution and direct control via instructions, achieving high-speed processing performance of 240ns per step.

With a substantial program capacity of 50kB (4k steps), the Honeywell MLI-DR30E offers flexible programming possibilities for various control scenarios. The MasterLogic Programmable Logic Controller MLI-DN10E Honeywell employs reliable photo-coupler insulation technology and features a rated input voltage of DC24V at 4mA. Its operational voltage range spans from DC20.4V to 28.8V with a ripple rate of less than 5%, ensuring stable performance in diverse electrical environments.

The MLI-DN10E ML50 Compact Logic Controller Honeywell demonstrates precise electrical characteristics with an ON voltage of DC19V or higher at 3mA or more, and an OFF voltage of DC6V or less at 1mA or less. The input resistance is specified at 5.6kΩ for most contacts, while contacts 00-03 feature 3.3kΩ resistance. The module's robust insulation capability withstands AC560Vrms for 3 cycles even at altitudes up to 2000 meters.

Designed for practical industrial use, the Base Module MLI-DN10E Honeywell incorporates a common method supporting 12 points and comes in a compact form factor measuring 24.5x16x13.5cm. Weighing 1.32kg, this module combines reliable signal conditioning capabilities with Honeywell's proven engineering excellence, making it an ideal solution for modern automation control systems requiring both precision and durability.
