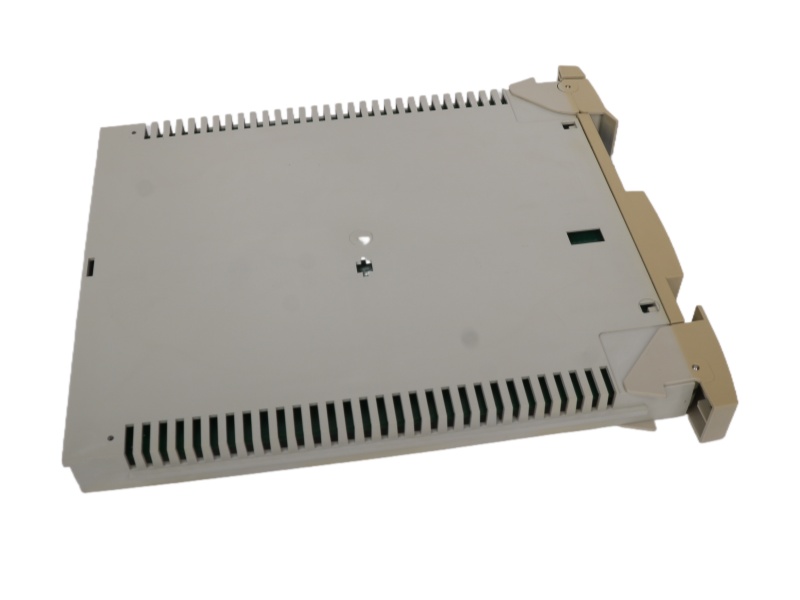

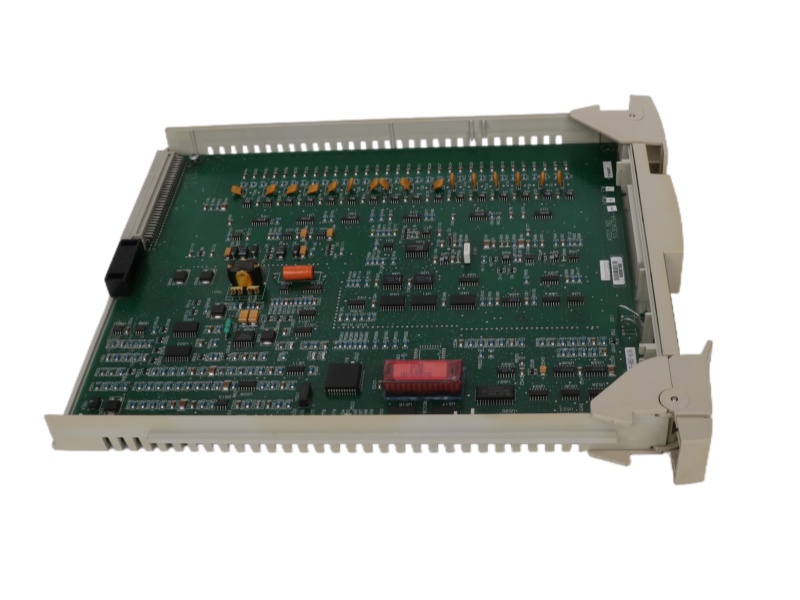

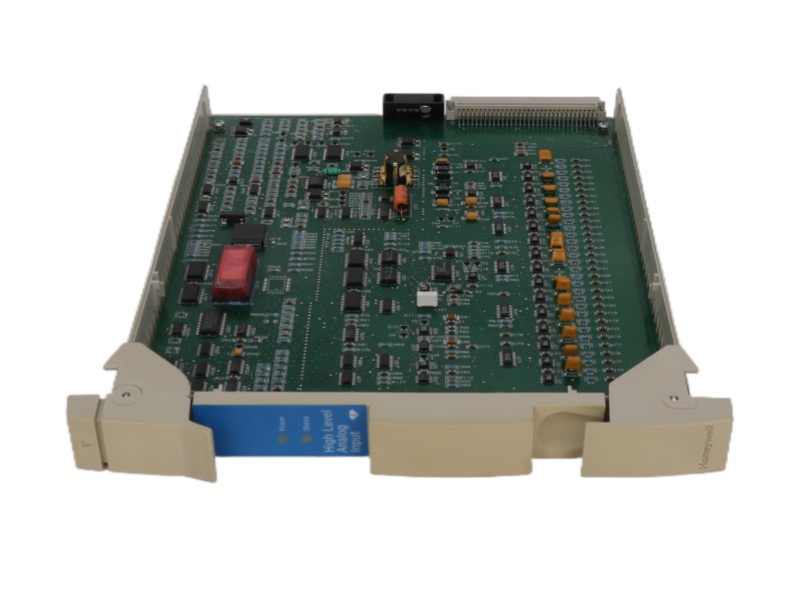

The Honeywell High Level Analog Input Module MC-PAIH03 51304754-176 is a high-performance analog input module designed for precision signal acquisition in industrial automation and process control systems. It supports both 0–20 mA and 4–20 mA current input signals across 16 channels, with a high input impedance of 10 MΩ and an accuracy of ±0.1% of span, ensuring reliable and precise data collection under varying operational conditions.

Engineered for robustness, the 51304754-176 MC-PAIH03 Analog Input Module Honeywell offers excellent stability with temperature drift limited to ±0.01% of span per °C, and PLC Module Honeywell 51304754-176 MC-PAIH03 operates effectively across a wide temperature range from -40 to +70 °C. The module includes strong over-voltage protection up to ±30 V continuous and 500 V AC isolation, enhancing its durability and safety in electrically demanding environments.

With an update rate of 100 ms for all 16 channels, the Analog Input Card Honeywell MC-PAIH03 51304754-176 enables real-time monitoring and control, making it suitable for high-speed applications. Its conformally coated design provides resistance against humidity and contaminants, supporting operation in 5–95% RH non-condensing conditions and ensuring long-term performance in harsh settings.

As a critical component in safety instrumented systems and distributed control architectures such as Honeywell’s C200/C300 platforms, the MC-PAIH03 Analog Input Processor Honeywell delivers exceptional compatibility and integration flexibility. Weighing only 0.58 kg, this module combines compact design with high functionality, making it an ideal choice for modern automation solutions where accuracy, reliability, and environmental adaptability are essential.
