EX-DGM506 Overview

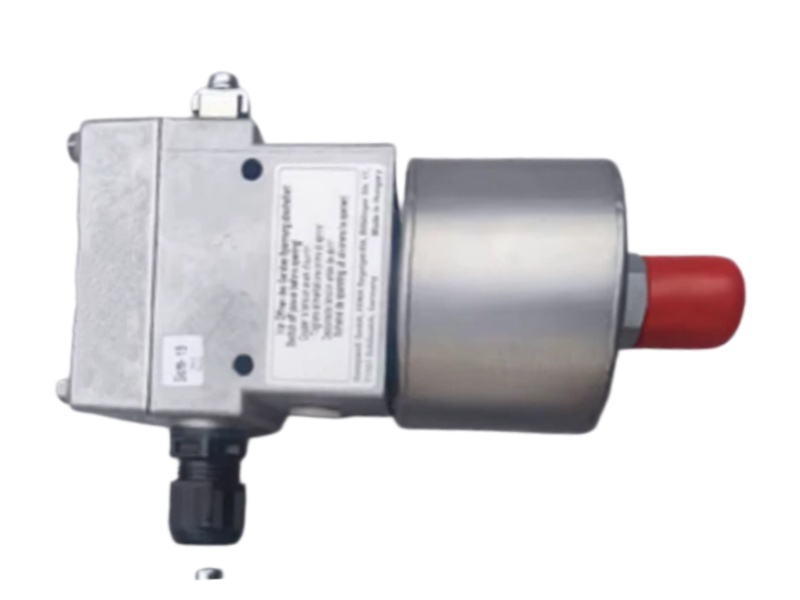

The EX-DGM506 PRESSURE SWITCH Honeywell is an ATEX-certified pressure switch for monitoring overpressure in explosive gas environments. It features a rugged aluminum housing and SPDT switching up to 60 mbar.

Technical Data Summary

Certification: ATEX approved for gas (Ex db eb IIC T6) and dust environments (Ex tb IIIC).

Function: Specifically designed for overpressure monitoring of fuel gases.

Pressure Range: Adjustable setpoint range from 15 to 60 mbar.

Electrical: Fitted with an SPDT microswitch (3A resistive / 2A inductive).

Construction: Features a rugged, seawater-resistant aluminum die-cast enclosure (IP65).

Compliance: Certified to DIN EN 1854 and SIL2 according to IEC 61508.

FAQ

Q1: What is the adjustable pressure range of the EX-DGM506?

A1: It has an adjustable setpoint range of 15 to 60 mbar for overpressure monitoring.

Q2: What ATEX approvals does this pressure switch hold?

A2: It is certified for Gas Ex db eb IIC T6 and Dust Ex tb IIIC IP65 T85°C environments.

Q3: What are the electrical switching capabilities?

A3: It features an SPDT microswitch rated for 250 Vac, with a capacity of 3 A resistive and 2 A inductive.

Q4: What is the maximum allowable pressure for this device?

A4: The maximum pressure rating is 5 bar.

Q5: What materials are used for the housing and sensing element?

A5: It features a rugged, seawater-resistant aluminum die-cast housing (GD Al Si 12) with sensing elements made of 1.4104 and 1.4571 stainless steel.
