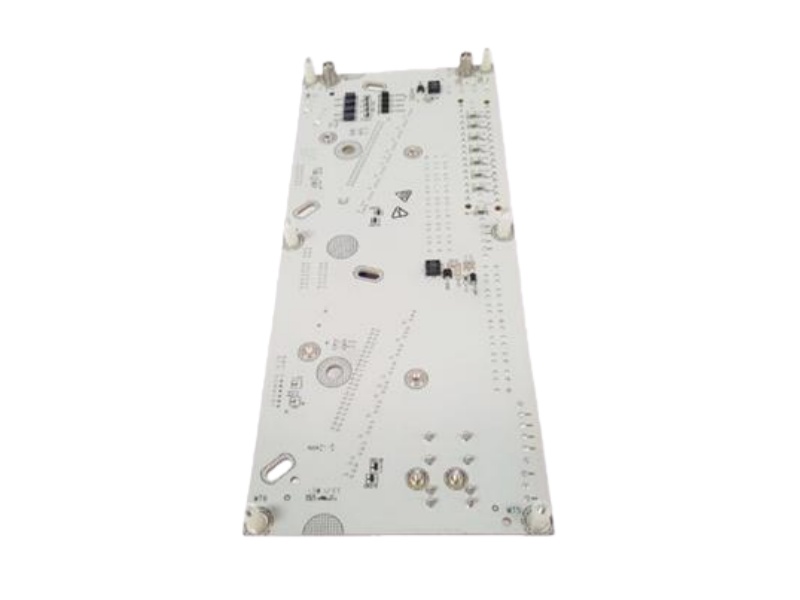

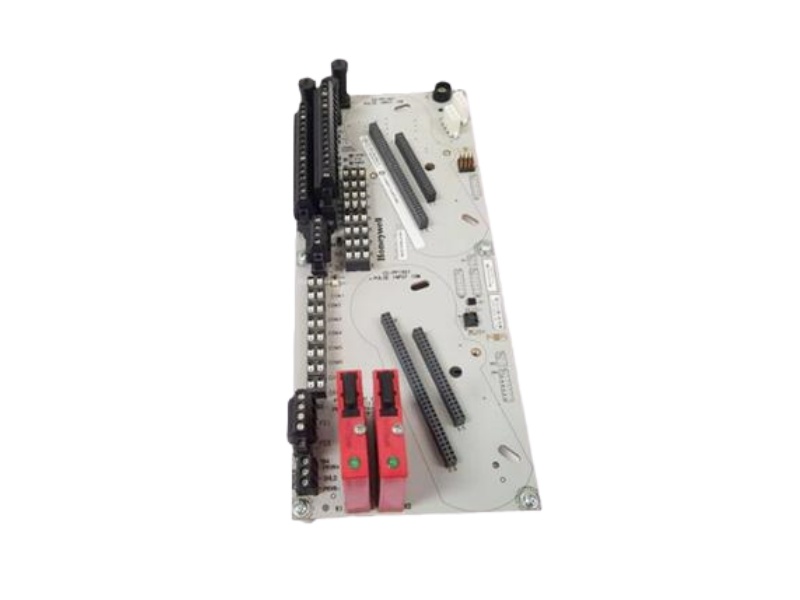

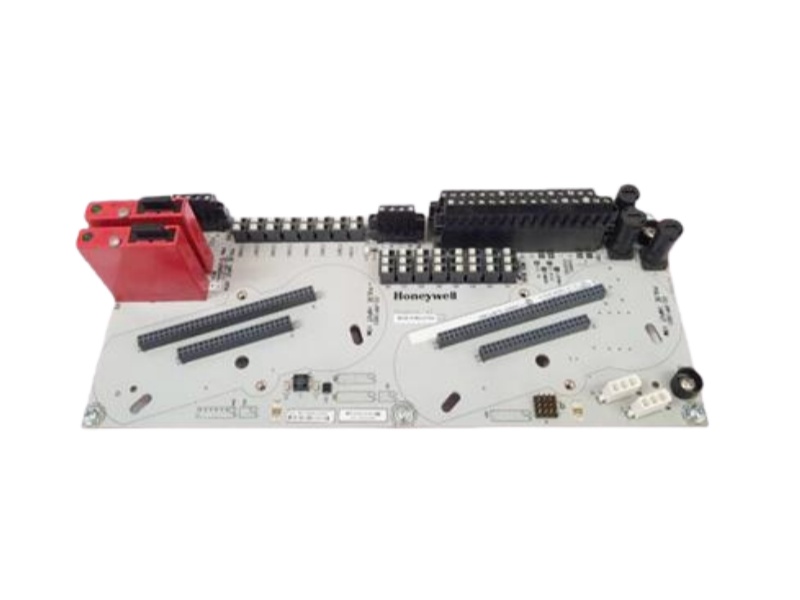

The Honeywell Experion PKS C300 controller CC-TPIX11 serves as a specialized redundant pulse input module within the Experion Series C distributed control system, designed for high-precision acquisition of pulse signals from critical process instrumentation. This CC-TPIX11 Pulse Input Module Honeywell  features eight configurable input channels that can operate as single inputs for maximum frequency response or as four dual-pulse input channels for quadrature encoding applications, providing exceptional flexibility for various measurement scenarios including flow metering, turbine monitoring, and gas measurement systems. Its support for mixed single/dual channel configurations allows simultaneous monitoring of different pulse source types within a single module.

Engineered with advanced signal processing capabilities, the Honeywell C300 Series C  CC-TPIX11 delivers exceptional measurement accuracy with frequency precision of ±0.001% across a broad operating range from 0 to 100 kHz for single-channel mode. The module incorporates high-impedance differential voltage inputs with optical isolation rated at 1000 VDC, ensuring reliable signal acquisition while protecting control system electronics from electrical transients and ground loops. Configurable input voltage trip points and selectable edge detection (rising or falling) enable precise adaptation to various field sensor characteristics and signal types.

The redundant architecture of the I/O Modules CC-TPIX11 Honeywell ensures continuous operation in critical processes where measurement interruption is unacceptable. The module provides two independent output channels for driving external devices such as alarms or indicators, while the flexible power supply configuration supports both internal 24VDC operation and external excitation voltages from 5 to 30VDC. This combination of redundancy and versatile power options enhances system reliability and simplifies integration with existing field instrumentation.

With its comprehensive pulse processing functions including frequency measurement, value accumulation, pulse width analysis, and period measurement, the Pulse Input Module CC-TPIX11 Honeywell offers sophisticated monitoring capabilities for complex industrial applications. The module's channel-isolated design with jumper-selectable bussed or isolated configurations provides additional installation flexibility, making it particularly valuable in industries requiring precise pulse acquisition for flow computation, energy management, and rotational equipment monitoring where measurement accuracy directly impacts process efficiency and economic outcomes.
