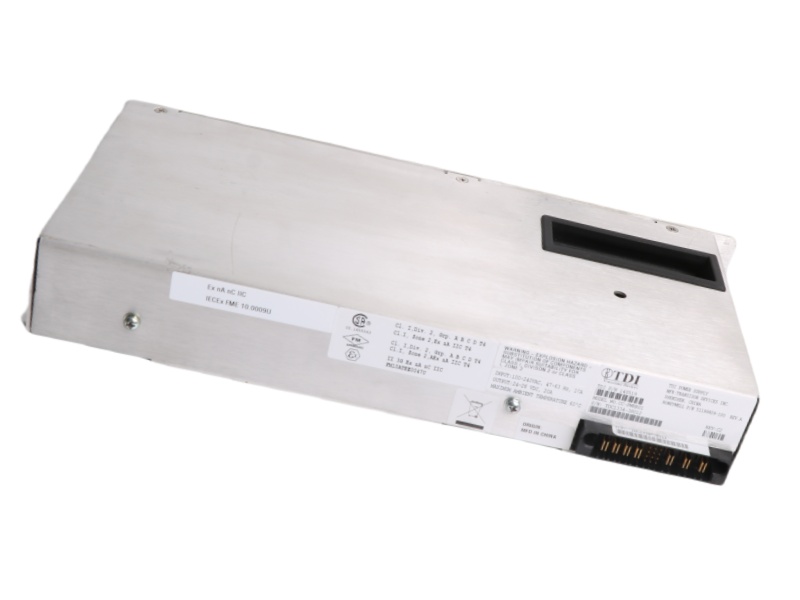

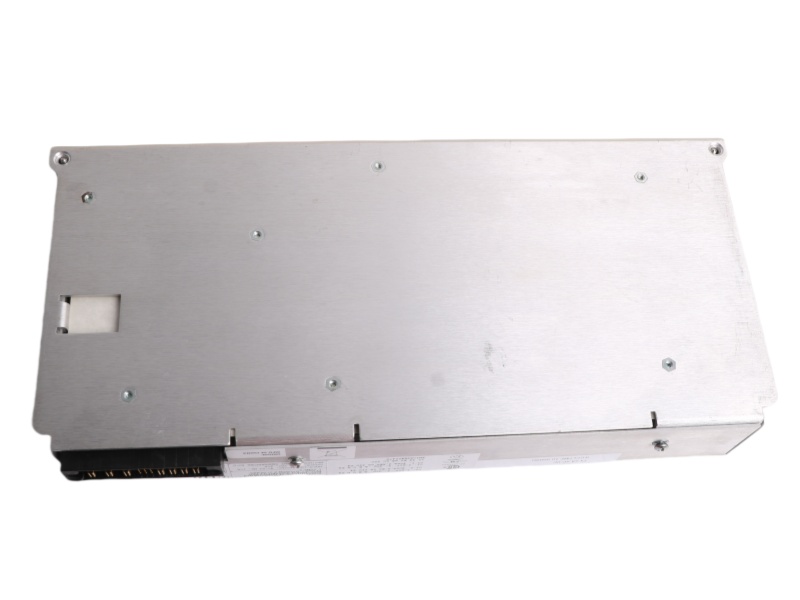

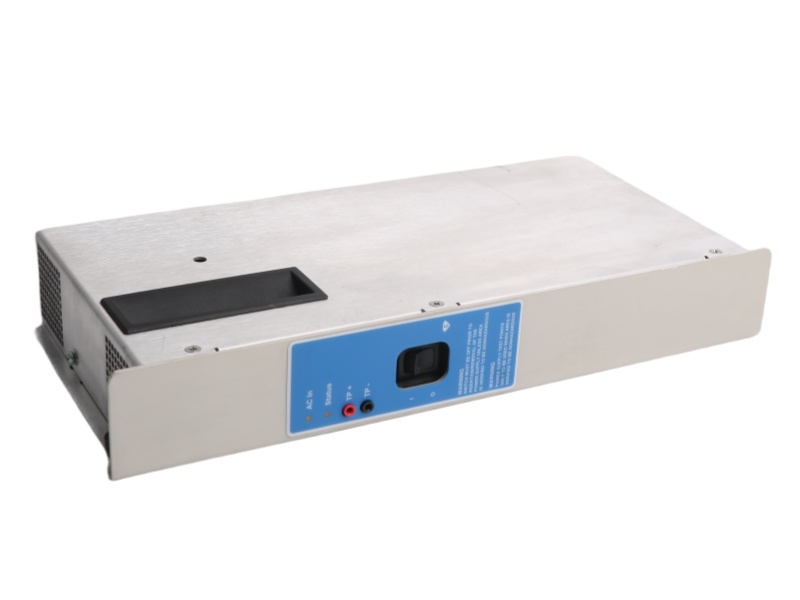

The Honeywell CC-PWRB01 C300 Series Power Supply is a robust Series C Power System designed to provide reliable +24 Vdc power to compatible assemblies within one or more cabinet sides. This C300 Series Power Supply Honeywell CC-PWRB01 is equipped with two 24 Vdc output power supplies, each rated at 20 amperes, ensuring redundancy for uninterrupted operation. Additionally, the system includes a 24V backup assembly featuring rechargeable batteries and a battery charger, which sustains the 24 Vdc output for up to 30 minutes during AC power failures.

Each power supply within the CC-PWRB01 Honeywell Series C Power System can be powered by separate AC sources, such as an AC line or an uninterrupted power supply (UPS). This feature enhances system reliability by allowing continuous operation even if one power source fails. When AC input is present, the output voltage ranges from 25 to 26 Vdc at 20 amperes, while during battery backup mode, the voltage is maintained between 24 and 25 Vdc, also at 20 amperes. This ensures stable power delivery under varying conditions.

The CC-PWRB01 Power System Honeywell comes housed in a durable metal enclosure that can accommodate up to two power supplies along with the backup assembly. At the top of the enclosure, an eight-connector interface manages six 24 Vdc power distribution connectors, one connector for C300 Controller memory battery backup assemblies, and one for power system alarm contacts. This design simplifies installation and maintenance while supporting reliable power management across industrial control systems.

Manufactured in the USA and shipped from Xiamen, China, the Power Supply Module CC-PWRB01 Honeywell weighs just 0.4 kg and measures approximately 19.1 x 18.8 x 6.5 cm. It is ideal for applications requiring redundant power with backup capability, ensuring continuous and efficient operation in critical industrial environments.
