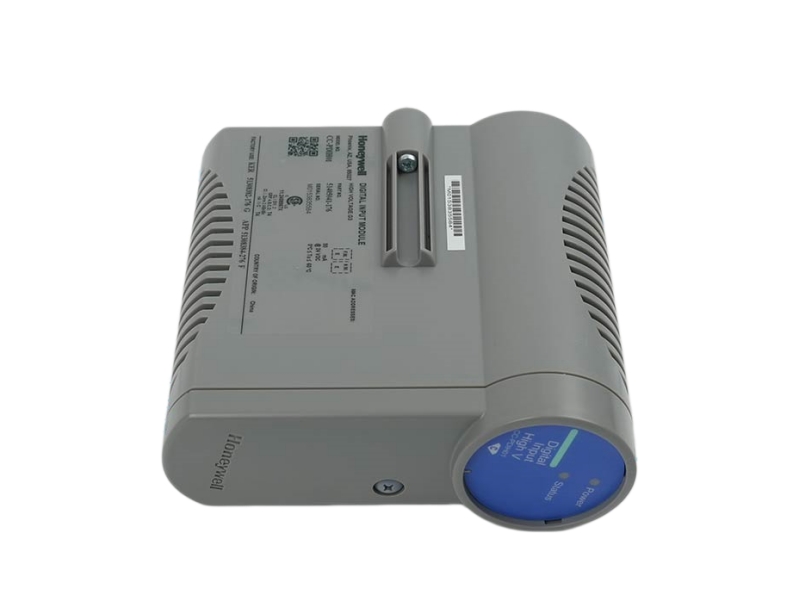

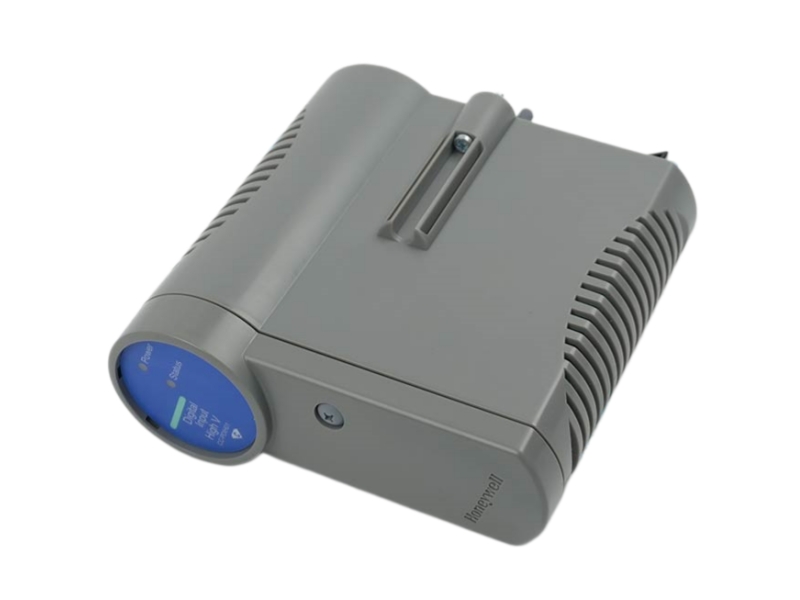

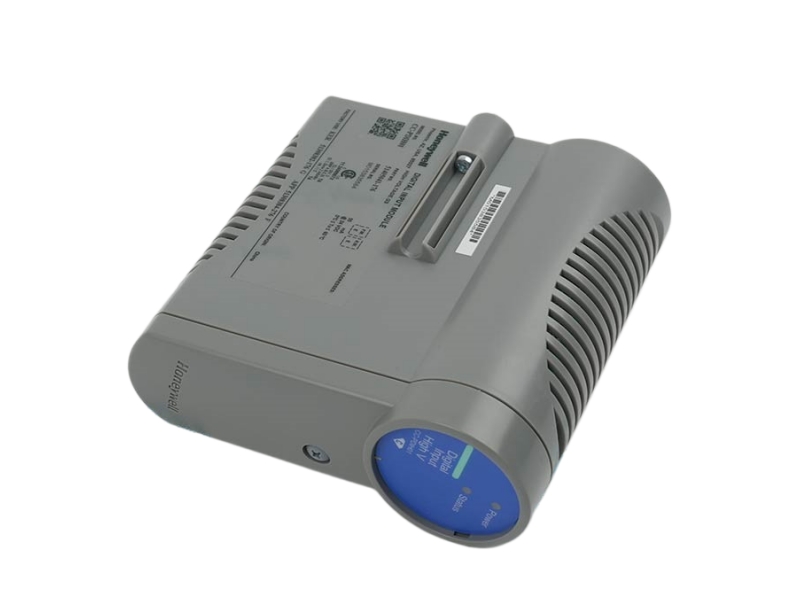

Honeywell CC-PDIH01 51405041-176 Digital Input High Voltage

Inquiry now

CC-PDIH01 51405041-176 Product datasheet

Model number	CC-PDIH01 51405041-176
Manufacture	Honeywell
System	PLC
Condition	Brand New
Country of Origin	USA
HS Code	8537101190
After-Sales Support	12-months

CC-PDIH01 51405041-176 Overview

CC-PDIH01 51405041-176 is a Honeywell digital input module designed for high-voltage discrete signal acquisition, supporting reliable operation with extensive diagnostics, galvanic isolation, and optional redundancy for industrial control systems.

Technical Data Summary

Designed for high-voltage digital input signal acquisition in Honeywell Series C control systems.

Supports discrete inputs such as 120VAC, 125VDC, and up to 250VAC signals.

Utilizes a common IOM with different IOTA configurations for flexible deployment.

Includes extensive internal diagnostics to ensure data accuracy and integrity.

Provides galvanic isolation to enhance electrical safety and system reliability.

Supports optional redundancy and configurable input direction (direct/reverse) for versatile industrial applications.

FAQ
Q1: What is CC-PDIH01 51405041-176 used for?
A1: It is used as a high-voltage digital input module for accepting discrete signals in industrial control systems.

Q2: What input voltage ranges does it support?
A2: It supports 120VAC, 125VDC, and up to 250VAC discrete input signals depending on configuration.

Q3: Does it provide electrical protection features?
A3: Yes, it includes galvanic isolation to enhance safety and protect system components.

Q4: Can it support redundancy in operation?
A4: Yes, optional redundancy is available, except for certain configurations like CC-TDI151.

Q5: What diagnostic capabilities does it offer?
A5: It features extensive internal diagnostics to ensure data integrity and reliable operation.
