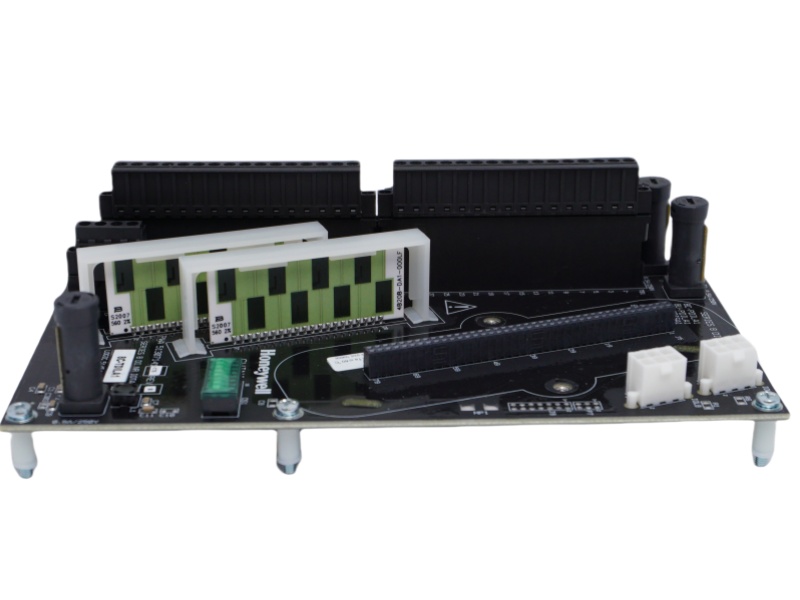

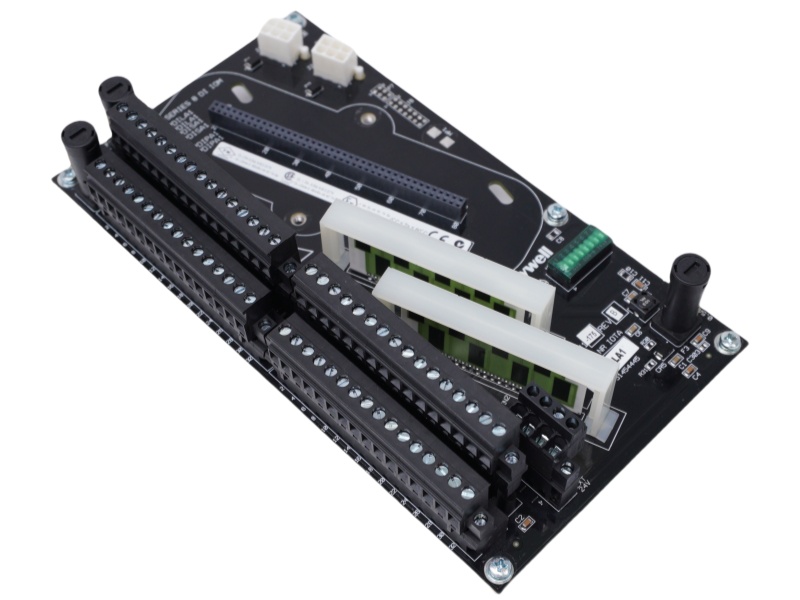

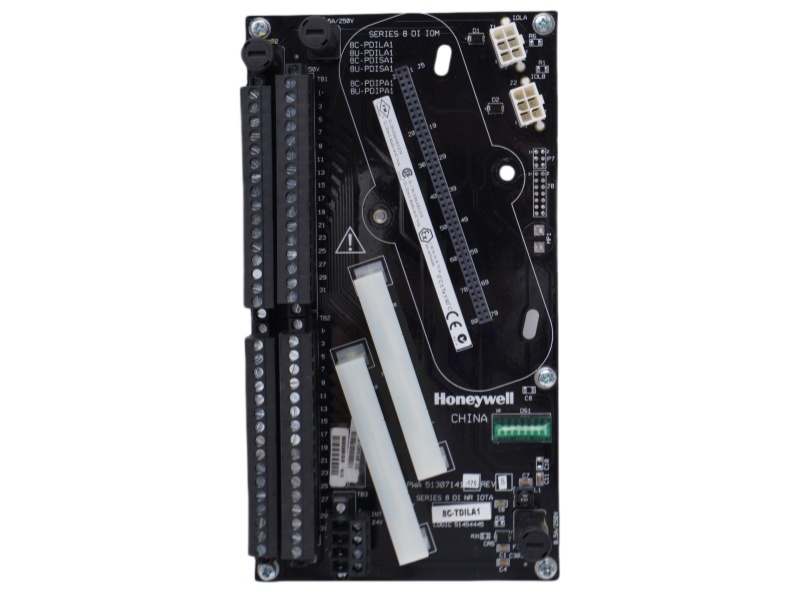

Honeywell 8C-TDILA1 51307141-175 Input Module

Honeywell 8C-TDILA1 51307141-175
Honeywell 8C-TDILA1 51307141-175
Honeywell 8C-TDILA1 51307141-175

8C-TDILA1 51307141-175 Product datasheet

Model number:

8C-TDILA1 51307141-175



Module Type:

Input Module

Manufacture:

HONEYWELL



Condition:

Brand New

Range of Product:

Series 8



Lead time:

In Stock

Weight:

0.4 kg



HS CODE:

8537101190

Dimension:

22x12x6.5cm



MOQ:

1

Product Origin:

USA



System:

DCS

Discontinued on:

active



Communication Service:

Ethernet router



8C-TDILA1 51307141-175 Functional Description


The Input Module 8C-TDILA1 51307141-175 Honeywell is a high-performance digital input module designed as part of Honeywell’s advanced Series 8 family. This module integrates seamlessly with Experion systems, offering exceptional efficiency with a compact footprint. Thanks to its innovative Series 8 architecture, it provides enhanced heat management, allowing a significant reduction in overall size without compromising performance. This makes the 8C-TDILA1 51307141-175 Honeywell PDF ideal for dense cabinet installations where both space optimization and thermal control are essential.



A standout feature of the Honeywell 8C-TDILA1 Digital Input Module is its availability with a conformal coated option. This protective coating shields sensitive electronic circuitry against moisture, dust, harsh chemicals, and extreme temperatures. The coated version is highly recommended for operations in demanding industrial environments, where additional durability and longevity are crucial. Combined with the Series 8’s tilted design for effective heat dispersion and vertical mounting that simplifies wiring, the module ensures reliable operation and easy maintenance access.



This module also integrates multiple functions into a single, streamlined solution. The I/O Termination Assembly 51307141-175 8C-TDILA1 connects directly to the IOTA, which handles on-board termination of process signals, power distribution, and signal conditioning. This eliminates the need for extra power supplies and marshalling, reducing installation complexity. Two-level detachable terminals further simplify connecting field wiring, while built-in protection safeguards input and output circuits from shorts, minimizing the need for in-line fuses.



Additionally, the 8C-TDILA1 51307141-175 Digital Input Pulse Accumulation Module supports simple scalability through redundancy. A second IOM can be easily added to the same IOTA to achieve full redundancy without external cabling or control devices. Altogether, this makes the module a powerful, space-saving, and maintenance-friendly choice for critical digital input needs within sophisticated process automation systems.
