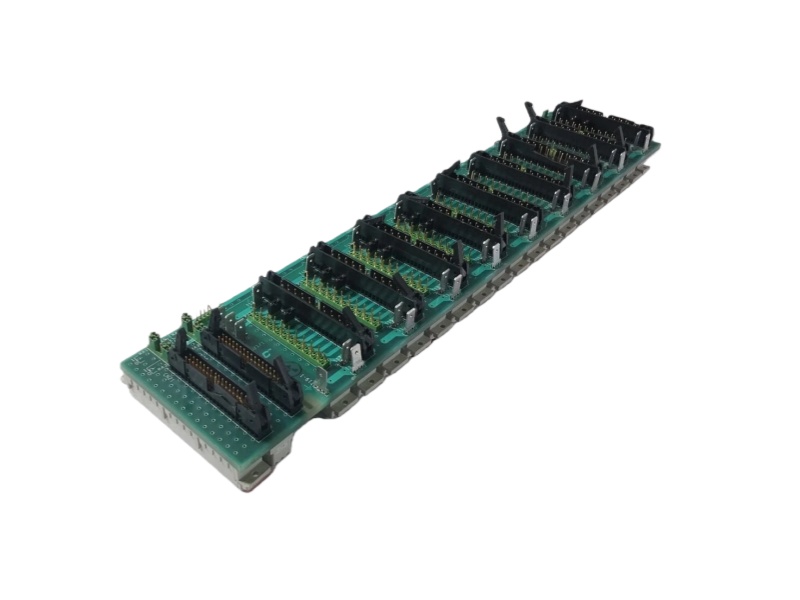

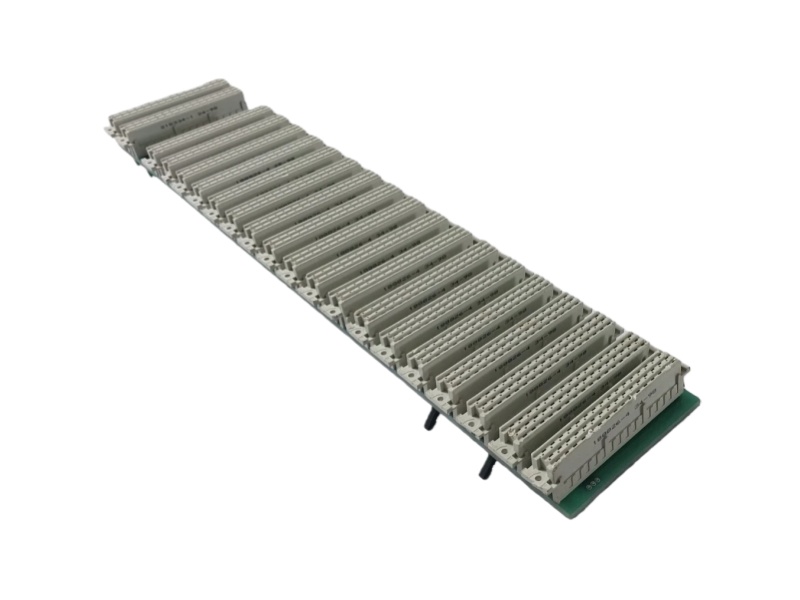

The 10315/1/1 Base Board Honeywell is a specialized redundant I/O backplane module that serves as the critical infrastructure for high-availability safety systems. It provides the physical platform and electrical pathways for installing redundant Safety Manager I/O modules, ensuring fault-tolerant operation. The robust architecture of the 10315/1/1 Honeywell Rack Bgte Redundant Processor Chassis is fundamental to maintaining continuous process safety functions even during a hardware failure.

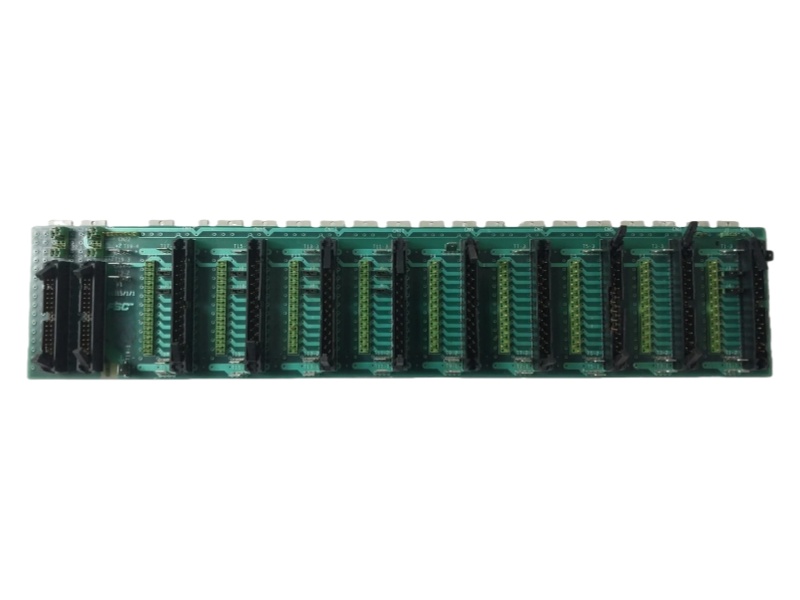

A key feature of the Honeywell 10315/1/1 Base Board PCB is its ten connectors, designated RCN-1 to RCN-10, which are specifically engineered to support redundant module pairs. This design allows for dual-channel operation where two separate modules perform the same function simultaneously. The primary advantage offered by the module is this built-in redundancy, which enables online maintenance and eliminates single points of failure in critical safety loops.

The integration of the Base Board 10315/1/1 Honeywell into the overall system requires specific configuration, including jumper settings at the rear of the backplane to establish proper communication with Horizontal Bus Driver modules. Its compatibility with watchdog repeater modules further enhances system diagnostics and reliability. The precise engineering of the module ensures seamless data exchange between I/O modules and the central safety controller.

Ultimately, the Safety Manager System Honeywell 10315/1/1 delivers unmatched operational resilience for safety instrumented systems. Its redundant architecture provides the foundation for applications where system availability is as crucial as functional safety. The proven performance of the module makes it an indispensable component in protecting personnel, equipment, and the environment in the most demanding industrial settings.
