05701-A-0301 Overview

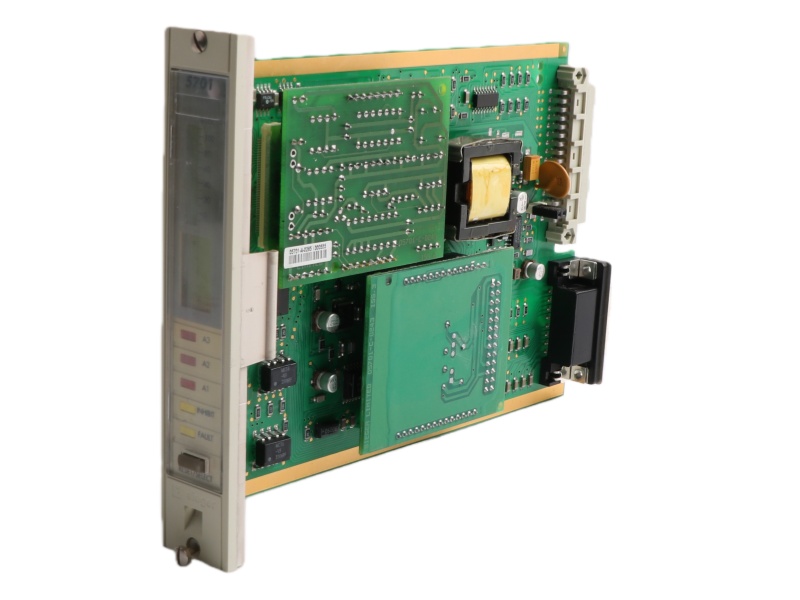

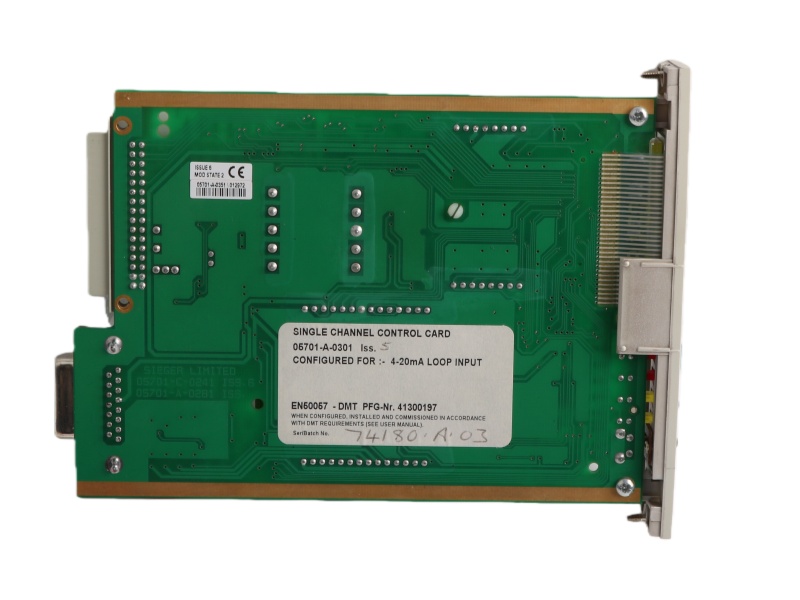

The 05701-A-0301 Single Channel Control Card 4 Honeywell is a 3U modular control system for industrial gas detection, offering up to 16 channels with catalytic or 4-20mA inputs, configurable alarms, and remote communication via an Engineering Card.

Features and Benefits

Scalable Capacity: Provides up to 16 channels in a 19" rack or 8 in a half-rack, offering flexible system sizing.

Wiring Flexibility: Supports both front and rear access for field wiring, simplifying installation and maintenance.

High Availability: Features single-channel mode and hot-swappable cards, minimizing system downtime.

Multi-Alarm Outputs: Generates various alarm types (STEL, TWA) and supports master/zoned configurations for comprehensive safety.

Easy Configuration: Enables simple calibration and setup via a dedicated on-board Engineering Card.

Communication Ready: Optional Modbus protocol support allows for seamless integration into wider control systems.

FAQ

Q1: What is the maximum number of gas detection channels supported by the 05701-A-0301 system?

A1: It supports up to 16 channels in a standard 19-inch rack or 8 channels in a half 19-inch rack.

Q2: What types of sensor inputs are compatible with this system?

A2: It is compatible with both catalytic bridge sensors and 4-20mA analog input sensors.

Q3: Can the system's channel cards be replaced without shutting down the entire system?

A3: Yes, individual Channel Control Cards are removable without disturbing the wiring of other channels.

Q4: How is the system configured and calibrated?

A4: Calibration and basic setup are performed using the dedicated Engineering Card in each rack.

Q5: Does the system offer communication options for system integration?

A5: Yes, it supports optional serial communication, including the Modbus protocol, via modules added to the Engineering Card.
