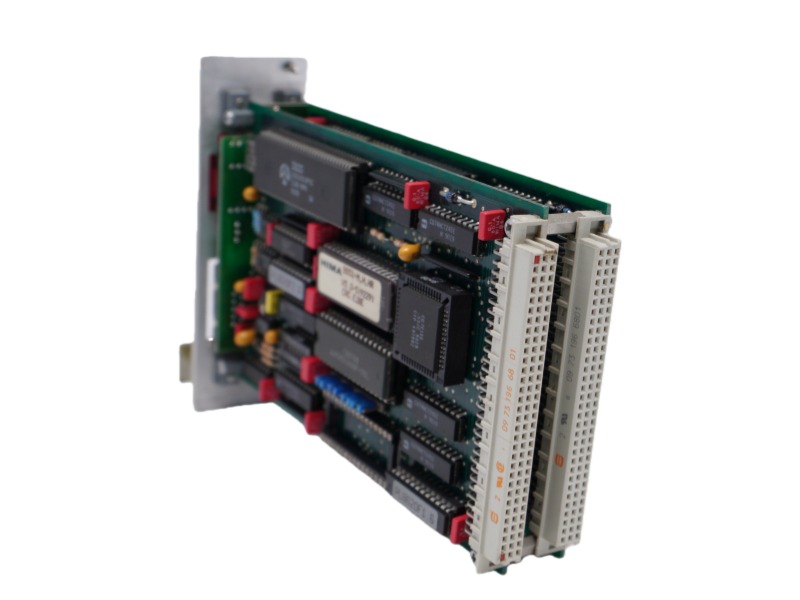

F8620/11 Overview

The CPU Module HIMA F8620/11 is a central processing unit featuring a dual-core RISC processor, 8MB Flash, and logic for up to 1024 I/O points. As a key safety PLC CPU, it reliably executes critical control and safety functions in demanding industrial applications.

Application

• Process Safety Systems (SIS/PES): Serves as the core CPU for executing critical safety logic and shutdown functions.

• High-Capacity Logic Control: Handles complex automation with logic for up to 15,000 function blocks.

• Large-Scale I/O Management: Controls extensive systems supporting up to 1024 digital and analog I/O points.

• Industrial Safety & Machinery Protection: Implements safety interlocks and emergency shutdowns in plants.

• Railway & Transportation Control: Used in vital signaling and train control safety systems.

• Fire & Gas Detection Systems: Processes signals and initiates alarms or mitigation actions.

FAQ

Q1: What is the main function of the HIMA F8620/11 module?

A1: It serves as the Central Processing Unit (CPU) for safety and control systems, executing program instructions and managing I/O operations.

Q2: What is its logic and I/O capacity?

A2: It supports logic for up to 15,000 function blocks and can manage systems with up to 1024 I/O points.

Q3: What type of processor does it use?

A3: It is equipped with a dual-core 32-bit RISC processor for reliable performance.

Q4: What are its typical applications?

A4: It is typically applied in critical safety systems such as Process Safety (SIS), emergency shutdown (ESD), and railway signaling.

Q5: What are its key power specifications?

A5: It operates on a 24V DC power supply with a typical power consumption of 9W.
