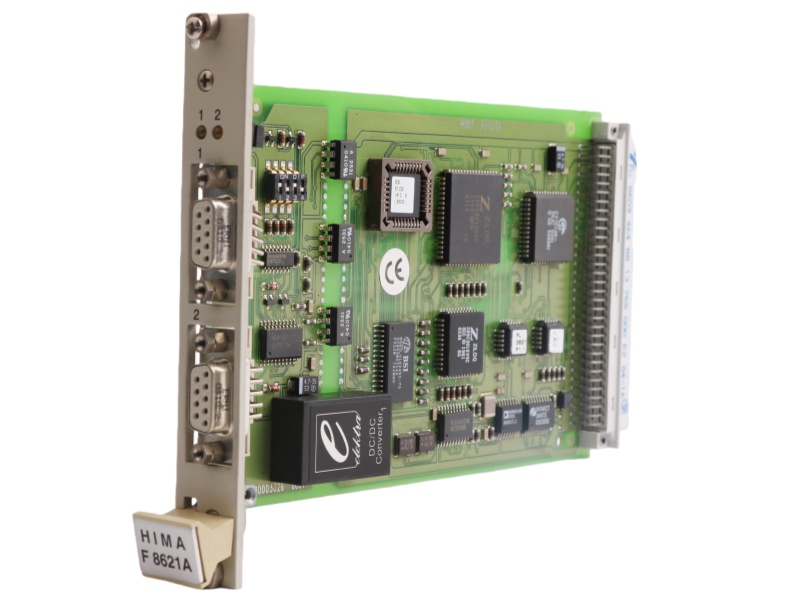

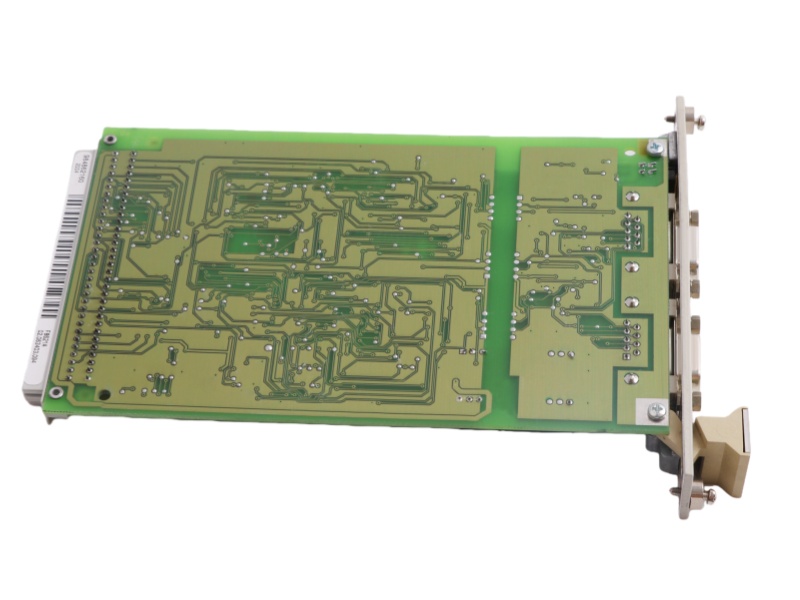

F8621A Overview

F8621A HIMA CPU Module is a CPU module with HD 64180 microprocessor (10 MHz), 384 KB memory, dual RS 485 interfaces and dual-port RAM for fast access.

Application

• Industrial Control Systems: Serves as core CPU for high-reliability industrial automation setups.

• Dual-Module Communication: Enables fast data exchange via dual-port RAM with a second central module.

• Multi-Rate Data Transmission: Supports RS 485 - based communication with configurable baud rates.

• Power-Failure Resilience: Battery-buffered RAM ensures data retention during power outages.

• Compact Industrial Installations: Fits 4 TE spaces for space-constrained control cabinet deployments.

• Isolated Data Communication: Galvanically isolated RS 485 interfaces for stable data transfer in harsh environments.

FAQ

Q1: What core microprocessor does HIMA F8621A use?

A1: It is equipped with the HD 64180 microprocessor running at 10 MHz.

Q2: How much static memory does this module have?

A2: It has 384 kbyte of static memory including CMOS-RAM and EPROM.

Q3: What communication interfaces does F8621A provide?

A3: It has 2 galvanically isolated half-duplex RS 485 interfaces.

Q4: Does it support fast data access with other modules?

A4: Yes, it has dual-port RAM for fast memory access to a second central module.

Q5: What is the power consumption of HIMA F8621A?

A5: It operates on 5 V DC with a power consumption of 360 mA.
