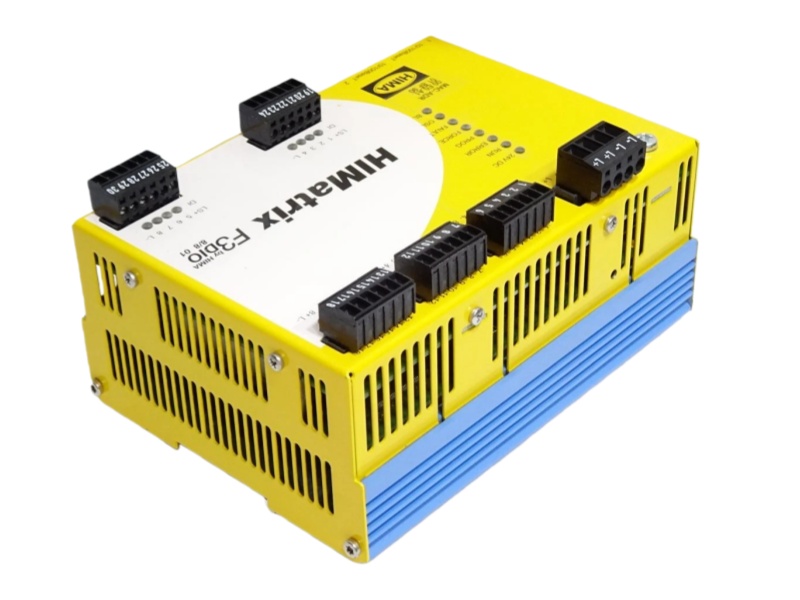

F3DIO16/801 Overview

The Safety-related Remote I/O module HIMAF3DIO16/801 is a SIL 3-certified remote I/O module with 16 inputs, 8 dual-channel outputs, and 2 pulsed outputs, designed for safeethernet integration with HIMax/HIMatrix controllers.

Features and Benefits of HIMA F8627X

• Safety-Critical Communication: All I/O data is transmitted via safeethernet for integrity.

• Diagnostic Input Status: Each input has a dedicated LED indicating its state (HIGH/LOW).

• Direct Contact Interface: Accepts simple mechanical contacts without external power.

• Internal Power Supply: Provides a short-circuit-proof 24V source (LS+) to feed connected contacts.

• Grouped Power Distribution: The internal power is distributed in groups, supplying 4 contacts each.

• Safe I/O Architecture: Features safety-related digital inputs and outputs for reliable operation.

FAQ

Q1: What is the safety certification of the HIMA F3DIO16/801?

A1: It is certified for SIL 3 (IEC 61508), Category 4, and Performance Level e (PL e).

Q2: How is it connected to a safety controller?

A2: It connects via safeethernet to HIMax or HIMatrix safety controllers.

Q3: What is the I/O configuration of this module?

A3: It provides 16 digital inputs, 8 dual-channel digital outputs, and 2 pulsed outputs.

Q4: What type of devices can be connected to its inputs?

A4: The inputs accept potential-free mechanical contacts, powered by its internal 24V source.

Q5: Can it operate in hazardous areas?

A5: Yes, it is suitable for mounting in Zone 2 hazardous (Ex) areas.
