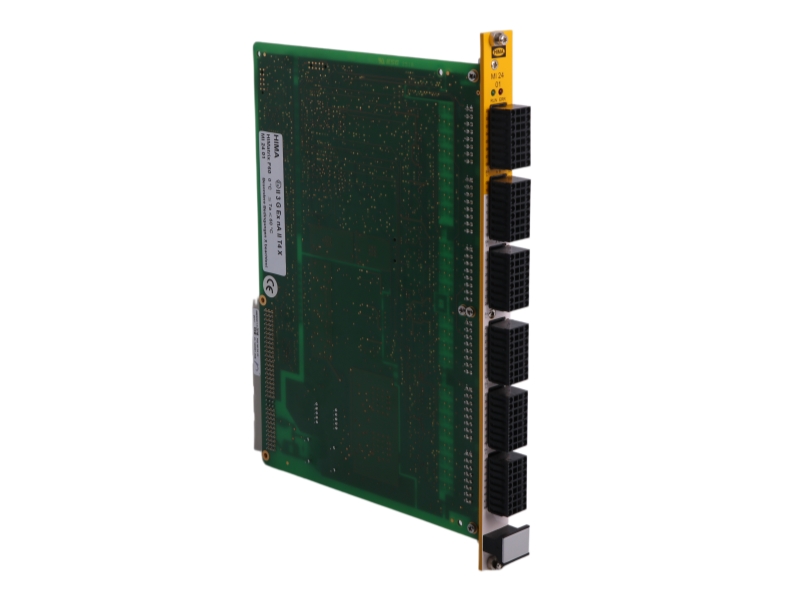

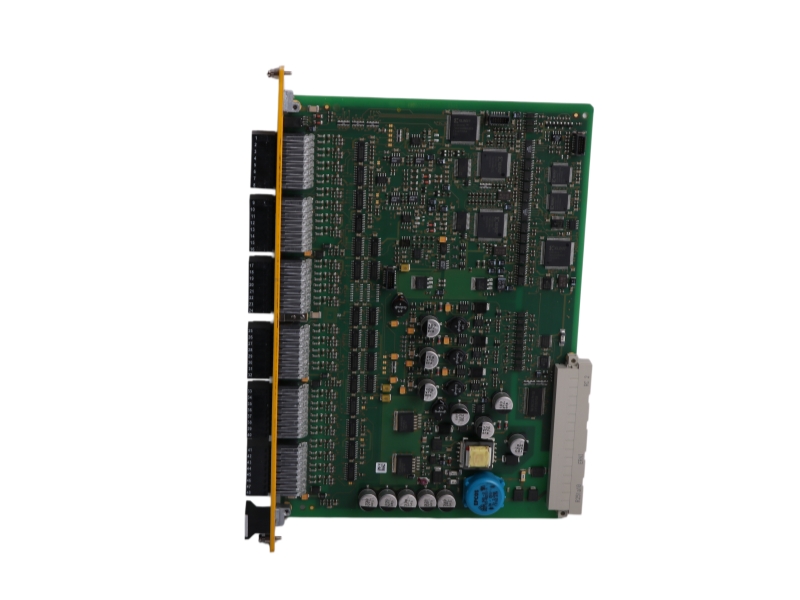

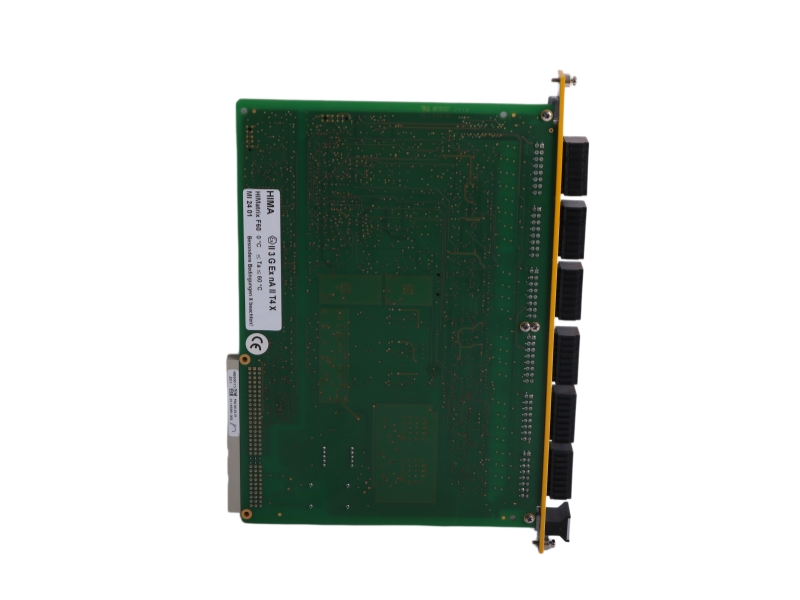

HIMA F60MI2401 is a versatile mixed input module for HIMatrix F60 systems, enabling reliable acquisition of analog and digital signals with fast response and SIL-compliant performance in safety-critical applications.

Specifications

General

• Manufacturer: HIMA
• Model: F60MI2401
• Type: Mixed Input Module (Analog + Digital)
• System: HIMatrix F60 modular safety controller

Input Characteristics

• Channels: 24 inputs (configurable)
• Signal Types:
  • 4–20 mA analog inputs
  • NAMUR digital/sensor inputs
• Configuration: Software-selectable per channel

Electrical

• Rated Voltage: 24 V DC
• Power Consumption: ~10 W

Functional Features

• High-speed signal processing for safety loops
• Flexible parameterization (NO/NC, delay settings)
• Integrated diagnostics and fault monitoring

Safety & Performance

• Designed for safety-related applications (SIL-based systems)
• Supports fail-safe signal acquisition

Environmental

• Operating Temperature: approx. -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5–95% non-condensing

Mechanical

• Mounting: HIMatrix F60 rack (I/O slot)
• Industrial rugged design for harsh environments

Application

• Field Signal Acquisition
  Collects analog and NAMUR signals from sensors and transmitters in safety systems.
• Process Industry Monitoring
  Widely used in chemical, oil & gas, and refining plants for real-time data input.
• Fire & Gas Detection Systems
  Interfaces with detectors to provide fast and reliable signal processing.
• Machine Safety Integration
  Supports safe input handling in automated machinery and production lines.
• Energy & Infrastructure Systems
  Enables accurate monitoring of turbines, pipelines, and critical utilities.
