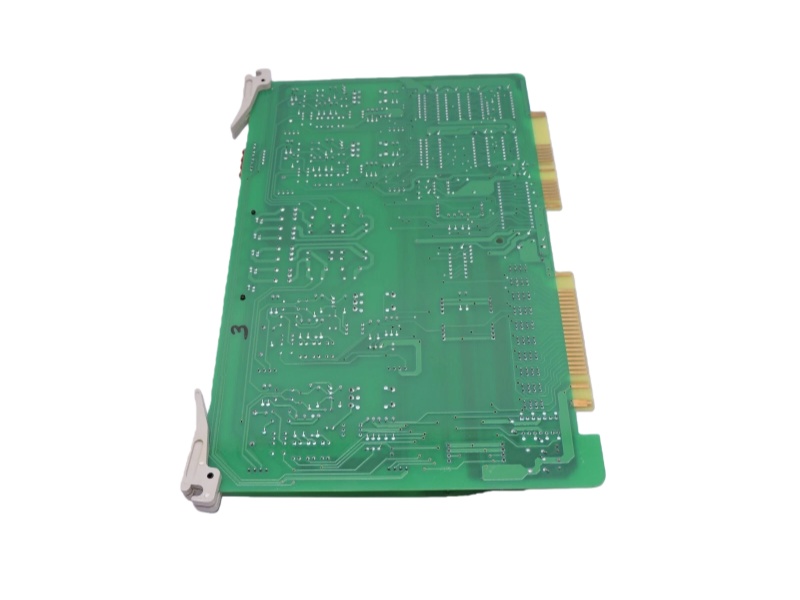

The A2TKUA TRUNK UNIT HANSHIN is a trunk line interface card designed for marine automatic telephone exchange systems. This printed circuit board provides four central office (CO) line ports, enabling a vessel to connect with external telephone networks. A key operational feature of the HANSHIN A2TKUA is its configurable jumper system on connectors CON1 to CON4, which must be properly set based on the card's physical position in the chassis to ensure correct system addressing and functionality.

A significant technical advantage of the A2TKUA  Printed Circuit Board HANSHIN is its integrated FAX communication path. This dedicated path is paralleled with the fourth trunk (CO4) on each card and is managed by a FAX monitor function, allowing for reliable facsimile transmission over satellite or radio links. This integrated design eliminates the need for a separate fax module, simplifying the overall system architecture.

The installation and configuration of the AUTO TELEXCHANGER PCB BOARD HANSHIN A2TKUA  are straightforward, guided by clear labeling for jumper settings. For fax connectivity, a standard 2-conductor cable is connected to the dedicated RJ11 jack on the board. This user-friendly design simplifies setup and reduces potential installation errors during commissioning or maintenance.

The robust construction of the PCB CARD A2TKUA HANSHIN, evidenced by its "94V-0" rated PCB, ensures durability in the harsh marine environment. By consolidating multiple trunk lines and a fax path into a single, reliable unit, the Hanshin Electronics Auto Telexchanger Pcb  A2TKUA  offers a compact and highly efficient solution for managing a vessel's critical external communications, making it a vital component for modern maritime telephony.
