IS220PIOAH1A Product datasheet
|
Model number: |
IS220PIOAH1A |
|
Module Type： |
Interface I/O Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIE |
|
Lead time： |
In Stock |
|
Weight: |
0.38 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x13x8.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PIOAH1A Functional Description
The Mark V Board IS220PIOAH1A General Electric is a specialized ARCNET I/O interface module within the Mark VIe Series, supporting excitation control in industrial automation systems. Commonly used in both the Mark VIe and legacy Mark VI turbine control platforms, the module reflects GE’s continuation of Speedtronic control technology, originally developed with the Mark I in 1969.
This IS220PIOAH1AInterface I/O Module mounts directly to the JPDV terminal board via a 37-pin connector, offering a secure and compact installation. Dual RJ-45 Ethernet ports allow reliable communication, supporting simplex or redundant configurations. The module’s soft-start power management protects the 28V system, while status LEDs provide real-time diagnostics during operation.
Functionally, the General Electric Communication Bridge Module IS220PIOAH1A integrates a processor with flash memory and RAM, enabling startup self-checks and ID verification between the pack and terminal board. It also features an ARCNET controller chip and CPLD logic for seamless excitation control data handling.
Although the PCB includes an infrared port, it is not used during normal operation, as outlined in the application manual. With robust design and proven performance, the IS220PIOAH1A GE Gas Turbine Control System ensures dependable operation across a wide range of critical control environments. This Interface I/O Module IS220PIOAH1A GE remains a preferred choice for power generation and turbine control applications requiring high reliability.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IS200TRLYH1BHH |
GE |
IS220YDOAS1AJ |
GE |
IS200VAICH1DAA |
|
GE |
IS420UCSBH3A |
GE |
IS200JPDMG1ADC |
GE |
IS200MVRBH1ACC |
|
GE |
IS200TRLYH1BED |
GE |
IS200SRLYH2AAA |
GE |
IS220PAOCH1BE |
|
GE |
IS200TRLYH1BGG |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IS200TRLYH1BGE |
GE |
IS200SRLYH2AAA |
GE |

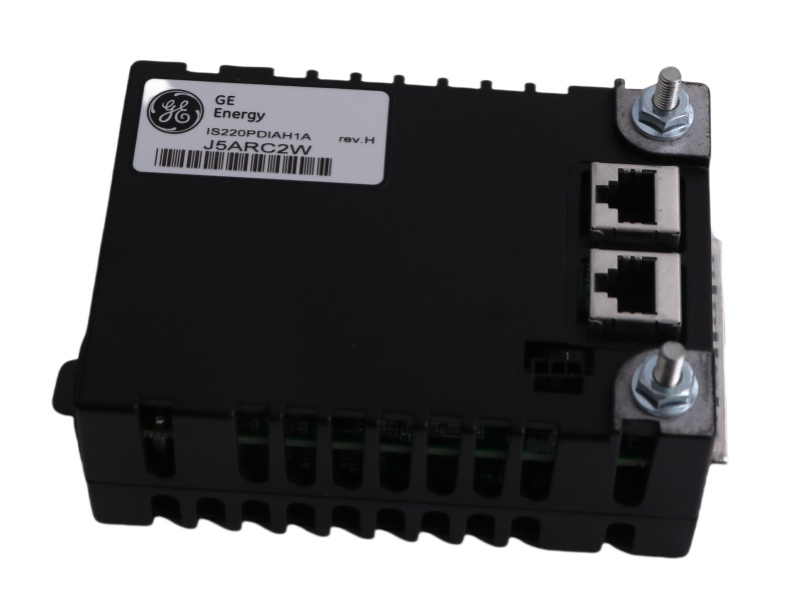

IS220PDIAH1A |
|
GE |
IS200TRLYH1BGF |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IS200TRLYH1BEC |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IS200EXAMG1A |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IS200TREGH1BDB |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS200TREGH1B |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |

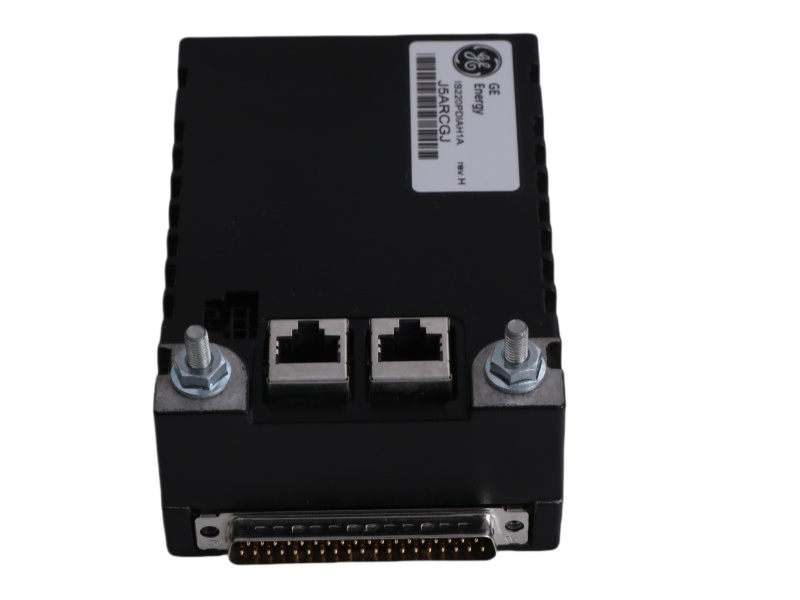

Intelligent I/O Pack for Reliable Power Distribution Monitoring
