IS220PAICH2A Product datasheet

IS220PAICH2A  Functional Description

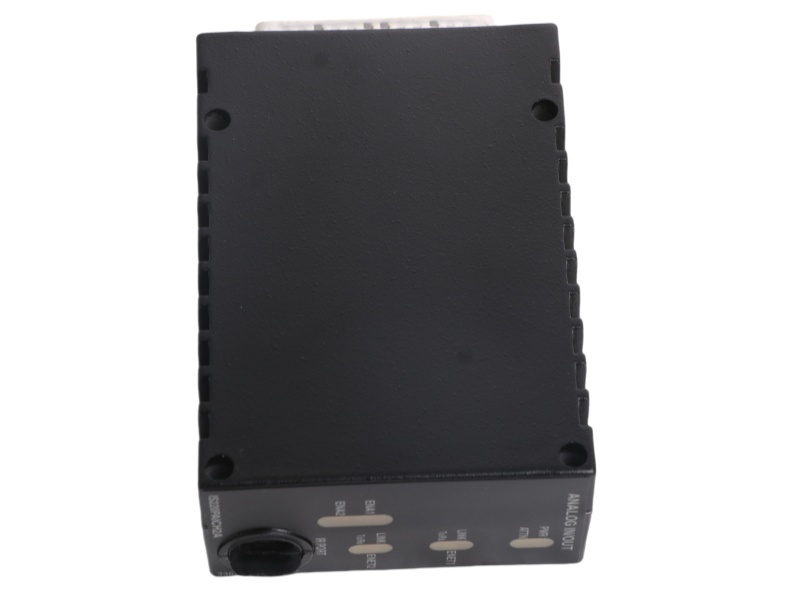

The Analog I/O Module IS220PAICH2A General Electric is a high-performance analog I/O module designed for integration with the Mark VIe and VIeS turbine control systems. It directly mounts onto a terminal board via a DC-37 pin connector, supporting both simplex and TMR-capable configurations. The I/O pack communicates with the controller through dual RJ-45 Ethernet ports and is powered by a three-pin connector. Its robust design and diagnostic LEDs ensure stable, real-time monitoring and control in demanding environments.

Functionally, the IS220PAICH2A Analog Output Module GE serves as a bridge between I/O Ethernet networks and analog terminal boards. It includes a BPPx processor and a dedicated acquisition board, offering ten analog inputs—eight configurable for 5V, 10V, or 4–20 mA signals, and two configurable for 1 mA or 4–20 mA. Additionally, it supports two current loop outputs ranging from 0–20 mA, with the first channel capable of up to 200 mA, making it ideal for applications requiring flexible signal conditioning.

The installation process of the General Electric IS220PAICH2A Analog Input Module is straightforward. The module is secured mechanically via studs and a mounting bracket to ensure stable electrical contact without stressing the connectors. Once mounted, users can connect Ethernet and power cables, benefiting from the module’s built-in soft-start capability that reduces inrush current during power-up. The module can be easily configured using GE’s ToolboxST application.

As part of the advanced Mark VIe control system, the IS220PAICH2A General Electric exemplifies modern industrial design with enhanced performance and flexibility. Its advanced analog processing features and rugged build quality make the General Electric IS220PAICH2A Analog I/O Module a reliable choice for critical turbine and process control applications.
