IS220PAOCH1B Product datasheet
|
Model number: |
IS220PAOCH1B |
|
Module Type： |
Analog Output Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PAOCH1B Functional Description

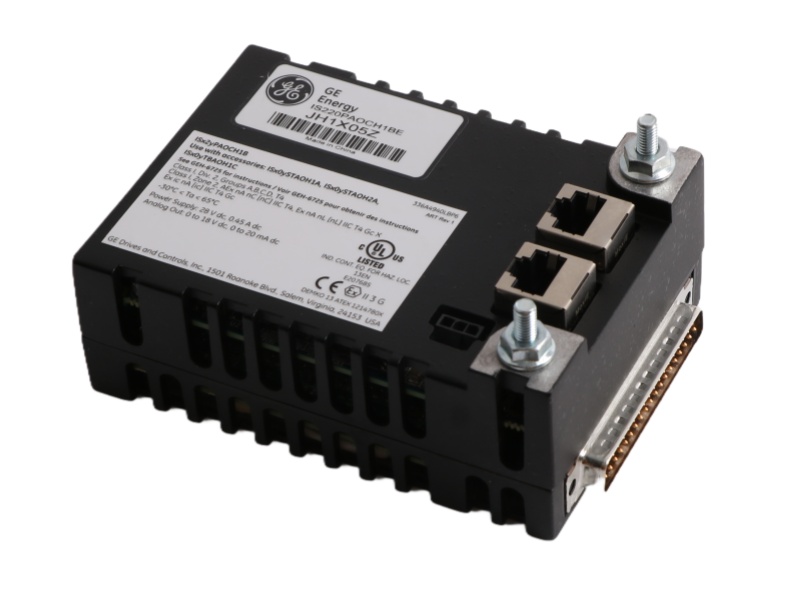

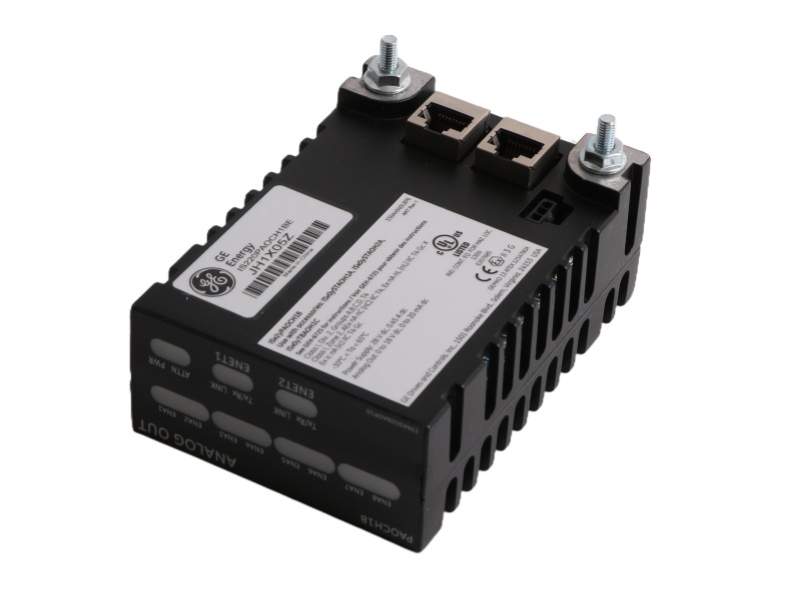

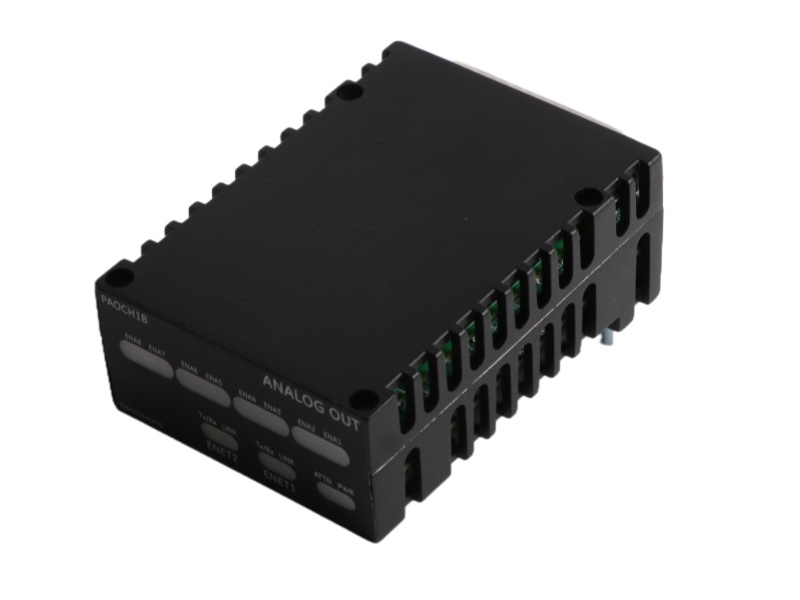

The Analog Output Module General Electric IS220PAOCH1B is an advanced analog output module designed for the Mark VIe distributed control system, featuring eight simplex 0-20 mA current output channels with ±0.5% accuracy across an operating temperature range of -30°C to 65°C. This compact module measures 8.26 cm high x 4.19 cm wide x 12.1 cm deep and utilizes 16-bit digital-to-analog converters for precise signal generation. The IS220PAOCH1B ANALOG OUTPUT MODULE incorporates dual RJ45 Ethernet connectors for network connectivity and a DC-37 pin output connector that directly interfaces with compatible terminal boards.
Designed for robust industrial applications, the General Electric IS220PAOCH1B I/O Pack supports multiple configuration options including simplex, dual, and triple modular redundant (TMR) setups for varying levels of fault tolerance and system reliability. Each channel includes current feedback monitoring through a 16-bit ADC and features mechanical relays with status LEDs for output enable/disable control. It also integrates temperature monitoring with alert capabilities to prevent overheating during operation.
The module operates with 18 V compliance and requires careful consideration of ambient temperature limitations due to its dense triple-board architecture. The Mark VIe SYESTEM General Electric IS220PAOCH1B is compatible with TBAOH1C and STAO terminal boards but not with DIN-rail mounted DTAO boards. Its design includes infrared diagnostics ports and visual indicators for comprehensive system monitoring and maintenance.
Manufactured in the USA, the Control System IS220PAOCH1B General Electric represents GE's commitment to precision industrial automation, providing reliable analog output functionality for critical control applications in power generation, turbine control, and process automation. This module exemplifies the technical excellence and reliability expected from General Electric's Mark VIe series components, ensuring high performance in demanding industrial environments.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
