IC693ALG223 Product datasheet
|
Model number: |
IC693ALG223 |
|
Module Type： |
Analog input module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693ALG223 Functional Description

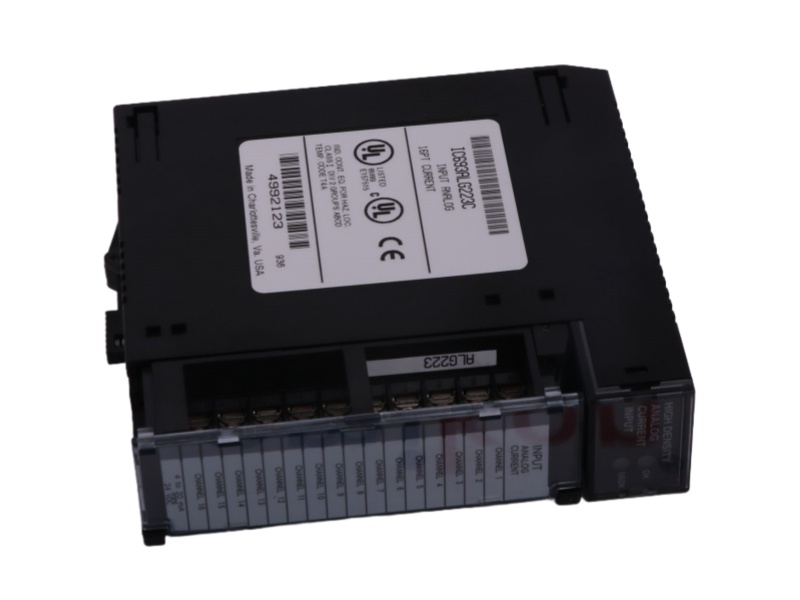

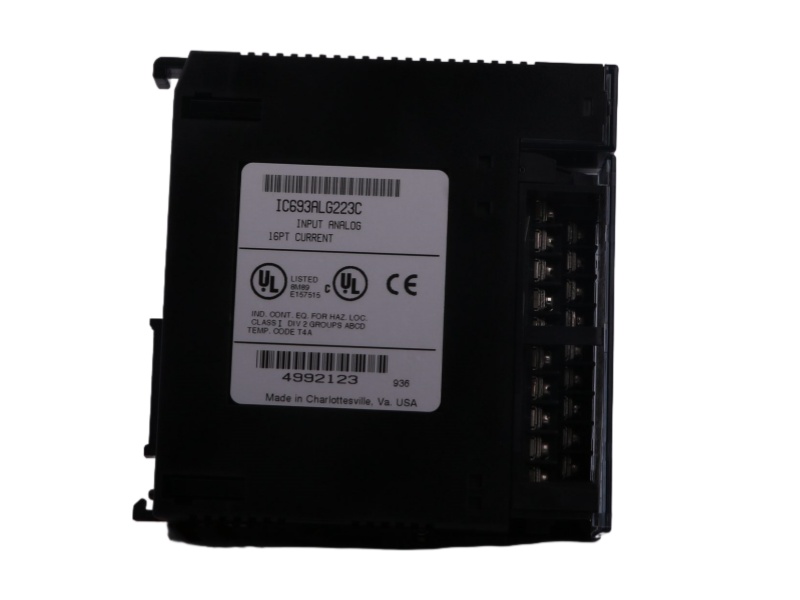

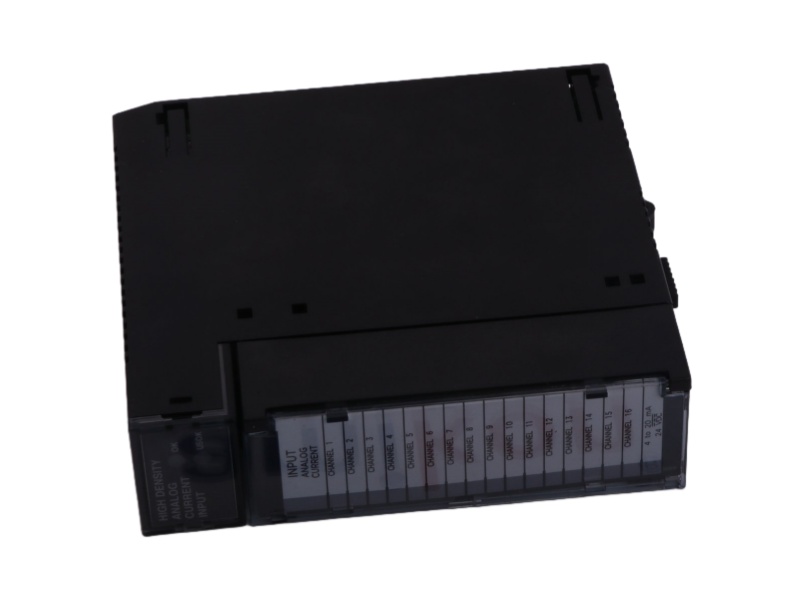

The 16-Channel Analog Input Module IC693ALG223 is a 16-channel analog current input module designed for Series 90-30 PLC systems. This high-density module supports three input ranges: 4-20 mA, 0-20 mA, and 4-20 mA Enhanced, providing exceptional flexibility for various industrial applications. It delivers 0.25% accuracy at 25°C with 12-bit resolution, ensuring precise measurement and conversion of analog signals to digital values for process control and monitoring.
Featuring 16 single-ended input channels, the IC693ALG223 GE Analog Current Input Module offers an update rate of 13 ms for all channels with 4 μA resolution in 4-20 mA mode and 5 μA resolution in 0-20 mA mode. The module provides 1500 volts isolation and requires 24 VDC external power while consuming 120 mA from the backplane. The Analog input module General Electric IC693ALG223 includes comprehensive diagnostic capabilities with configurable high and low alarm limits for each channel, enabling open-wire fault detection in critical applications.
The module features two status LEDs indicating module operation and user supply conditions, with various flashing patterns indicating different operational states. The IC693ALG223 General Electric Analog input module supports per-channel range configuration through IC641 configurator software or Hand-Held Programmer, allowing customized scaling from -8000 to +32000 counts in Enhanced mode for advanced diagnostic functionality. This flexibility makes it suitable for complex automation tasks requiring detailed current monitoring.
Manufactured in the United States, the General Electric IC693ALG223 Analog Voltage Input module represents GE's commitment to industrial automation excellence. Designed for integration into Speedtronic Gas Turbine Control Systems and other critical applications, this module provides reliable performance in demanding environments where accurate current measurement and robust diagnostics are essential for system operation and maintenance.
