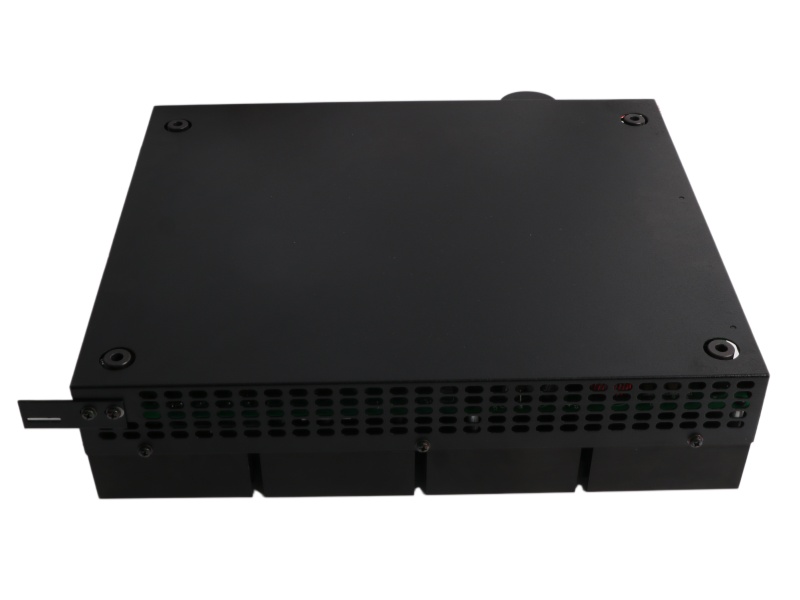

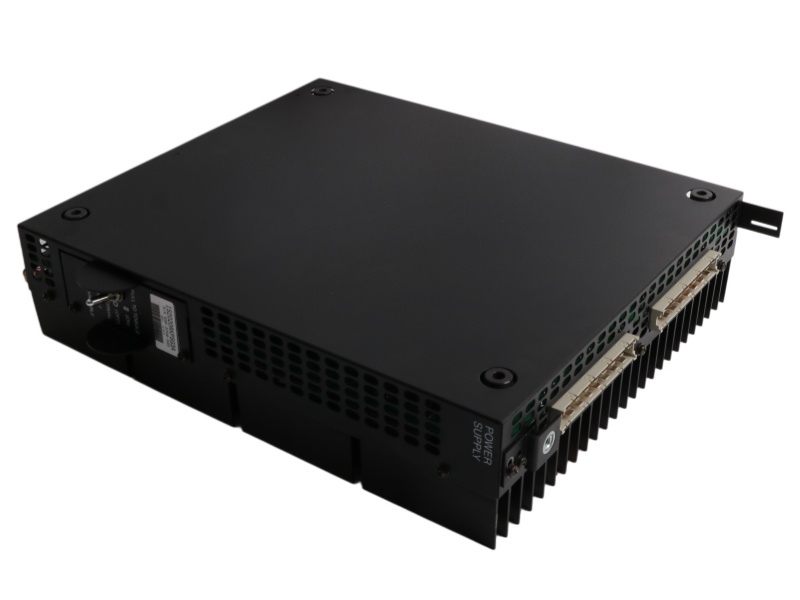

IS2020JPDCG1ACB Overview

The Power Distribution Module General Electric IS2020JPDCG1ACB is a Power Distribution Module for Mark VIe turbine control systems. It distributes 125 VDC, 115/230 VAC, and 28 VDC voltages while providing diagnostic feedback for system monitoring.

Specifications

Industrial Temperature Rating: Certified for reliable operation in ambient temperatures ranging from 0 to 60°C for consistent performance.

Strategic Cabinet Placement: Designed to be mounted low in control cabinets to facilitate proper grounding and enhance electrical safety.

Vertical Mounting Orientation: Engineered for vertical installation with high-voltage AC connectors positioned at the bottom for inherent safety compliance.

Voltage Isolation Design: Circuits are physically arranged with voltage levels increasing from top to bottom, isolating 28V, 125V, and 230V sections.

Rugged Physical Construction: Features a board mounted on a sturdy steel base with a diode assembly providing structural durability in industrial environments.

Attenuated Monitoring Signals: Diagnostic feedback signals provide scaled voltage representations (as low as 1.885%) for safe real-time monitoring without exposing measurement equipment to high voltages.

FAQ

Q1: What is the primary function of the IS200JPDCG1ACB?

A1: It is a Power Distribution Module for Mark VIe turbine control systems that distributes 125 VDC, 115/230 VAC, and 28 VDC voltages to other boards.

Q2: How should this module be oriented during installation?

A2: The module must be mounted vertically with the 115/230 V AC input connector (JAC) positioned at the bottom, secured with four screws.

Q3: How are voltage levels physically arranged on the board?

A3: Voltages increase from top to bottom: 28 VDC circuits at the top, 125 VDC in the center, and 115/230 VAC circuits at the bottom for safety.

Q4: What diagnostic feedback signals require the PPDA I/O pack?

A4: FDBK_A3, FDBK_A4 (from J1S-T and J7A-C), and FDBK_B1 (from Battery 1/2 and JAC1/2) require the PPDA I/O pack for decoding multiplexed signals.

Q5: What is the operating temperature range for this module?

A5: The IS200JPDCG1ACB is rated for reliable operation in temperatures from 0°C to 60°C.
