IS200TBCIH2BBC Product datasheet
|
Model number: |
IS200TBCIH2BBC |
|
Module Type： |
PCB Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200TBCIH2BBC Functional Description

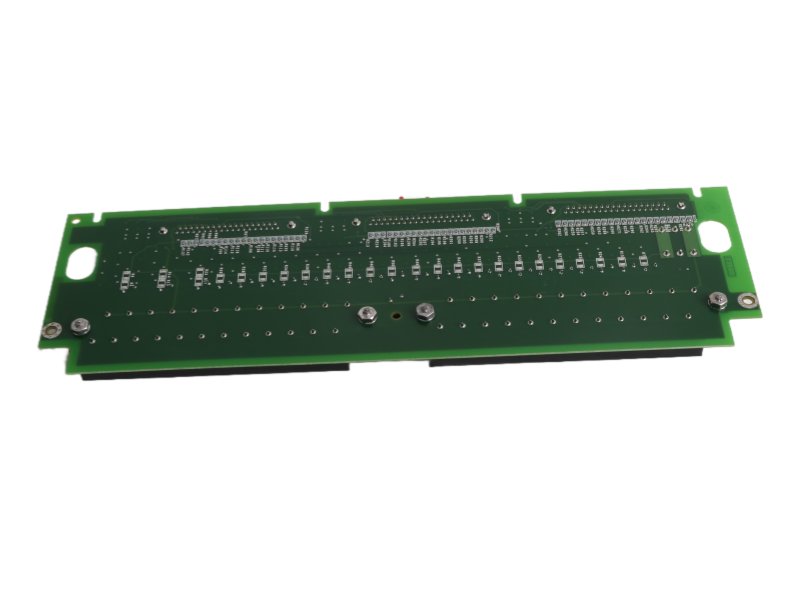

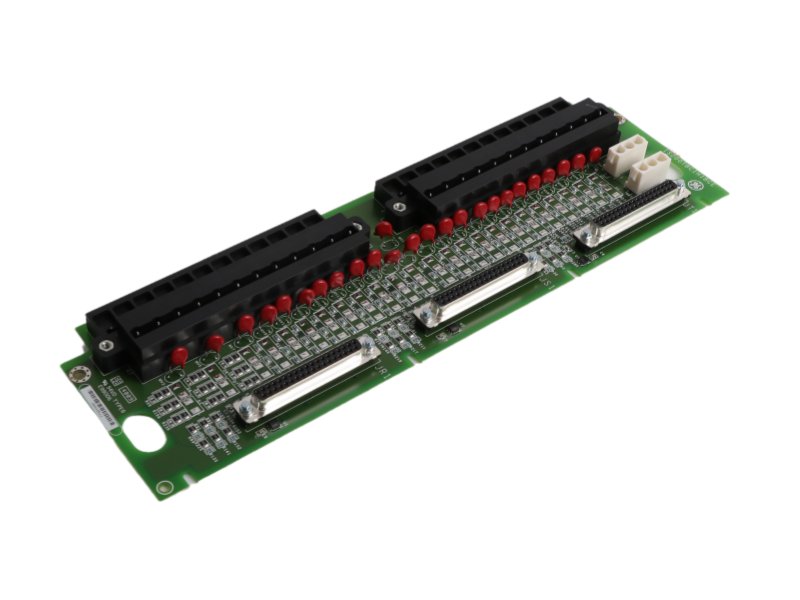

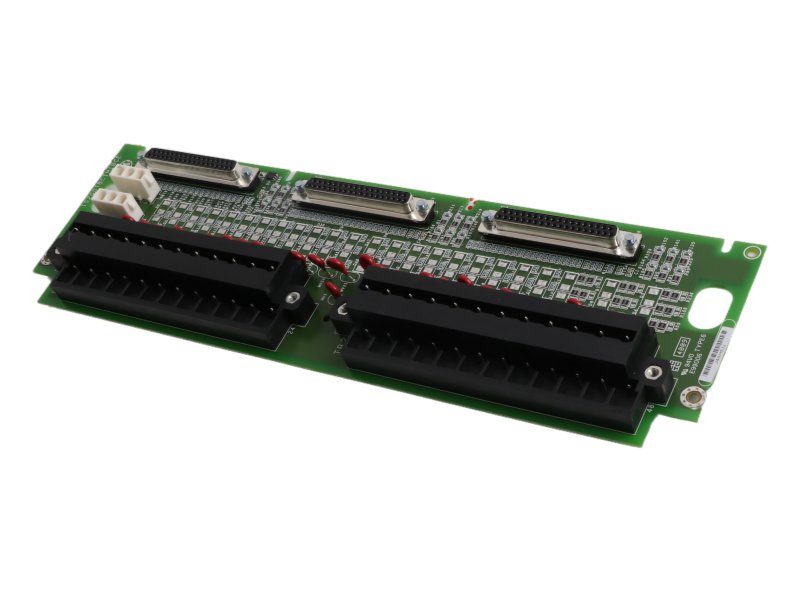

The PCB Board IS200TBCIH2BBC General Electric is a contact input terminal board designed for use in Mark VIe Distributed Control Systems, providing 24 dry contact voltage input channels for industrial applications. It accepts DC power for contact excitation and incorporates hardware filters with a 4 ms response time to suppress high-frequency noise and surges, ensuring reliable signal processing. This Isolation Board IS200TBCIH2BBC General Electric is compatible with simplex, dual, and TMR configurations, supporting direct connections to one, two, or three PDIA I/O packs, and maintaining mechanical alignment with the Mark VIe controller through the C-version design.
The Mark VIe SERIES IS200TBCIH2BBC General Electric features a group isolation design using optical isolators, which protects the control system and provides clean signal transfer from the terminal board to the Mark VIe controller. Each input includes a positive de-source terminal and a return input terminal, with current loads of 2.5 mA for the first 21 inputs and 10 mA for the final three inputs to support remote solid-state electronics.
Installation of the IS200TBCIH2BBC General Electric INPUT TERMINAL BOARD is straightforward, with two barrier-type terminal blocks accepting up to #12 AWG wires. Shield terminal strips connect to chassis ground, and the board connects to PDIAs via JR1, JS1, and JT1 ports depending on system configuration. Ethernet connections may also be required for control system communication, and firmware updates may be necessary.
Manufactured by General Electric Energy in the United States, the Direct Turbine Control General Electric IS200TBCIH2BBC is a refined version of the original IS200TBC board, incorporating three revisions to enhance mechanical alignment, functional reliability, and electrical performance. Its robust design ensures long-term operation in turbine and industrial control systems, making it an essential component for precise and safe distributed control applications.
