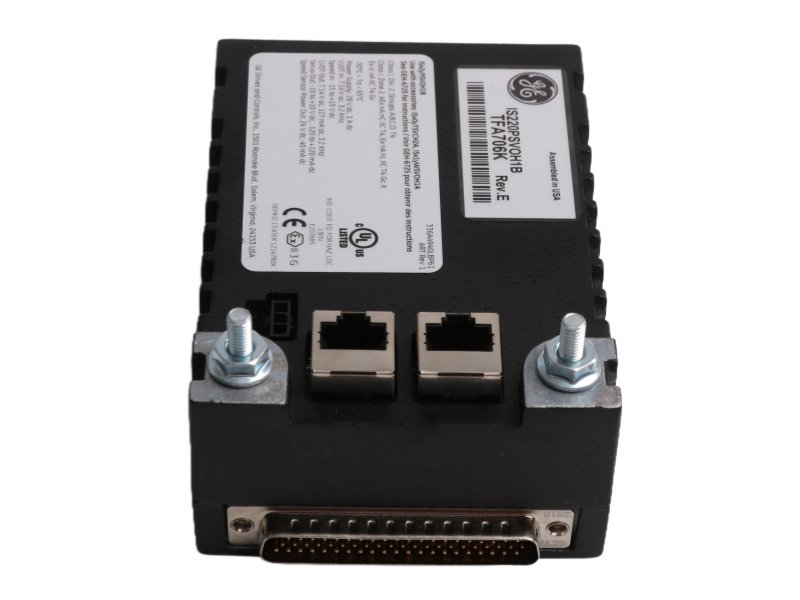

IS220PSVOH1B Product datasheet
|
Model number: |
IS220PSVOH1B |
|
Module Type： |
Servo I/o Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PSVOH1B Functional Description
The General Electric Servo I/o Module IS220PSVOH1B is a servo interface I/O pack from the Mark VIe series, designed to manage precise servo valve positioning within turbine control systems. It connects to I/O Ethernet networks and interfaces with a TSVO terminal board, utilizing a WSVO driver module to control two independent servo valve loops.
This DCS system IS220PSVOH1B General Electric features a front panel with multiple LED indicators displaying status for Ethernet networks (ENet1/ENet2), power, attention, and enable signals (ENA1/ENA2). The IS220PSVOH1B General Electric servo interface I/O pack includes an infrared port, though it remains non-operational in this specific pack model. Its internal architecture incorporates a processing board with power connectors, local power supplies, and an integrated temperature sensor.
Configuration is performed using the Control System Toolbox application, supporting both auto-reconfiguration upon replacement and manual setup via the ToolboxST Component Editor. The IS220PSVOH1B General Electric Servo Control I/O Pack also provides testing functionalities such as actuator stroking and current ramping, with performance monitored through a trend recorder.
As a critical component in GE’s Speedtronic MKVIe gas turbine control systems, the General Electric Mark Vie Servo I/o Module IS220PSVOH1B includes soft-start circuitry for controlled power-up and ensures reliable operation in demanding industrial environments. Manual reconfiguration is required when replacing associated terminal boards.
