IS200TPR0H1B Product datasheet

IS200TPR0H1B Functional Description

The IS200TPR0H1B General Electric Protective Termination Board is a protective termination card specifically designed for the Mark VI Speedtronic Turbine Control System. Manufactured at GE's facility in Salem, Virginia, this printed circuit board plays a crucial role in managing and automating industrial gas and steam turbines. The GE represents a significant component in one of the final GE Mark series to utilize the patented Speedtronic control technology, bridging decades of turbine control innovation.

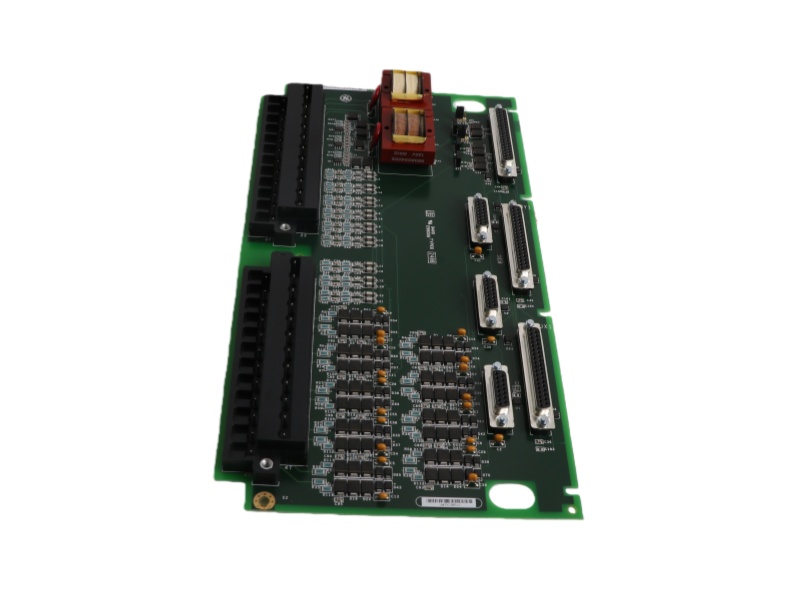

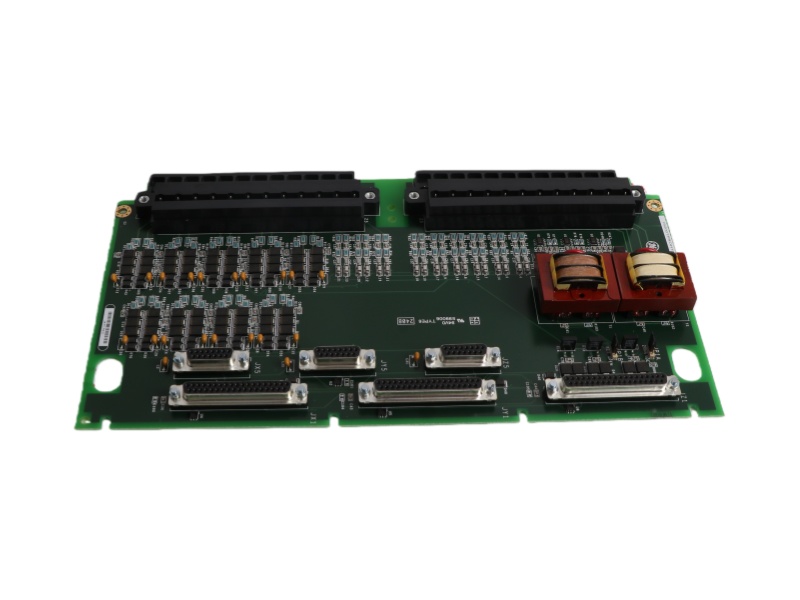

This large, rectangular board features a protective conformal coating, a thin chemical layer applied to safeguard the circuitry from environmental hazards. The physical layout of the General Electric IS200TPR0H1B includes two substantial black terminal blocks along its left edge, each equipped with twenty-four silver cube-shaped terminals, providing extensive connection points for system integration. These hardware specifications make the General Electric Mark VIe series IS200TPR0H1B particularly suited for handling critical termination functions within complex turbine control architectures.

Additional components on the IS200TPR0H1B General Electric Transient Data Interface Module include a pair of vertically arranged red transformers with yellow tops, each accompanied by a circular metal oxide varistor (MOV) for voltage protection. The right edge of the board houses multiple connector ports, including three larger interfaces labeled JZ1, JY1, and JX1, complemented by three smaller ports with adjacent yellow capacitors. This configuration enables the General Electric IS200TPR0H1B to effectively interface with various system components while maintaining signal integrity.

As a protective termination card, the Transient Data Interface Module GE IS200TPR0H1B fulfills essential safety and operational functions within turbine management systems. Its robust construction and careful component arrangement reflect GE's commitment to reliability in critical power generation applications. The continued use of the GENERAL ELECTRIC IS200TPR0H1B Protective Termination Card across industrial turbines underscores its importance in maintaining operational stability and protection in demanding energy production environments.
