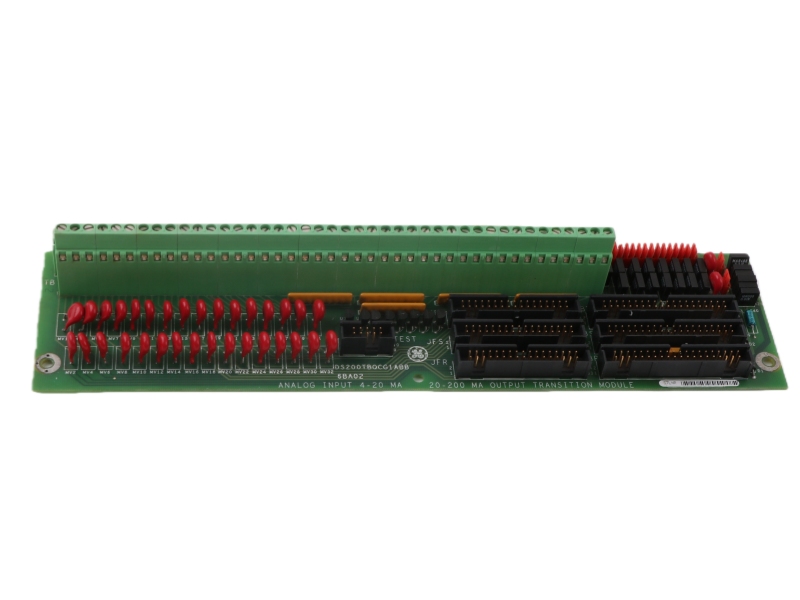

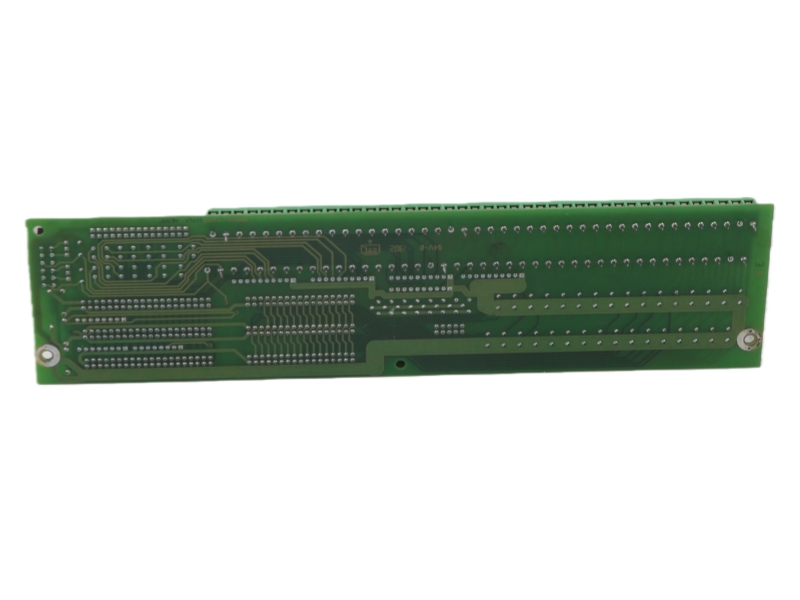

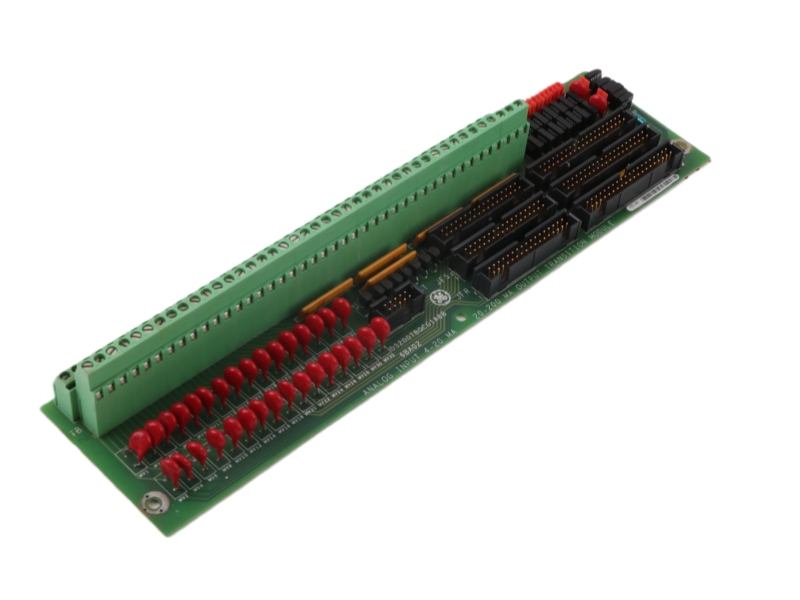

DS200TBQGG1ABB Overview

The Analog Termination Module General Electric DS200TBQGG1ABB is an Analog Input Milliamp I/O Termination Module, a crucial interface component within the Mark V Speedtronic turbine control system for processing current signals from sensors.

Features and benefits

Primary Function: Serves as an Analog Input Milliamp I/O Termination Module for precise signal interfacing.

System Compatibility: Designed for integration into the Mark V Speedtronic turbine control system.

Advanced Technology: Incorporates GE's patented Speedtronic control technology for enhanced performance.

Broad Application: Used in wind, gas, and steam turbine control and management systems.

Iterative Design: Represents a product with three crucial revisions, offering improved functionality over the base model.

Reliable Interface: Provides stable termination and processing for critical analog current signals in industrial environments.

FAQ

Q1: What are the key connectors on the DS200TBQCG1ABB?

A1: Key connectors include JBR (for 4-20 mA I/O signals), JFR (for LVDT/R position inputs), and JBS/T, JFS/T, and TEST which are typically unused.

Q2: What is the function of the JBR connector?

A2: The JBR connector writes 4-20 mA input signals and reads milliamp output signals to/from the TCQA board in its respective control core.

Q3: How does the board configure its output current range?

A3: It uses jumpers BJ16 and BJ17 to select the maximum output current range, which can be set to either 20 mA or 200 mA.

Q4: What is the purpose of jumpers BJ1 through BJ15?

A4: These jumpers connect the 15 milliamp input signals on the board to the DCOM (digital common) reference.

Q5: Where is the DS200TBQCG1ABB installed in the system?

A5: It is located in the Mark V LM control panel, specifically within the <R1>, <R2>, and <R3> control cores.
