DS200TBQBG1ACB Overview

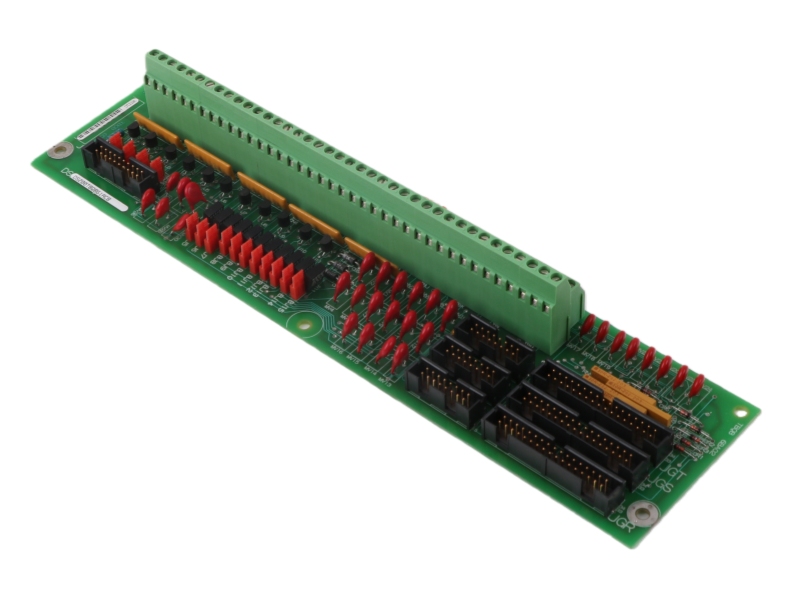

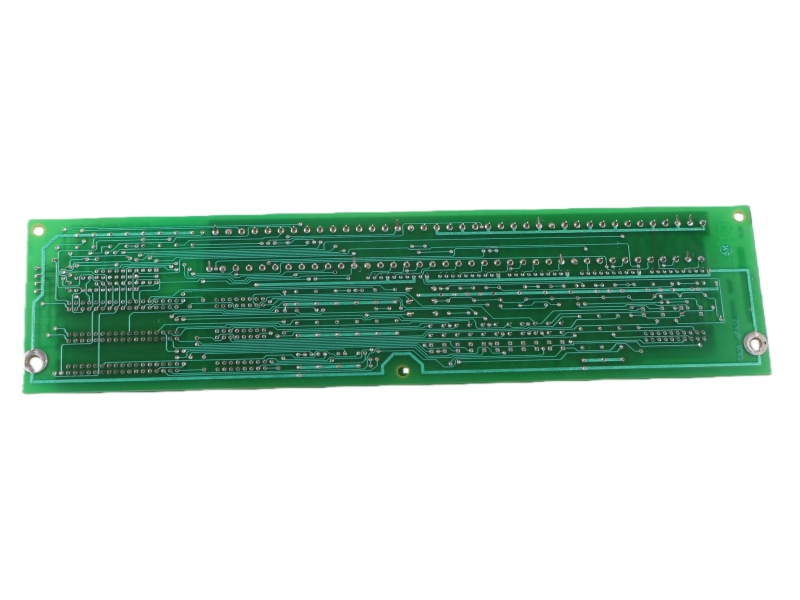

The Input Termination Module General Electric DS200TBQBG1ACB is an Analog Termination Board specifically designed for the Mark V Turbine Control System. It is used to interface and manage analog signals within wind, steam, and gas turbine control assemblies, incorporating GE's proprietary Speedtronic technology.

Features and benefits

Core Function: Serves as an RST Analog Termination Board for signal wiring in Mark V turbine control.

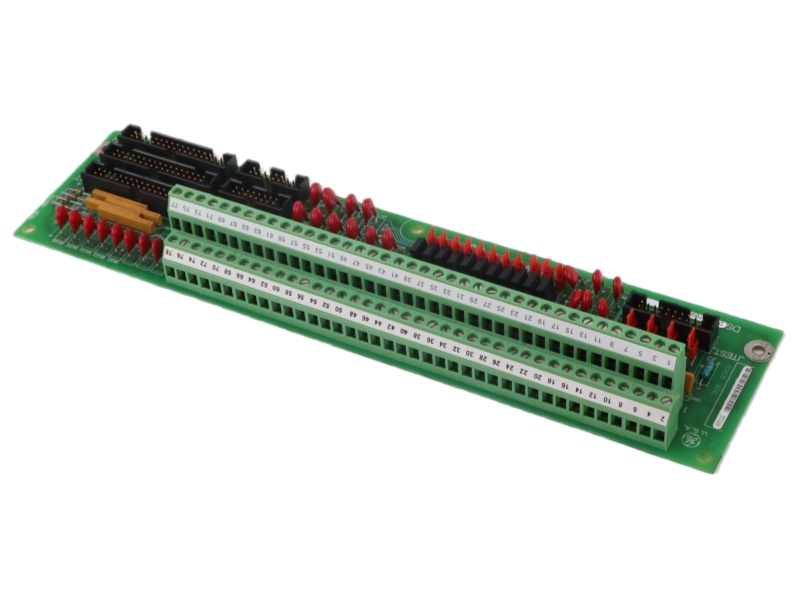

High Capacity: Features two terminal blocks with 154 total terminals for extensive signal connection.

Versatile Connectivity: Includes 15 configurable jumpers, three 34-pin, and three 16-pin connectors.

Enhanced Design: Represents a revised model with customization options, such as pressure transducer configuration via jumpers.

Clear Identification: Terminals and connectors have factory-printed IDs (e.g., TB1 66) for precise wiring and replacement.

Legacy Integration: Part of the sought-after Mark V series, utilizing GE's proprietary Speedtronic control technology.

FAQ

Q1: What is the DS200TBQBG1ACB?

A1: It is an RST Analog Termination Board designed for signal wiring and processing within GE's Mark V Turbine Control System.

Q2: What are its key hardware components?

A2: It features two terminal blocks with 154 terminals, 15 jumpers, three 34-pin connectors, and three 16-pin connectors.

Q3: What are the main functions of its jumpers?

A3: Jumpers BJ1-BJ4 fan out a pressure transducer, BJ5-BJ7 install its burden resistor, and BJ8-BJ15 configure analog inputs.

Q4: How are the terminals identified for wiring?

A4: Each terminal is uniquely identified by a block ID (TB1 or TB2) and a number (e.g., TB1 66) for precise connection.

Q5: Why is this board still in demand?

A5: It belongs to the sought-after Mark V series, one of the last to incorporate GE's patented Speedtronic control technology.
