DS200TBQCG1ABB Overview

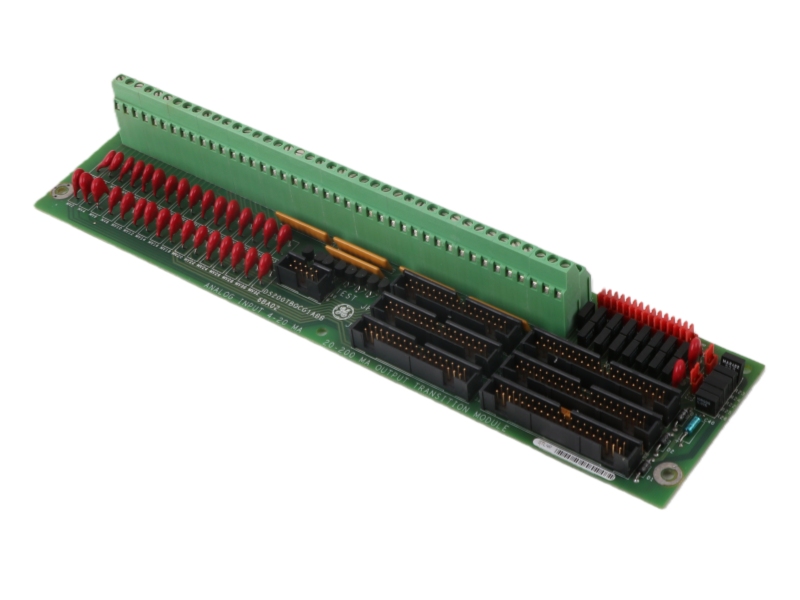

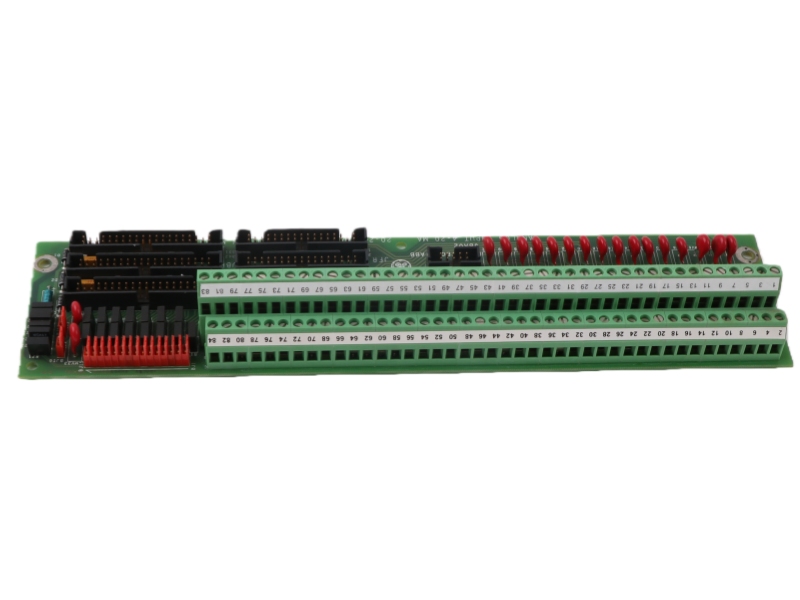

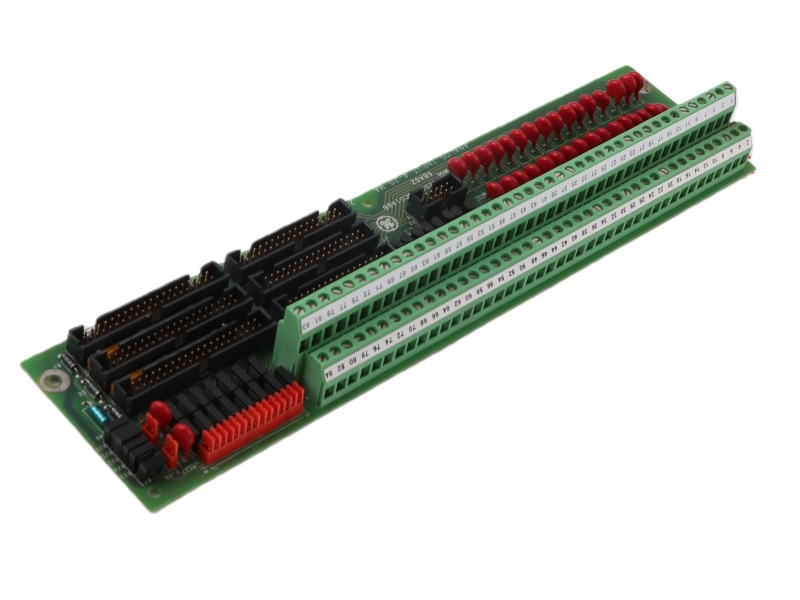

The DS200TBQCG1ABB General Electric Analog Input Milliamp I/O Termination Module is a 12-channel Analog Input Milliamp I/O Termination Module for the Mark V Speedtronic system. It interfaces 4-20 mA and LVDT/R signals, connecting them to the TCQA board for precise turbine control and monitoring.

Features and benefits

Primary Function: 12-channel Analog Input Termination Module for 4-20 mA and LVDT/R signals.

Key Feature: Configurable output via hardware jumpers for 20 mA or 200 mA maximum current.

Signal Processing: Converts analog current signals into digital format for PLC/DCS control.

System Integration: Connects sensor inputs to the TCQA board within the Mark V Speedtronic core.

Robust Design: Provides galvanic isolation, signal conditioning, and termination for reliable operation.

Physical Specs: Compact size (8.26x4.18 cm), operates from -30 to 55°C, and weighs 2 lbs.

FAQ

Q1: What is the DS200TBQCG1ABB?

A1: It is a 12-channel Analog Input Milliamp I/O Termination Module designed for GE's Mark V Speedtronic gas turbine control system.

Q2: What is its primary function?

A2: It converts analog current signals (4-20 mA) and LVDT/R inputs into digital signals for processing by the system's TCQA control board.

Q3: How can its output be configured?

A3: Its output current can be configured via hardware jumpers on the terminal board for a maximum of either 20 mA or 200 mA.

Q4: Why is signal conversion necessary?

A4: Signal conversion is essential because industrial sensors output analog signals, while the control system requires digital signals for processing and monitoring.

Q5: What does "signal termination" mean for this module?

A5: It refers to providing the proper electrical connection and wiring termination to ensure accurate, stable, and reliable transmission of the analog sensor signal.
