DS200CPCAG1ABB Overview

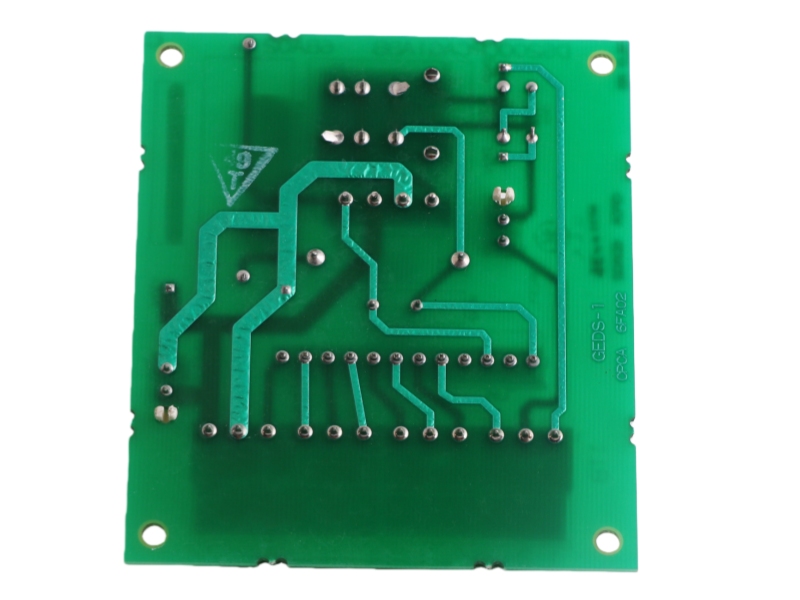

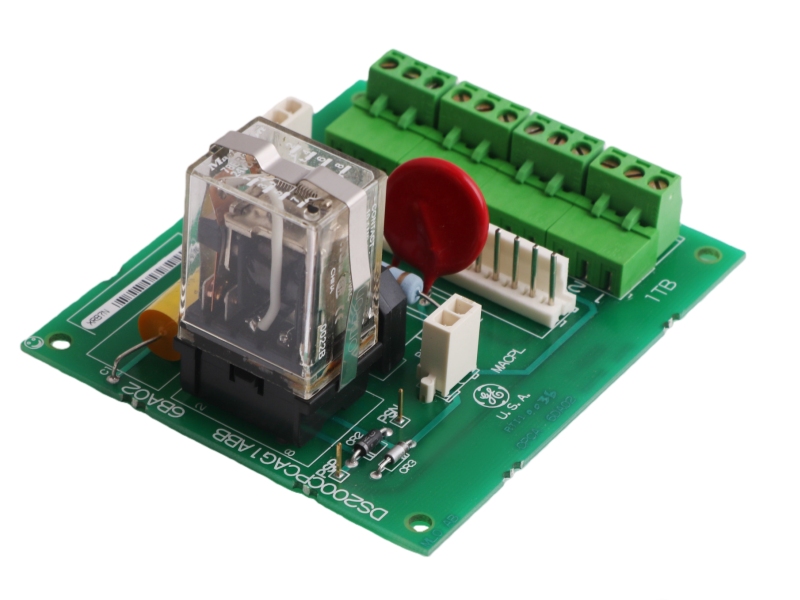

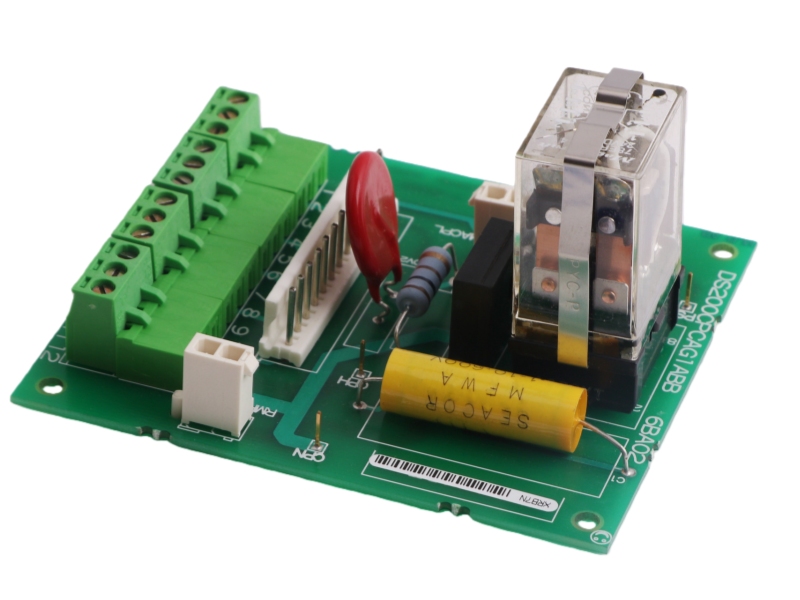

The Contactor Pilot Board General Electric DS200CPCAG1ABB is a Contactor Test Board designed for drive system testing and maintenance. It features multiple connectors, terminals, and a built-in 24VDC power relay to facilitate signal wiring and functional validation.

Technical Data Summary

 Connectors: Equipped with one 12-pin, two 2-pin connectors, and four screw terminals.

Capacity: Supports wiring for up to twelve signal wires.

Relay: Integrated 24VDC, 15A socket power relay with moving internal parts.

Mounting: Requires careful alignment and secure but non-overtightened screw fixation.

Precaution: Relay is prominent; avoid impact during cabinet installation to prevent damage.

FAQ

Q1: What is the DS200CPCAG1ABB?

A1: It is a Contactor Test Board manufactured by GE for the Mark V DS200 turbine control system.

Q2: What key hardware does this board feature?

A2: It has a 24VDC 15A socket power relay, one 12-pin connector, two 2-pin connectors, and four terminals.

Q3: How many signal wires can it connect?

A3: Its four terminals allow for the connection of up to twelve signal wires.

Q4: What special precaution is required during installation?

A4: The prominent relay is fragile; the board must be installed carefully to avoid collision and damage.

Q5: How should the board be secured in the drive cabinet?

A5: Align and tighten the mounting screws carefully without overtightening, and use washers if provided.
