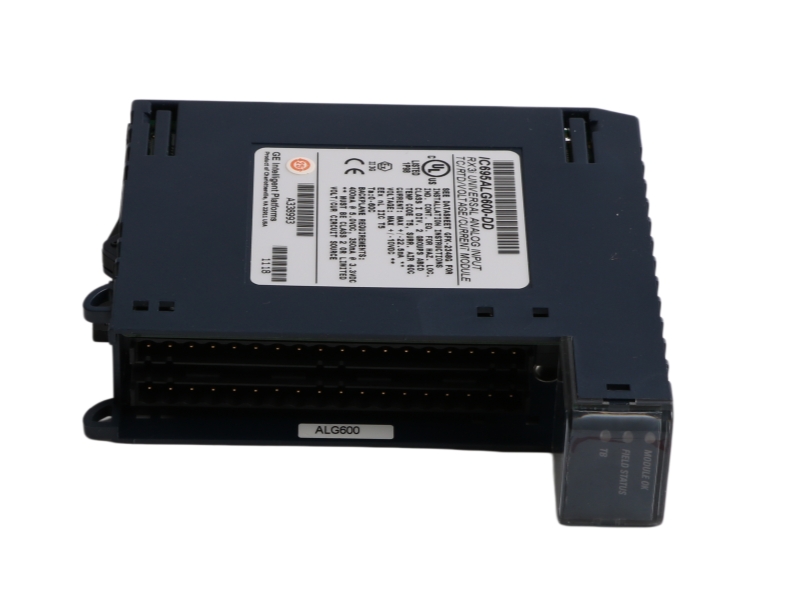

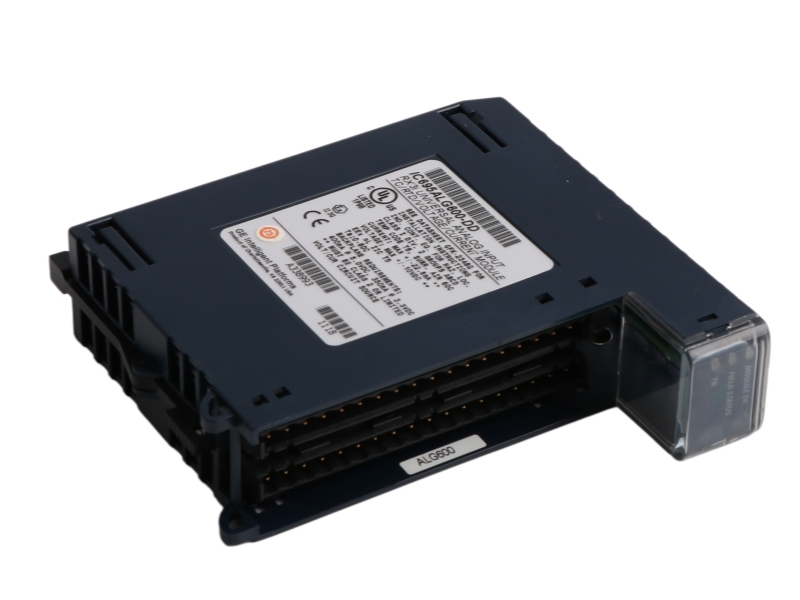

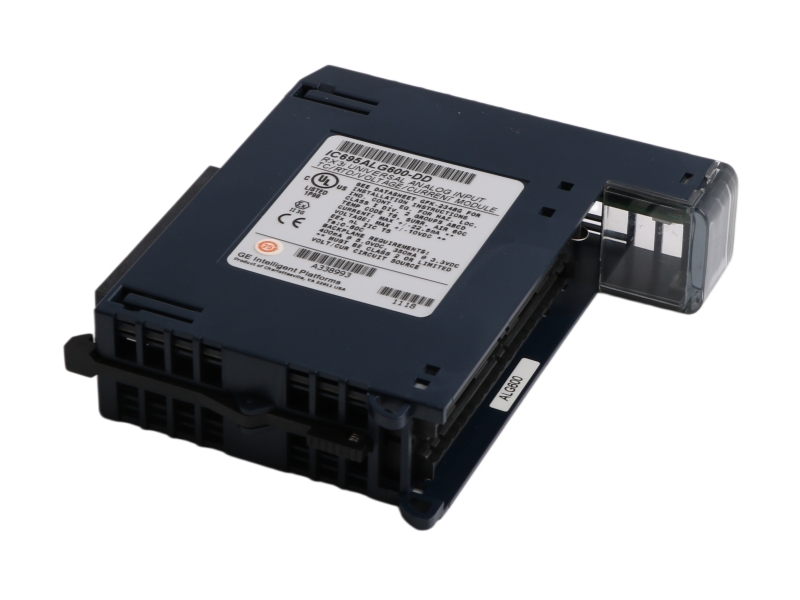

The IC695ALG600‑DD is an 8‑channel universal analog input module for PACSystems RX3i. It supports voltage, current, thermocouple, RTD, and resistance inputs with firmware v1.14, which improves CJC accuracy and open‑wire detection.
Specifications
Parameter：Value
Backplane power requirements：300 mA max @ 5.0 V; 320 mA max @ 3.3 V
Power dissipation：5.4 W max
LEDs：Module OK (green), Field Status (green/yellow), TB (red/green)
Per‑channel acquisition time：10 ms @ 1000 Hz to 127 ms @ 8 Hz
Input resolution：11–16 bits (depends on range & filter)
Input types：Voltage (±50 mV, ±150 mV, 0‑5 V, 1‑5 V, 0‑10 V, ±10 V); Current (0‑20 mA, 4‑20 mA, ±20 mA); Thermocouple (B, C, E, J, K, N, R, S, T); RTD (PT385, PT3916, N618, N672, NiFe518, CU426); Resistance (0‑250 to 0‑4000 Ω)
Input filter frequencies：8, 12, 16, 40, 200, 1000 Hz
Open circuit detection time：5 s max
Max overvoltage / overcurrent：±14.5 VDC continuous / 28 mA continuous
Normal mode noise rejection：≥95 dB @ 50/60 Hz (8 Hz filter)
Common mode noise rejection：≥120 dB @ 50/60 Hz (8 Hz filter)
Calibrated accuracy at 25°C：Better than 0.1% of range (except 10 Ω Cu RTD)
Isolation：Channel‑to‑channel: ±12.5 VDC; Group‑to‑group & TB‑to‑backplane: 250 VAC continuous / 1500 VAC for 60 s
Firmware version (DD)：Primary: 1.14, Boot: 1.10
