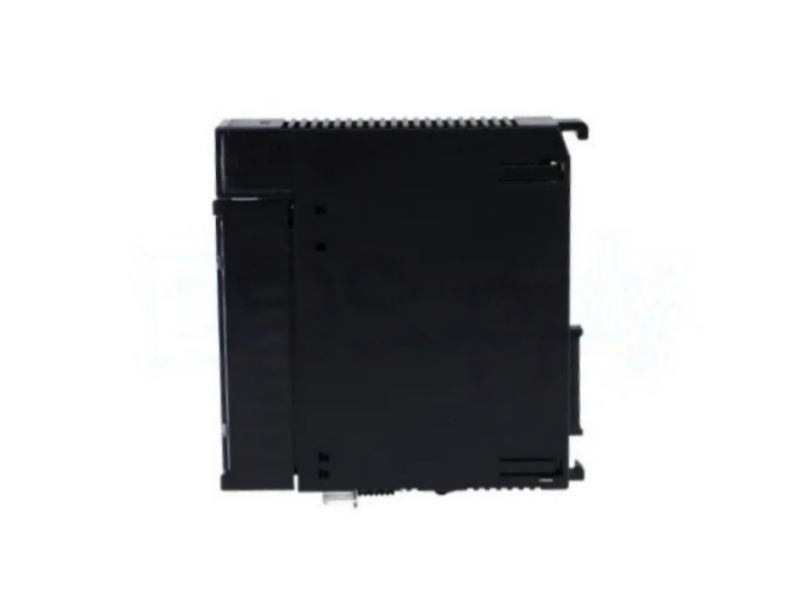

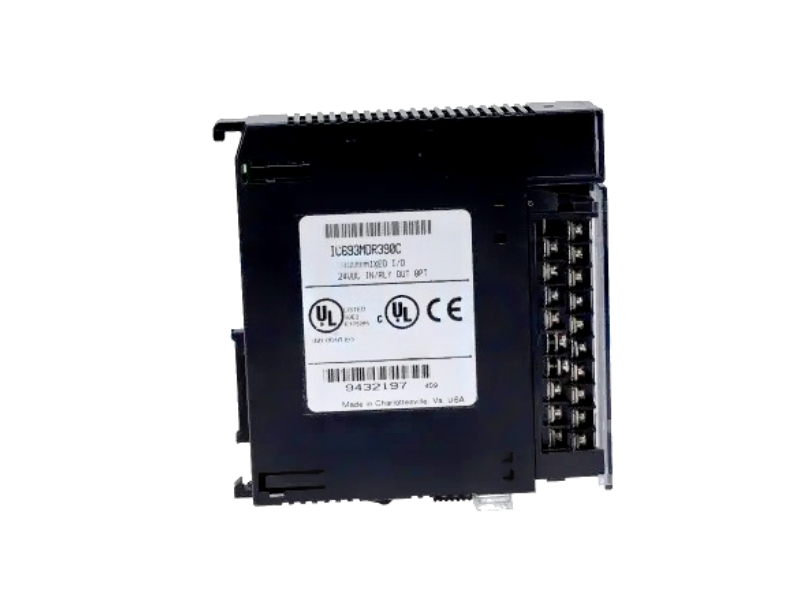

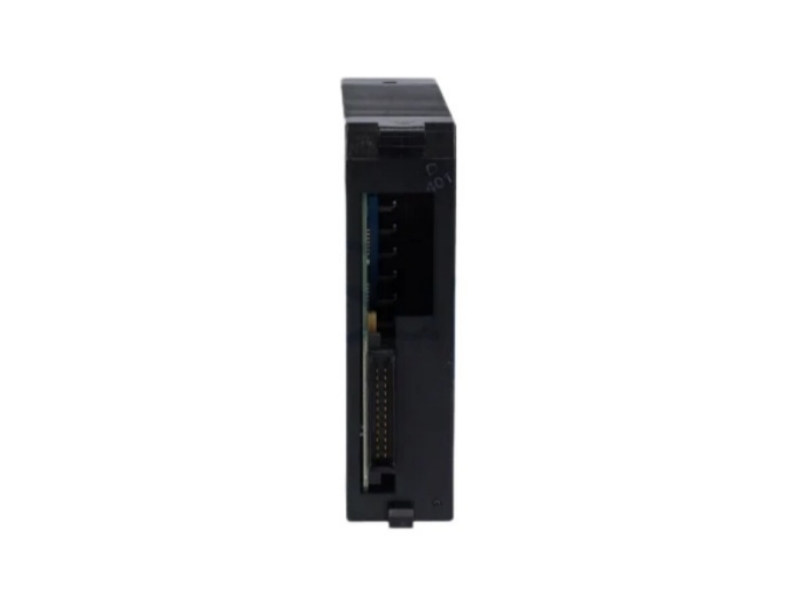

The GE IC693MDR390 Discrete Combination I/O Module is designed for the GE Series 90-30 PLC platform, providing 8 DC inputs and 8 relay outputs for reliable control of switches, alarms, motors, and other industrial devices.

Features and benefits

The GE IC693MDR390 discrete combination I/O module provides a reliable and cost-effective solution for industrial control applications within the GE Series 90-30 PLC platform. It integrates 8 DC input channels and 8 normally open relay outputs in a single-slot module, enabling efficient signal monitoring and device control. The module supports a wide input voltage range and flexible output ratings up to 250 VAC or 30 VDC, allowing it to operate with various field devices. High electrical isolation enhances system safety, while fast response times ensure accurate signal processing. LED status indicators simplify diagnostics, and compatibility with local, expansion, or remote baseplates allows flexible installation.

FAQ

Q1: What is the main function of the IC693MDR390?
A1: It provides both input and output capabilities, featuring 8 DC input channels and 8 relay output channels for industrial control applications.

Q2: What type of PLC system uses the IC693MDR390?
A2: It is designed for the GE Fanuc Series 90-30 PLC platform and can be installed in compatible I/O baseplates.

Q3: What devices can be connected to the inputs of the IC693MDR390?
A3: The inputs can receive signals from devices such as pushbuttons, limit switches, photocells, and manual switches.

Q4: What loads can the outputs of the IC693MDR390l?
A4: The relay outputs can control equipment like motor starters, alarm indicators, solenoid valves, and other industrial loads.

Q5: How are the outputs of the GE IC693MDR390 Discrete Combination I/O Module organized?
A5: The module’s 8 relay outputs are divided into two groups of four, allowing different power sources or voltage ranges if required.
