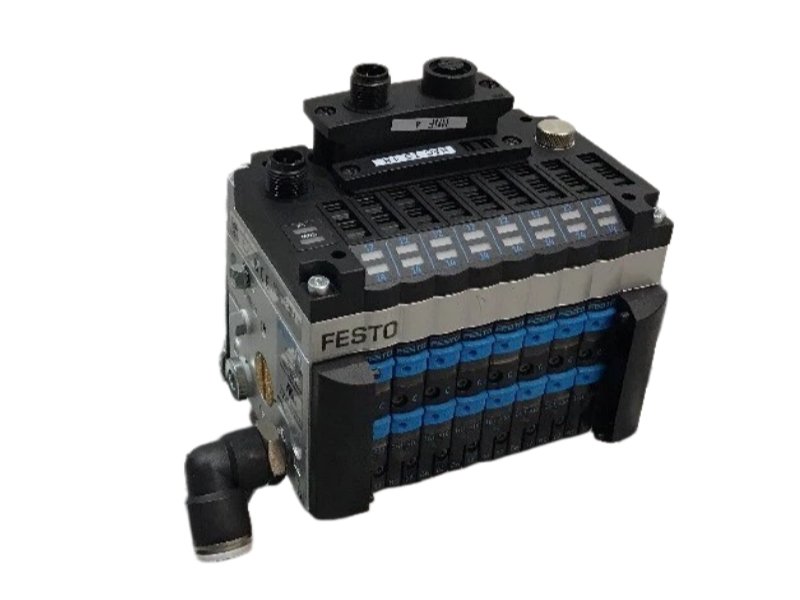

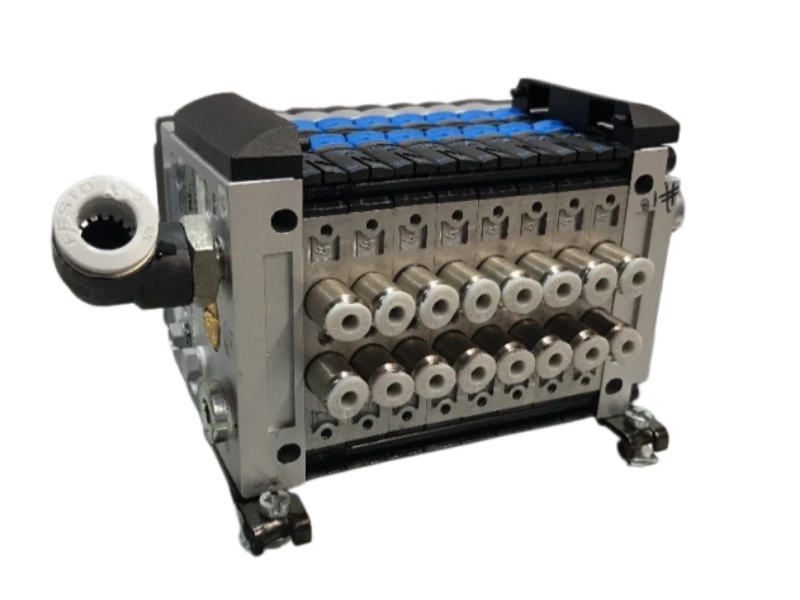

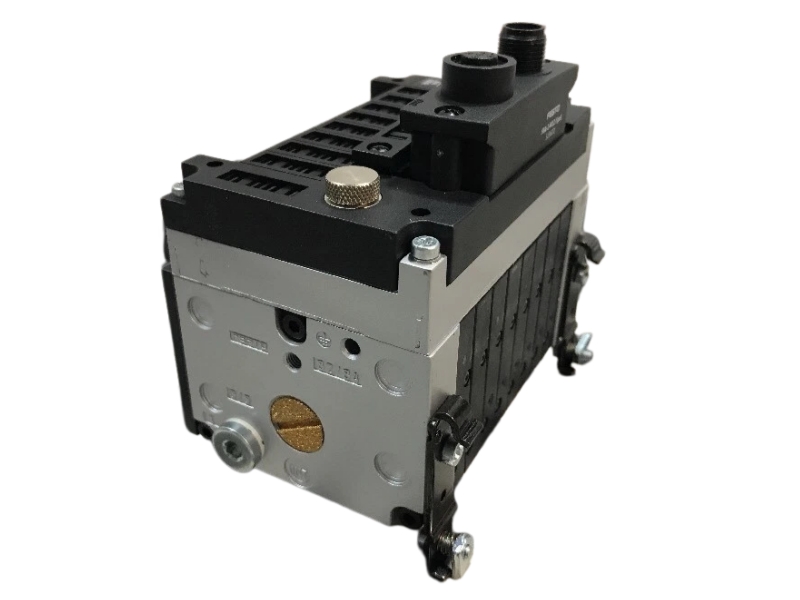

The Festo CPV10-GE-DN2-8 (525630) is a compact electrical interface for CPV10 valve terminals, providing reliable fieldbus communication, flexible diagnostics, and efficient control of pneumatic automation systems.
Specifications
Model: CPV10-GE-DN2-8 (525630)
Type: Electrical interface module (CPV10 series)
- Inputs / Outputs: 16 inputs / 8 outputs (or 16 valves)
- Operating Voltage: 24 V DC (20.4–26.4 V range)
- Communication Types: Change of State, Polling, Strobbed I/O
- Fieldbus Interface: Optional (M12, Sub-D, or terminal strip)
- Baud Rate: 125 / 250 / 500 kBit/s
- Max Solenoid Coils: 16 (32 with extension)
- Diagnostics: Condition monitoring, short circuit, overload, undervoltage detection
- Protection Class: IP20 / IP65
- Ambient Temperature: -5°C to +50°C
- Electrical Protection: Polarity protected, optocoupler isolation
- Configuration: EDS file support, switch module addressing
Application
- Industrial Automation: Controls pneumatic valve terminals in automated production lines.
- Manufacturing Systems: Enables efficient I/O communication in assembly and packaging machines.
- Process Control: Supports stable signal transmission in process industries.
- Robotics Integration: Interfaces valves and sensors in robotic handling systems.
- Machine Building: Ideal for modular machine designs requiring flexible fieldbus connectivity.
