EMERSON KJ3242X1-BA1 12P2471X052 Fieldbus H1 Card

Inquiry now

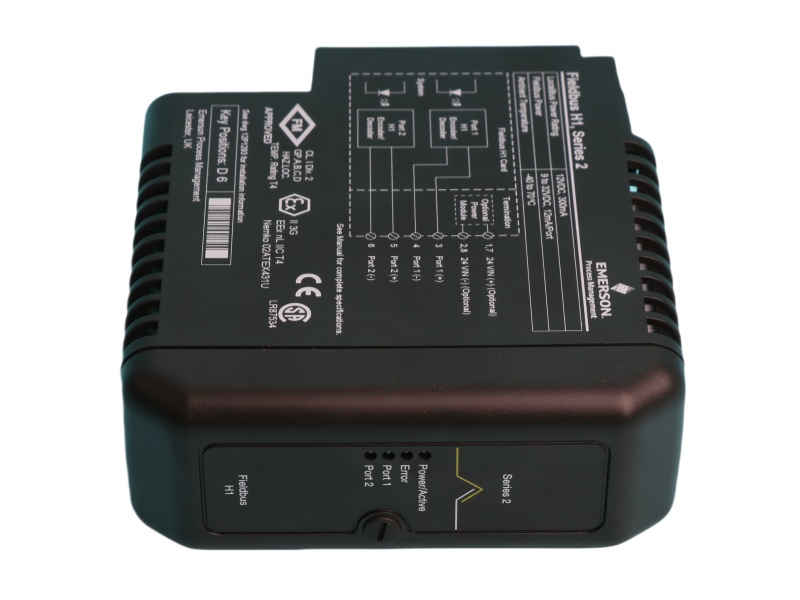

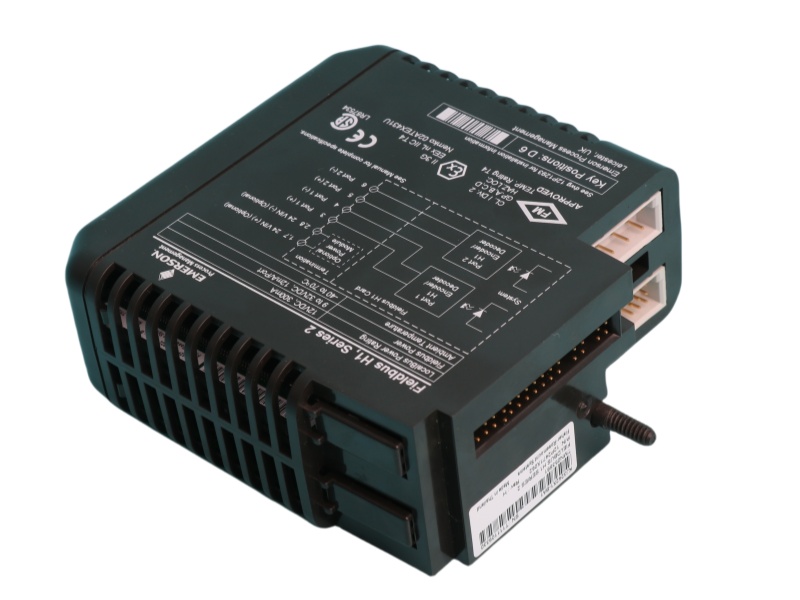

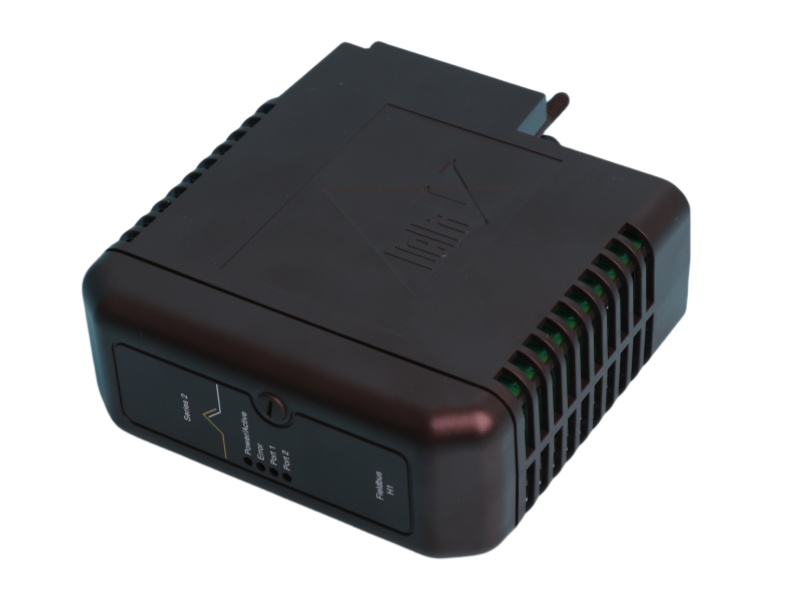

KJ3242X1-BA1 12P2471X052 Product datasheet

Model number:	KJ3242X1-BA1 12P2471X052	Module Type：	Fieldbus H1 Card
Manufacture:	EMERSON	Condition：	Brand New
Range of Product:	DeltaV™ M-series I/O Subsystem	Lead time：	In Stock
Weight:	0.1kg	HS CODE：	8537101190
Dimension:	4.2x12.5x10.4cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Dec 31,2018	Communication Service:	Ethernet router

KJ3242X1-BA1 12P2471X052 Functional Description

The EMERSON Fieldbus H1 Series 2 Rev KJ3242X1-BA1 12P2471X052 is a redundant Fieldbus H1 communication card from Fisher-Rosemount's DeltaV VE4017P0 Series 2 system, designed for critical process automation applications. This industrial-grade module operates with 12VDC local bus power at 300mA while delivering 9-32VDC fieldbus power at 12mA per port, ensuring stable communication in Foundation Fieldbus networks. It demonstrates exceptional environmental resilience, functioning reliably across an extreme temperature range of -40°C to +70°C and withstanding 10g shock pulses (11ms duration) plus significant vibration exposure (1mm peak-to-peak from 2-13.2Hz).

As part of Emerson Process Management's robust field solutions, the 12P2471X052 EMERSON DELTAV FIELDBUS H1 meets stringent industry standards including IP20 enclosure rating and ISA-S71.04-1985 Class G3 airborne contaminant compliance. The module's Terminal Block Key Position D6 ensures proper alignment when used with compatible terminal blocks like KJ3242X1-EA1 or 12P2574X032, preventing hazardous misconnections in field installations. This attention to safety extends to its 5-95% non-condensing humidity tolerance, making it suitable for challenging industrial environments.

The KJ3242X1-BA1 SERIES 2 EMERSON offers versatile integration within DeltaV systems, with alternate part numbers including 12P2471X042/X062/X072/X082 for different configurations. Its simplex design maintains Emerson's reputation for reliable process communication, particularly in oil & gas, petrochemical, and other hazardous area applications where the Fieldbus H1 Card EMERSON 12P2471X052 KJ3242X1-BA1 serves as a critical network component. The card's robust construction and redundant capabilities ensure continuous operation even under demanding physical and electrical conditions.

Engineered for maximum uptime in critical processes, this Fieldbus H1 card exemplifies Emerson's commitment to industrial communication reliability. The EMERSON KJ3242X1-BA1 12P2471X052 Fieldbus H1 Card combines advanced protocol support with physical durability, offering plant operators a trusted solution for Foundation Fieldbus networks. Its compatibility with various terminal blocks and consistent performance across extreme environmental conditions make it a preferred choice for modern automation systems requiring failsafe field communication in harsh operating environments.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

EMERSON	WH5D-2FF 1X00416H03	EMERSON	SLS1508 KJ2201X1-BA1 12P3162X202	EMERSON	PR9268/201-100
EMERSON	W74C5X1	EMERSON	SLS1508 KJ2201X1-BA1 12P3162X162	EMERSON	PR6426/010-140
EMERSON	VS3202 KJ2201X1-BA1 12P3162X162	EMERSON	SLS1508 KJ2201X1-BA1 12P3162X122	EMERSON	PR6426/010-030 CON021/916-160
EMERSON	VE5009 KJ1501X1-BC3 12P3935X022	EMERSON	SLS1508 KJ2201X1-BA1 12P3162X102	EMERSON	PR6426/010-000 CON021/916-160
EMERSON	VE4050S2K1C0 KJ4001X1-BE1 12P0818X072	EMERSON	R6423/010-010 CON021	EMERSON	PR6426/010-000 CON021
EMERSON	VE4003S5B1 KJ3002X1-BG2 12P1731X082	EMERSON	PR9376/010-011	EMERSON	PR6426/00-CS CON01
EMERSON	VE3008 KJ2005X1-MQ1 12P6381X032	EMERSON	PR9376/010-001	EMERSON	PR6426/00-8M CON011
EMERSON	VE3008 KJ2005X1-MQ2 13P0072X082	EMERSON	PR9350/02	EMERSON	PR6426/000-131 CON041/916-200
EMERSON	VE4002S1T1B2 KJ3001X1-BG1 12P0557X162	EMERSON	PR9268/302-000	EMERSON	PR6426/000-131 CON041
EMERSON	VE3008 KJ2005X1-MQ1 12P6381X022	EMERSON	PR9268/203-000	EMERSON	PR6426/000-121 CON031

EMERSON Fieldbus H1 Card Technical Overview

The EMERSON Fieldbus H1 Card represents a critical component in modern industrial automation systems, specifically designed for Foundation Fieldbus H1 network implementations. As exemplified by models like the KJ3242X1-BA1 12P2471X052, these communication modules serve as the vital link between field devices and control systems in process industries. The cards operate at the standard 31.25 kbit/s communication speed while supporting essential Fieldbus functions.

Engineered for demanding environments, these cards feature robust power specifications including 12VDC local bus power (300mA) and 9-32VDC field power (12mA/port). Their hardened design withstands extreme conditions, maintaining operation across a -40°C to +70°C temperature range and surviving 10g shock pulses. The IP20-rated enclosure provides solid particle protection while complying with ISA-S71.04 Class G3 airborne contaminant standards.

Key technical attributes include:

Rotary keying system (Position D6) for secure terminal block connections

Support for redundant configurations in critical applications

Compliance with hazardous area installation requirements

Vibration resistance (1mm peak-to-peak, 2-13.2Hz)

5-95% non-condensing humidity operation

These Fieldbus H1 cards integrate seamlessly with Emerson's DeltaV system architecture, particularly when used with specified terminal blocks like KJ3242X1-EA1. Their design emphasizes reliable communication in oil refineries, chemical plants, and other process facilities where network integrity is paramount. The modules' combination of environmental toughness and protocol compliance makes them ideal for both greenfield installations and system upgrades in existing automation infrastructures.
