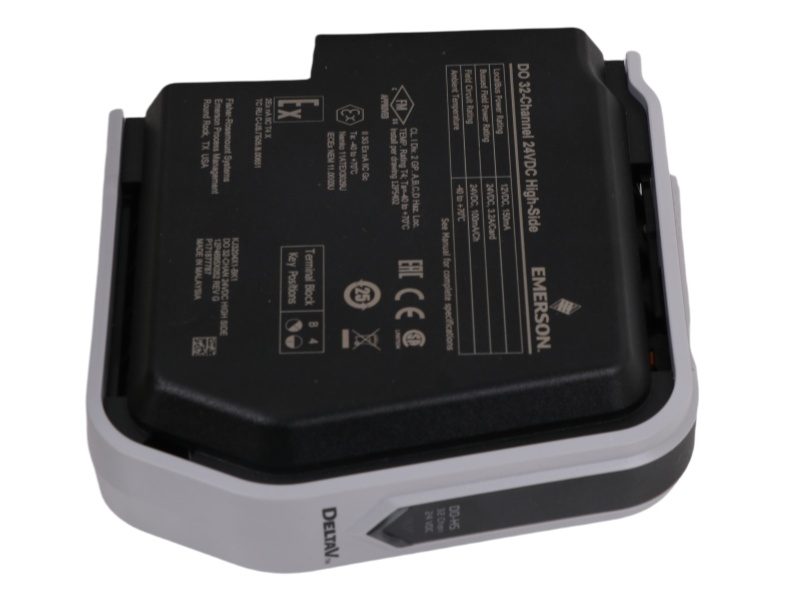

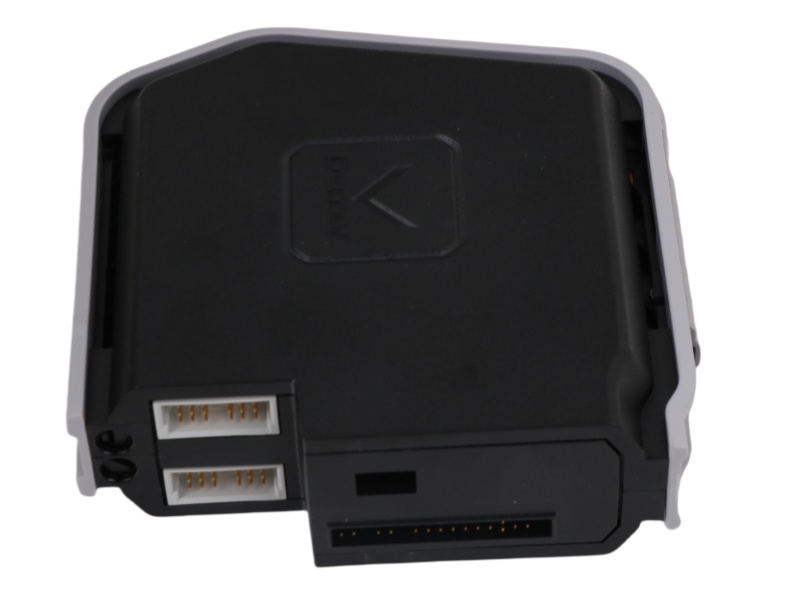

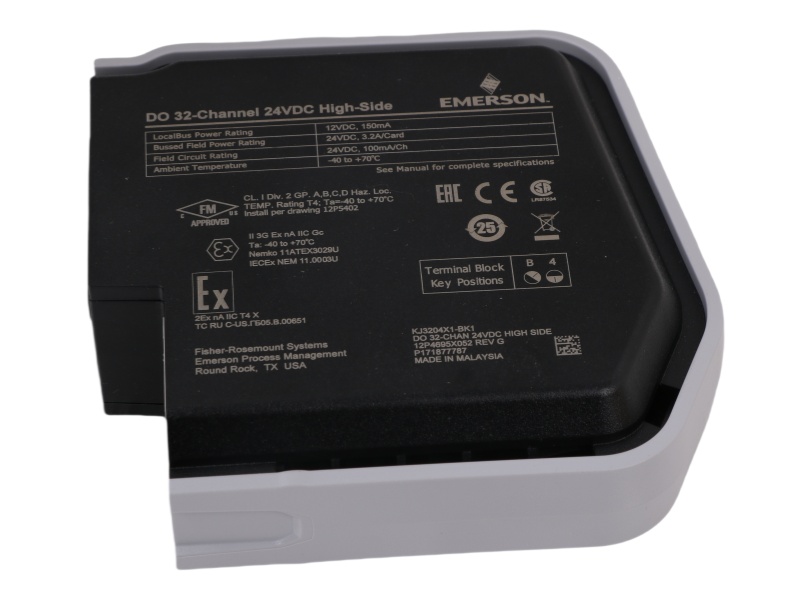

EMERSON KJ3208X1-BK1 12P4699X052 Digital Output Module

Inquiry now

KJ3208X1-BK1 12P4699X052 Product datasheet

Model number:	KJ3208X1-BK1 12P4699X052	Module Type：	Digital Output Module
Manufacture:	EMERSON	Condition：	Brand New
Range of Product:	DeltaV™ M-series I/O Subsystem	Lead time：	In Stock
Weight:	0.18kg	HS CODE：	8537101190
Dimension:	4.1 x 12.5 x 10.5cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Dec 31,2018	Communication Service:	Ethernet router

KJ3208X1-BK1 12P4699X052 Functional Description

The Digital Output Module EMERSON KJ3208X1-BK1 12P4699X052 is a high-performance digital output module engineered for demanding automation needs. This robust 8-channel, 24 VDC output unit ensures reliable signal switching, delivering up to 1 A per channel at 60 VDC. Designed to operate efficiently within -40°C to +70°C, it stands resilient against challenging industrial environments.

Built to exacting standards, the KJ3208X1-BK1 12P4699X052 EMERSON PDF handles vibration (1 mm peak-to-peak from 2–13.2 Hz, 0.7 g from 13.2–150 Hz) and shock up to 10 g, safeguarding consistent performance. With compliance to ISA-S71.04-1985 G3 airborne contaminants standards and 5–95% non-condensing humidity tolerance, it’s well-suited for energy, manufacturing, and petrochemical sectors.

This module measures just 4.1 × 12.5 × 10.5 cm and weighs only 0.18 kg, making it compact yet powerful. The EMERSON KJ3208X1-BK1 12P4699X052 Digital Output Module draws 12 VDC at 150 mA on the local bus, integrating seamlessly into DeltaV systems for secure, stable operations. Its design also ensures simplified field wiring and straightforward maintenance.

Manufactured in the USA and shipped from Xiamen, China, the KJ3208X1-BK1 12P4699X052 Emerson in stock represents a dependable choice for modern automation. Combining advanced diagnostics, rugged construction, and versatile deployment, it upholds process stability and enhances system safety, making it essential for precision control applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

EMERSON	KJ3223X1-BA1 12P2871X022 VE4003S2B6	EMERSON	KJ3222X1-BA1 12P2532X092 VE4003S2B2	EMERSON	KJ3203X1-BA1 12P3270X032 VE4001S2T2B4
EMERSON	KJ3222X1-BK1 12P4705X062 SE4003S2B1	EMERSON	KJ3222X1-BA1 12P2532X072 VE4033S2B1	EMERSON	KJ3203X1-BA1 12P3270X032 CE4001S2T2B4
EMERSON	KJ3222X1-BA1 12P2532X142 VE4033S2B1	EMERSON	KJ3222X1-BA1 12P2532X072 VE4003S2B2	EMERSON	KJ3203X1-BA1 12P3270X022 VE4001S2T2B4
EMERSON	KJ3222X1-BA1 12P2532X122 VE4033S2B1	EMERSON	KJ3221X1-BA1 12P2531X122 VE4003S2B2	EMERSON	KJ3222X1-BA1 12P2532X072
EMERSON	KJ3222X1-BA1 12P2532X122 VE4033S2B1	EMERSON	KJ3221X1-BA1 12P2531X112 VE4003S2B2	EMERSON	KJ3222X1-BA1 12P2532X122
EMERSON	KJ3222X1-BA1 12P2532X122 VE4003S2B3	EMERSON	KJ3221X1-BA1 12P2531X102 VE4035S2B1	EMERSON	KJ3222X1-BA1 12P2532X092
EMERSON	KJ3222X1-BA1 12P2532X122 VE4003S2B2	EMERSON	KJ3221X1-BA1 12P2531X062 VE4035S2B1	EMERSON	KJ3221X1-BA1 12P2531X102
EMERSON	KJ3222X1-BA1 12P2532X112 VE4003S2B2	EMERSON	KJ3209X1-BA1 12P3905X012 VE4002S2T1B1	EMERSON	KJ3221X1-BA1 12P2531X062
EMERSON	KJ3222X1-BA1 12P2532X092 VE4003S2B2	EMERSON	KJ3208X1-BA1 12P3904X022 VE4002S1T1B1	EMERSON	KJ3208X1-BA2 13P0105X012
EMERSON	KJ3222X1-BA1 12P2532X092 VE4003S2B3	EMERSON	KJ3203X1-BA1 12P3270X042 VE4001S2T2B4	EMERSON	KJ3203X1-BA1 12P3270X032

Digital Output Module Overview

A Digital Output Module is a critical industrial automation component that converts control signals into discrete on/off commands to actuate field devices like relays, valves, and indicators. These modules typically feature multiple channels (commonly 8, 16, or 32) with voltage ratings such as 24VDC or 120VAC, providing galvanic isolation between control systems and field equipment for electrical protection. Designed for harsh industrial environments, digital output modules operate reliably across wide temperature ranges (-40°C to +70°C) and withstand vibration/shock per IEC standards.

Advanced modules offer features like short-circuit protection, diagnostic LEDs, hot-swappable designs, and configurable fail-safe states. They interface with PLCs/DCS systems via backplane connections or fieldbus networks (Profibus, EtherCAT). Typical applications include motor control, alarm systems, and process sequencing in manufacturing, energy, and infrastructure sectors. High-performance variants support fast switching speeds (<1ms) and high current ratings (up to 2A/channel) for demanding applications. The modular design allows flexible system expansion while maintaining compact form factors for space-constrained installations.
