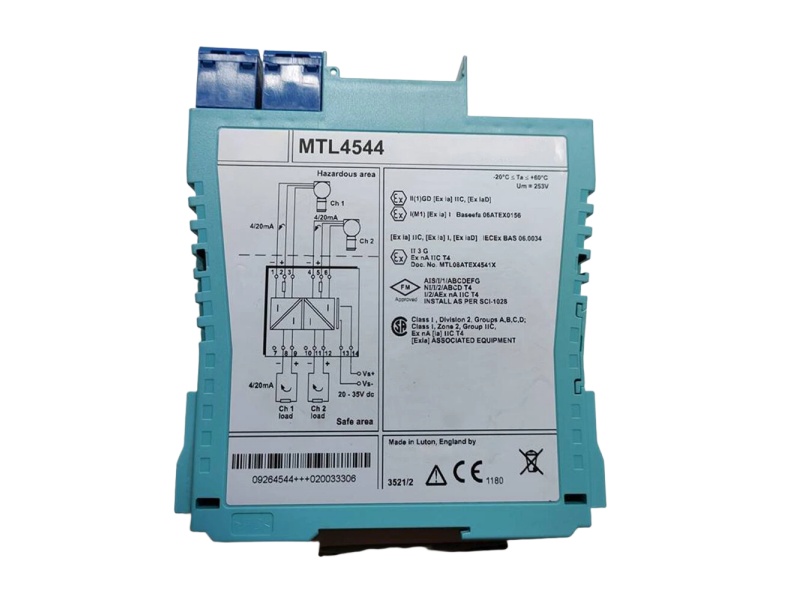

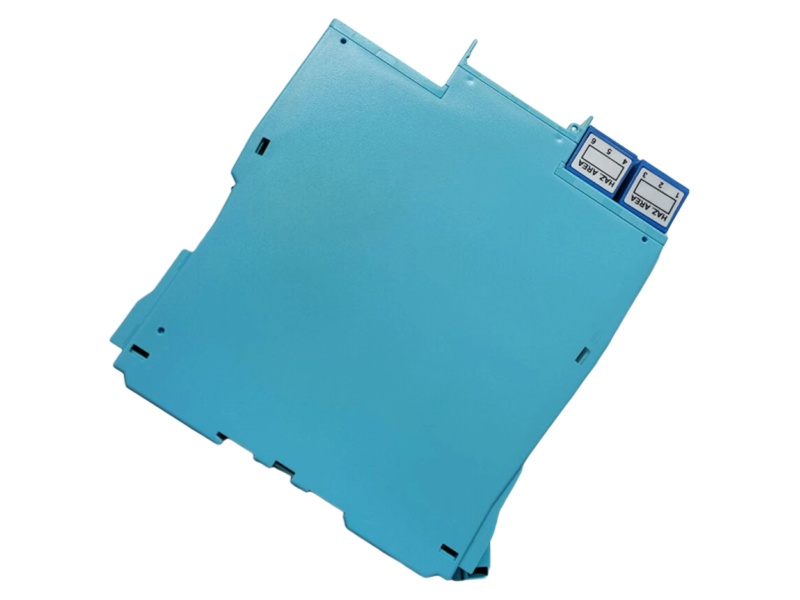

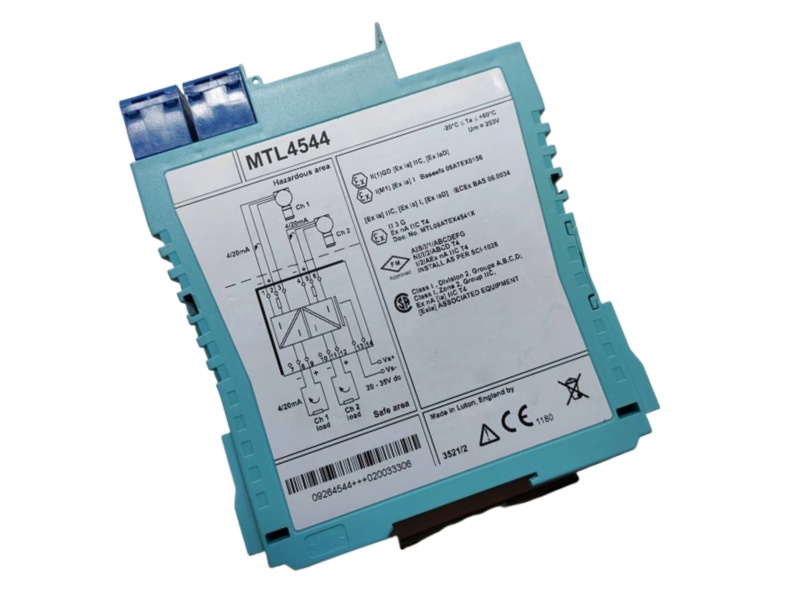

EATON MTL4544 Repeater Power Supply

Inquiry now

MTL4544 Product datasheet

Model number:	MTL4544	Module Type：	Repeater Power Supply
Manufacture:	EATON	Condition：	Brand New
Range of Product:	EATON	Lead time：	In Stock
Weight:	0.38 kg	HS CODE：	8537101190
Dimension:	12.2x10.7x3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	active	Communication Service:	Ethernet router

MTL4544 Functional Description

The MTL 4544 EATON Repeater Power Supply provides fully-floating DC supplies for powering two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in hazardous areas. It repeats the current in other circuits to drive two safe-area loads, ensuring reliable signal transmission and system performance.

For smart transmitters, the MTL4544 REPEATER POWER SUPPLY EATON allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Alternatively, the Transmitter Repeater MTL 4544 EATON version acts as a current sink for safe-area connections instead of driving current into the load, providing flexibility for various application requirements.

The EATON MTL4544 is suitable for installation in Zone 0, IIC, T4–6 hazardous areas when properly certified, and in Div. 1, Group A hazardous locations. Its safe-area output supports signal ranges from 4 to 20mA, with under/over-range capability of 0 to 24mA.

The module can handle safe-area load resistances up to 450Ω at 20mA and 360Ω at 24mA. The EATON Repeater Power Supply MTL 4544 offers maximum voltage sourcing of 24V DC and safe-area circuit output resistance greater than 1MΩ, delivering reliable and precise operation for industrial automation and process control applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SAIA	KOP128J7CAVPN14	Honeywell	FC-PSU-UNI2450U V1.0	Honeywell	DCOM-232/485 FC-DCOM-232/485
Sanyo Denki	PYRG015K1XXVP00	Honeywell	CC-TFB412 51308311-275	Honeywell	DC-TAIL51 51307601-176
EATON	MTL831C	Honeywell	CC-TAON01 51306519-175	Honeywell	DC-TAIX01 51307597-176
EATON	MTL5553	Honeywell	CC-TAOX11 51308353-175	Honeywell	DC-TCF901 51307593-176
EATON	MTL5573	Honeywell	CC-TCF901 51308301-175	Honeywell	DC-TFB402 51307616-176
Honeywell	FC-SICC-0001-L10	Honeywell	CC-TDIL01 51308386-175	Honeywell	CC-TAID11 51306731-175
Honeywell	FC-TSAOH-0220M	Honeywell	CC-TDIL11 51308388-175	Honeywell	CC-TDOB11 51308373-175
Honeywell	FC-TSDO-04UNI	Honeywell	CC-TDOB11 51308373-175	Honeywell	CC-PDOB11 51308373-175
Honeywell	8C-TDODB1	Honeywell	FC-TSRO-0824 V1.1	Honeywell	CC-PDOB01 51405043-176
Honeywell	8C-PAOHA1	Honeywell	FC-TSHART-1620M	Honeywell	CC-PDOB01 51405043-175

Functional Safety Compliance

These models have been evaluated for use in IEC 61508 functional safety applications, ensuring they meet rigorous industry standards for reliability and risk reduction. Each device is SIL2 capable when used individually, providing dependable performance in single-device safety systems with a Hardware Fault Tolerance (HFT) of 0. In configurations where multiple devices are employed in a safety-redundant setup, these models are SIL3 capable, supporting higher levels of safety integrity with an HFT of 1. This makes them suitable for critical industrial processes where redundancy and fault tolerance are essential to maintain operational safety and prevent hazardous events. Detailed technical data, including certification information, performance characteristics, and recommended applications, can be found on the MTL website. Users are also advised to consult the safety manual for comprehensive guidance on proper implementation, system design, and compliance considerations. By adhering to these guidelines, these models provide reliable and certified solutions for advanced safety-critical automation systems.
