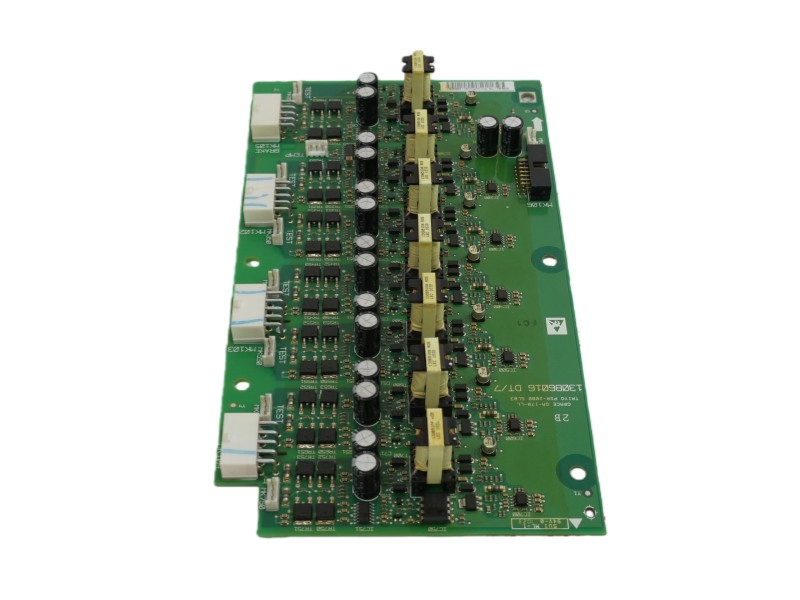

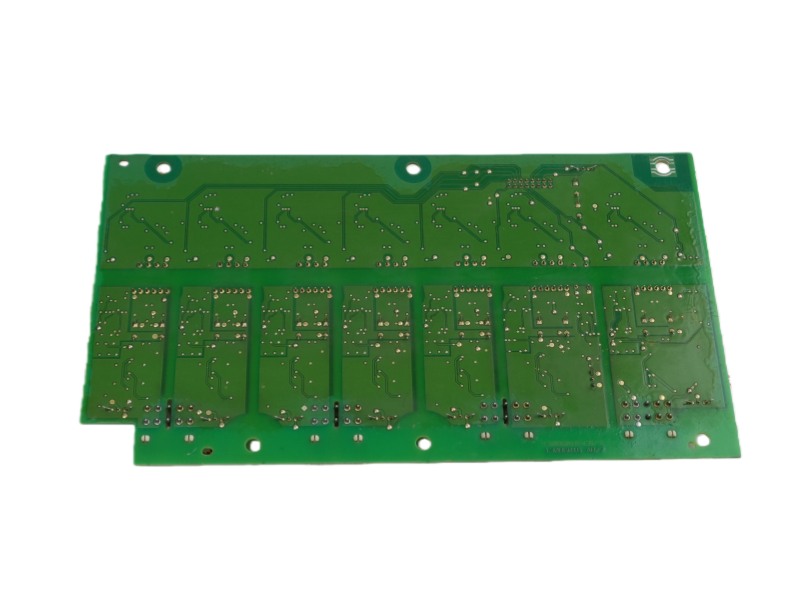

The 130B6016 DT/7 Danfoss DLT-5000 Inverter Drive is a specialized drive trigger board card designed for the DLT-5000 series of industrial inverter drives. Manufactured by Danfoss in the USA and available through global supply chains including Xiamen, China, this critical component serves as the control heart for motor drive systems, ensuring precise switching operations and reliable power conversion. The technical specifications of it reveal its robust electrical design, featuring comprehensive isolation capabilities ranging from 500 to 2000 V AC to protect against voltage surges and ensure system safety.

Engineered for industrial environments, the Trigger Board Card 130B6016 DT/7 Danfoss operates on a 24 V DC power supply with moderate power consumption between 5-15 watts, while its logic circuits function at standard 3.3 V and 5 V DC levels. The thermal performance of it allows continuous operation within a temperature range of 0°C to +70°C, with storage capability extending to extreme conditions from -40°C to +85°C, demonstrating its rugged construction suitable for demanding industrial applications.

The physical design of the Danfoss 130B6016 DT/7 DLT-5000 Series Drives features compact dimensions of 10.2x22.9x27.9 cm and a lightweight construction of 0.38 kg, facilitating easy integration into drive cabinets and control systems. As a trigger board card specifically designed for the DLT-5000 series drives, the Danfoss 130B6016 DT/7 plays an essential role in controlling power semiconductor devices, ensuring precise timing and switching characteristics for efficient motor speed regulation and torque control.

With its combination of electrical robustness, thermal stability, and precise control capabilities, the Drive Board Danfoss 130B6016 DT/7 represents a crucial component for industrial automation systems requiring reliable motor drive performance. The board's design focuses on maintaining signal integrity and switching accuracy even in electrically noisy environments, making it an ideal solution for various industrial applications where consistent drive performance and operational reliability are paramount for continuous production processes.
