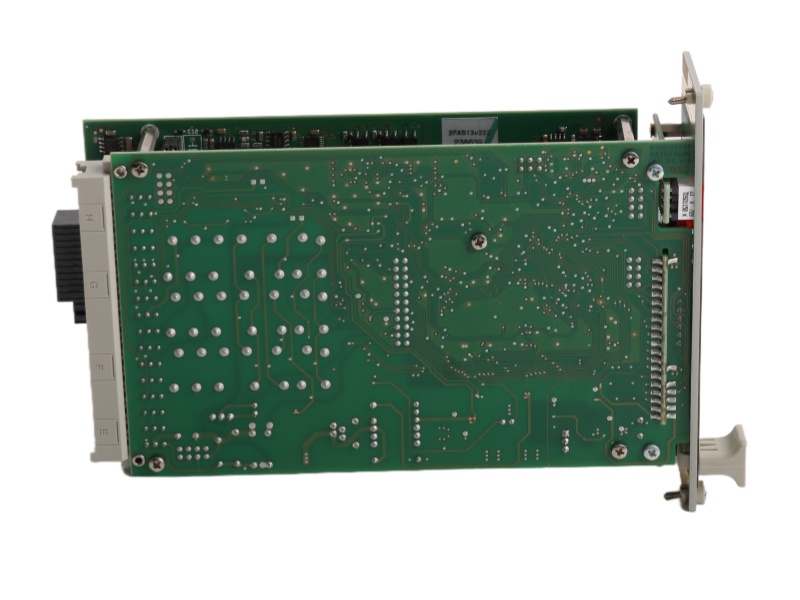

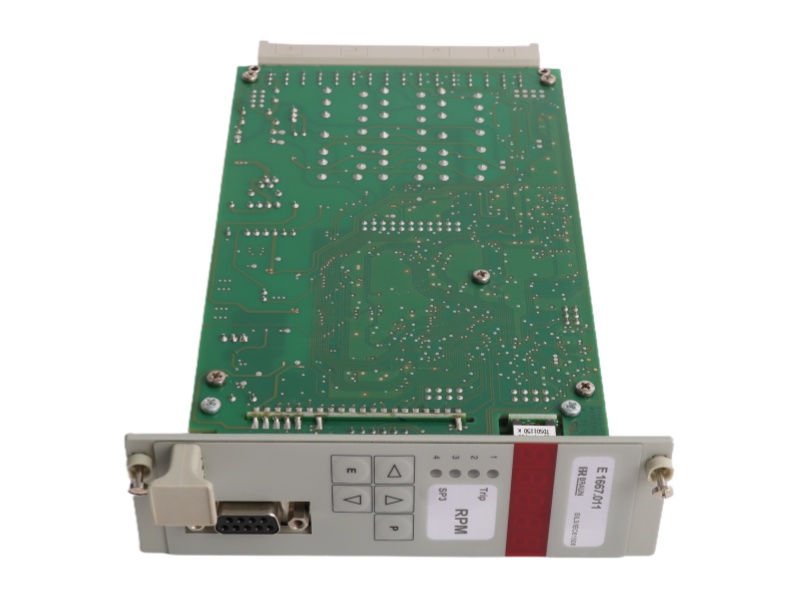

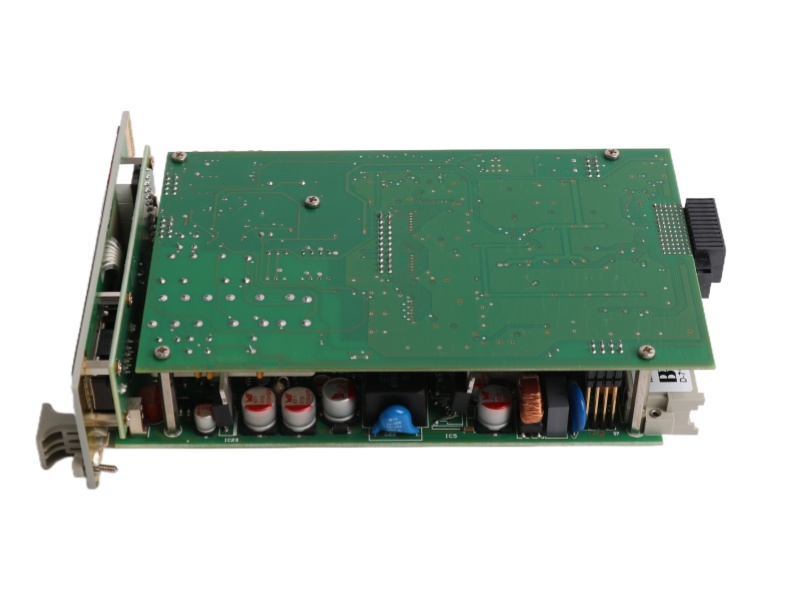

The Monitoring Module E1667.211 BRAUN-compliant monitoring module designed for precise industrial signal monitoring and fault detection. BRAUN POWER SUPPLY CARD E1667.211 provides reliable supervision of voter inputs and Trip-Line-Monitoring feedbacks, ensuring high safety and operational integrity in critical systems.

The module displays faults using the E.0.4.x.x code, with variations depending on the input signals being monitored. The actual status of the signal inputs can be viewed in Special Display Mode 2, which is accessed by pressing designated keys. In this mode, LED1 and LED4 blink to indicate the module is displaying detailed input information. The E1667.211 Monitoring Module BRAUN allows navigation through steps 0 to 4, with steps 3 and 4 being most relevant for troubleshooting.

Step 3 of Special Display Mode 2 shows the status of Trip-Line-Monitoring inputs, including feedback from Trip-Lines I, II, and III, individually or in combinations. Step 4 displays the voter signal inputs for voters 1 to 6, allowing operators to see which inputs are active. The BRAUN E1667.211 POWER SUPPLY CARD latches input status at the time of a detected error for accurate diagnostics.

With its intuitive display and robust monitoring capabilities, the Braun E1667.211 MODULE ensures precise fault detection and effective troubleshooting in industrial control systems. Its durable design guarantees long-term reliability and consistent performance in demanding operational environments.
