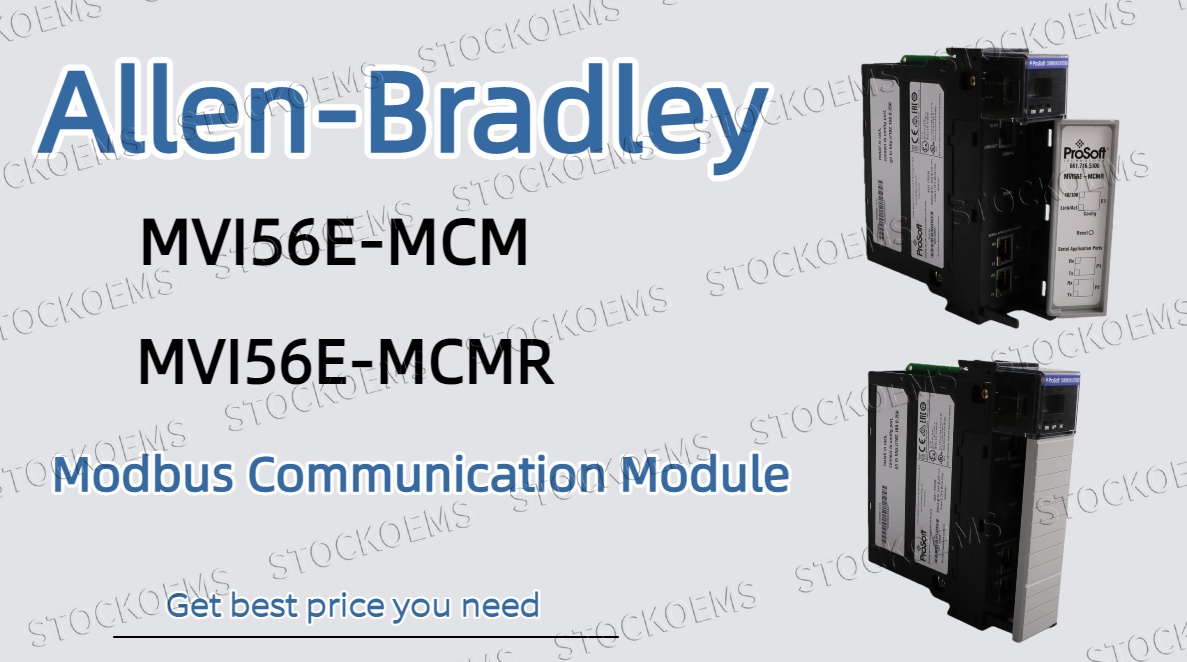

What Are the MVI56E-MCM and MVI56E-MCMR Modules and Why Are They Important
The MVI56E-MCM and its counterpart, the MVI56E-MCMR, are specialized communication modules developed by ProSoft Technology to serve as critical bridges within industrial automation networks. They are designed to seamlessly integrate Rockwell Automation's ControlLogix programmable automation controllers (PACs) with devices operating on the widely used Modbus protocol. This integration solves a fundamental connectivity challenge in heterogeneous industrial environments, where equipment from various manufacturers using different communication standards must work in unison. The core mission of these modules is to enable the ControlLogix processor to act as either a Modbus master, polling data from slave devices like sensors, drives, or meters, or as a Modbus slave, providing data to a superior master system. Their importance stems from their ability to expand the native connectivity of the ControlLogix platform, protecting existing investments in Modbus-based field equipment while allowing for centralized control and data acquisition within the modern automation architecture. Without such modules, system integrators would face complex, costly, and less reliable alternatives to achieve this essential protocol translation.
How Should You Deploy Each Module for Optimal Performance
The primary factor determining where and how to deploy these modules lies in the network topology and the specific functional requirements of the application. The MVI56E-MCMR module is architecturally optimized for deployment in remote chassis over a ControlNet network. How it achieves this is through a refined data exchange mechanism: it transfers data in smaller, 40-word blocks compared to the MCM's 200-word blocks. This design choice is directly related to the deterministic and bandwidth-conscious nature of ControlNet. The smaller data packet size allows for a much Reduced Packet Interval (RPI), making the MCMR significantly easier to schedule and configure within Rockwell's RSNetWorx for ControlNet software. This results in more predictable and efficient network performance in distributed ControlNet systems. Conversely, the standard MVI56E-MCM module is the recommended and most straightforward choice for applications where the module resides in the local chassis (alongside the ControlLogix processor) or is accessed via an Ethernet/IP network. In these scenarios, the larger 200-word data block transfer is not a constraint and can be more efficient. Therefore, the decision on where to use each module is clear: for remote ControlNet I/O racks, the MCMR is strongly advised; for local or Ethernet-based communication, the MCM is typically superior.
Why Would You Choose One Module Over the Other Beyond Network Type
Beyond the network topology, a critical functional distinction dictates when and why you must choose the MCM over the MCMR, irrespective of the network. This revolves around a feature called "pass-thru" mode, which is exclusively available on the MVI56E-MCM. Why is this feature so crucial? In certain legacy integration scenarios, a Modbus master system might be pre-configured to read from and write to the exact same Modbus register address in a single device. The MCM's pass-thru mode supports this requirement perfectly, allowing it to act as a transparent bridge. This is particularly valuable when the module is replacing an existing device in a system where the master's configuration cannot be altered. The MVI56E-MCMR, while an excellent Modbus slave, cannot operate in this manner. It requires separate and distinct address ranges for read commands and write commands from the master. Therefore, when the application demands this specific pass-thru functionality for seamless legacy integration, the MVI56E-MCM becomes the only viable choice. Furthermore, for applications where the module is configured as a Modbus master (initiating commands to other devices), the MCMR is generally recommended for use in remote racks due to its scheduling advantages, even though both modules can perform the master role.
When to Choose Between ProSoft MVI56E-MCM and MVI56E-MCMR Modules
In summary, the choice between ProSoft Technology's MVI56E-MCM and MVI56E-MCMR modules depends on the specific technical characteristics of the application scenario. The MVI56E-MCMR is designed for remote rack connections via ControlNet, employing a more streamlined data encapsulation method and offering significant advantages in network scheduling, making it suitable for distributed control systems with high real-time requirements. The standard version of the MVI56E-MCM, on the other hand, is more suitable for local rack or Ethernet environments. Its unique pass-through communication mode is compatible with the fixed configurations of traditional master systems, playing an irreplaceable role in equipment upgrade and retrofit projects. The functional differences between these two modules mainly lie in network compatibility and communication modes. Engineers need to comprehensively consider the on-site network architecture and communication protocol requirements when selecting a module. A correct choice not only improves system stability but also reduces subsequent maintenance costs, laying the foundation for the long-term stable operation of the automation system.
