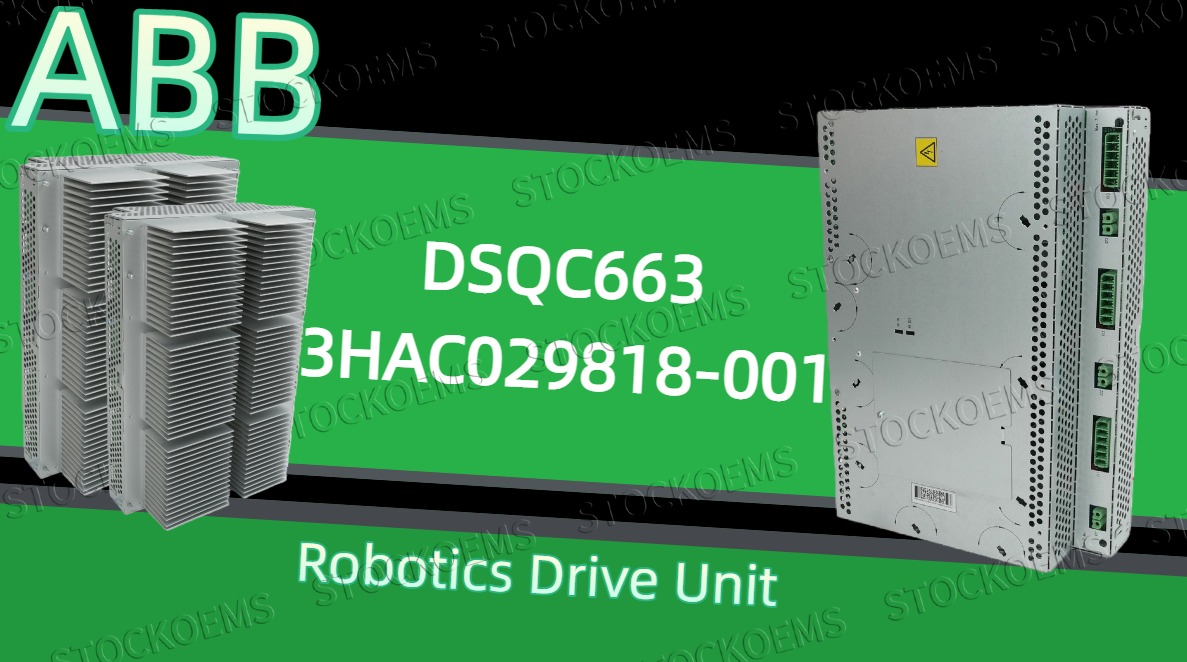

What is the ABB DSQC663 3HAC029818-001 Main Drive Unit
The DSQC663 3HAC029818-001 ABB Robot driver main drive unit is a core component of the industrial robot's power system. This compact device, measuring 55×40×30 mm, is essentially the "heart" of the robot. This unit employs a six-power-stage integrated design, primarily responsible for converting electrical energy into mechanical kinetic energy, ensuring precise and coordinated movement of the robot's joint axes. In practical applications, this main drive unit needs to be used in conjunction with an Additional Drive Unit (ADU) and an Additional Rectifier Unit (ARU) to form a complete drive system. When engineers upgraded an IRB 6600 robot at an automotive manufacturing plant in 2022, they successfully improved the positioning accuracy to 0.05 mm by installing this drive unit. Currently, this product is mainly shipped from the Estonian production base, and global users can purchase it through official ABB channels. Its part number 3HAC029818-001 is a key identifier to ensure authenticity.
Which industries should pay close attention to this drive unit
Equipment managers and maintenance teams in the automotive manufacturing, metal processing, and logistics warehousing industries should all include this drive unit in their priority spare parts list. At a new energy vehicle factory in East China, the equipment team regularly checks the unit's operational status quarterly, as they understand that the reliability of this black metal box directly impacts the overall production line's uptime. System integrators typically specify this drive unit model in their technical agreements when planning automation solutions, as seen in the smart warehousing project implemented for a white goods company last year, where all 12 IRB 6700 robots were equipped with this unit. Purchasing personnel should pay special attention to the complete model number control unit DSQC663 3HAC029818-001 ABB to avoid confusion with earlier versions. Maintenance engineers must strictly follow the instruction manual when replacing the unit; this is a crucial prerequisite for ensuring system safety.
Where can the actual application effect of this drive unit be observed
In the robot control cabinet of a modern smart factory, this unit, marked Computer Unit ABB DSQC 663 3HAC029818-001, is continuously functioning. In the welding workshop of an engine manufacturing company in Shanghai, 56 IRB 4600 robots equipped with this drive unit are performing precise welding at a frequency of 3 times per second. At a photovoltaic panel production base in North China, technicians can monitor the operating parameters of the drive unit in real time through a monitoring system; this data is of significant reference value for preventative maintenance. In a logistics sorting center, the drive unit installed inside an IRB 660 robot is controlling the robotic arm to sort packages at a rate of 60 times per minute. Notably, in the high-temperature and high-humidity painting workshop, the unit's special protective design effectively resists environmental corrosion; this feature has been fully verified in factories in the southeastern coastal region.
How to ensure the drive unit always maintains optimal working condition
Establishing a comprehensive preventative maintenance system is key to ensuring the reliable operation of the drive unit. A precision manufacturing company in Suzhou successfully predicted and avoided multiple sudden failures by collecting parameters such as unit operating temperature and vibration frequency monthly. In routine maintenance, technicians regularly use specialized cleaning tools to remove dust from the heat sinks; this simple operation has proven to effectively reduce the probability of failure by 30%. When replacing a unit, the main power supply must be disconnected first, and then insulated tools must be used. This safety rule is clearly stated in ABB technical documentation. For spare parts in stock, it is recommended to store them in a temperature- and humidity-controlled environment. The experience of an automotive parts manufacturer shows that scientific warehousing management can extend the lifespan of a unit by approximately 20%. These proven methods are crucial measures to ensure stable equipment operation.
Recommended Model
| 162-S | 175H1780 | 175U0043 |
| 170M6723 | 175H3932 | 175U1848 |
| 17190-21 | 175H4131 | 175Z0004 |
| 175G6008 | 175H6199 | 175Z0018 |
| 175H1001 | 175H7045 | 175Z0037 |
| 175H1011 | 175H7239 | 175Z0040 |
| 175H1150 | 175H7248 | 175Z0043 |
| 175H1733 | 175N2218 | 175Z0052 |
If you want to know details，please contact me without hesitate.
