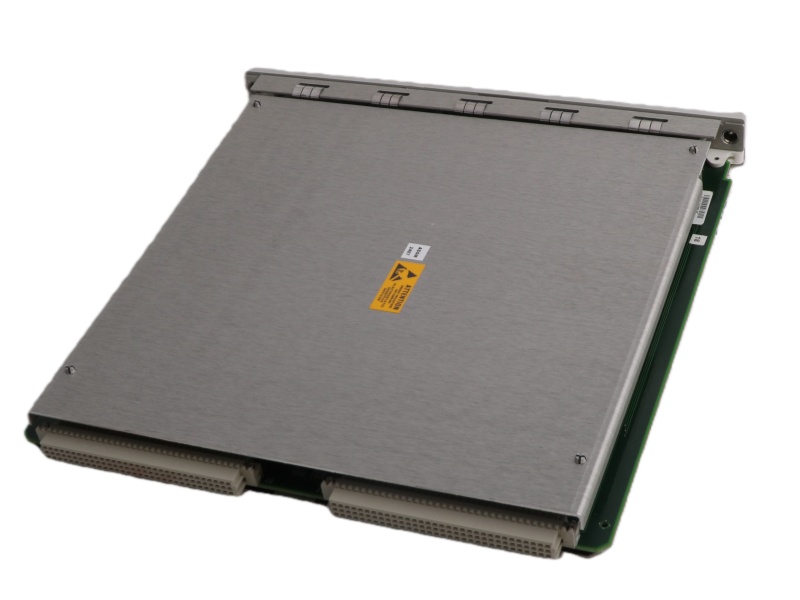

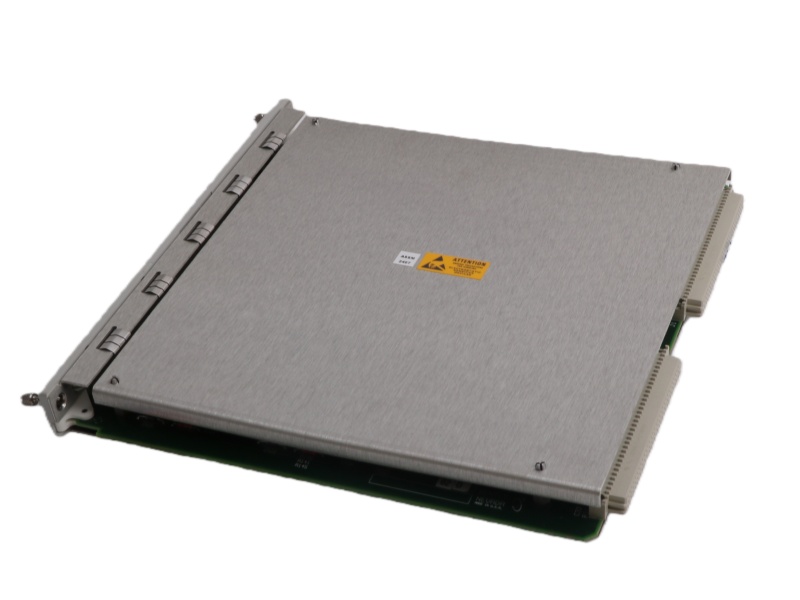

The Bently Nevada 3500 System 3500/61 133811-02 is a six-channel temperature monitor module that accepts both RTD and thermocouple inputs, providing alarm monitoring, recorder outputs, and flexible configurations for industrial applications.

Technical Data Summary

Monitoring Channels: Provides six channels of temperature monitoring.

Input Flexibility: Accepts both RTD and Thermocouple (TC) temperature transducer inputs.

Output Functionality: Includes dedicated recorder outputs for each of its six channels.

Sensor Support: Compatible with a wide range of TCs (Types E, J, K, T) and RTDs (Platinum, Nickel, Copper).

Redundancy Capable: Can be configured in Triple Modular Redundant (TMR) systems for high-availability applications.

Power Consumption: Has a nominal power consumption of 9 watts during operation.

FAQ

Q1: What is the key difference between the 3500/61 and the 3500/60 module?

A1: The 3500/61 module provides recorder outputs for each of its six channels, while the 3500/60 does not.

Q2: What types of temperature inputs does the 3500/61 module accept?

A2: It accepts both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs.

Q3: How many monitoring channels does this module have?

A3: It provides six independent channels for temperature monitoring and alarm comparison.

Q4: Can this module be used in a redundant system configuration?

A4: Yes, it is suitable for Triple Modular Redundant (TMR) configurations when installed in adjacent groups of three.

Q5: What is required to program the module for specific sensor types?

A5: The module is programmed using the 3500 Rack Configuration Software to select RTD or TC measurement modes and set alarm setpoints.
