3500/15-04-04 114M5330-01  Product datasheet

3500/15-04-04 114M5330-01 Functional Description

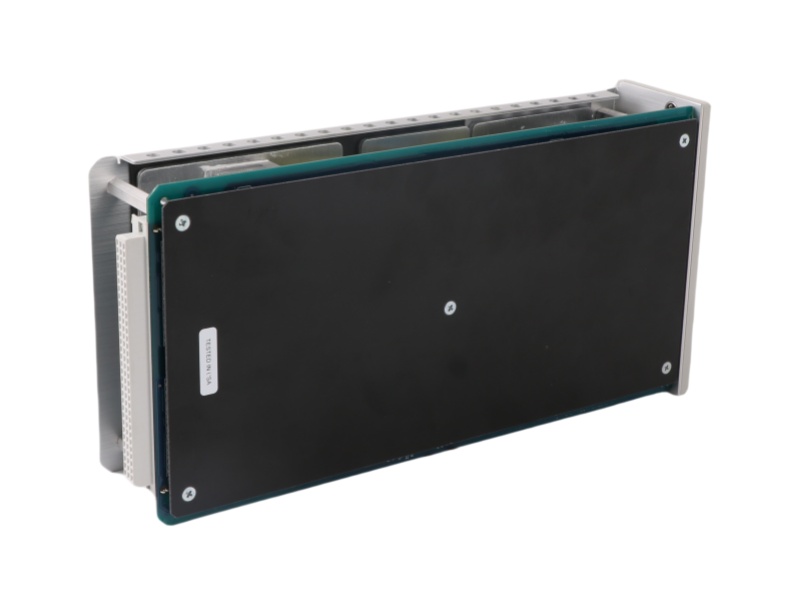

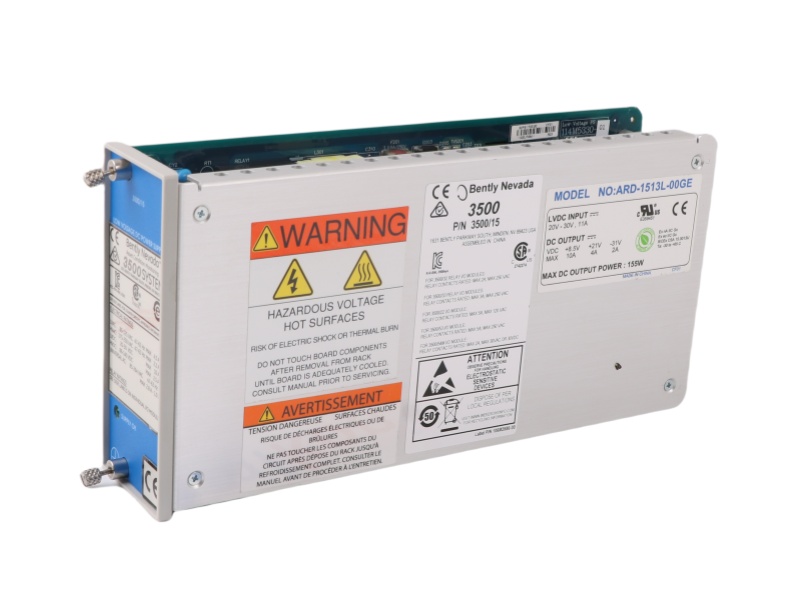

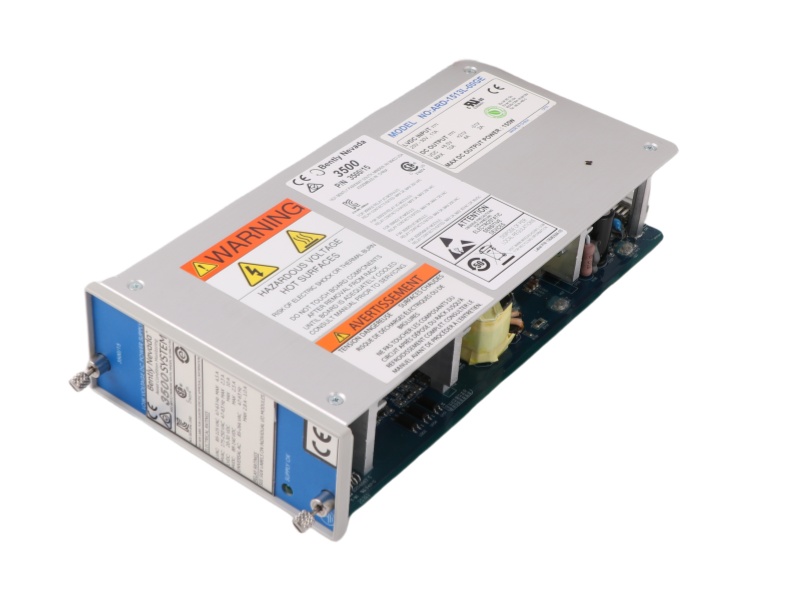

The Bently Nevada 3500/15-04-04 114M5330-01 Power Supply is a high-performance power supply module engineered for the 3500 Series Machinery Protection System. Designed to operate within an input frequency range of 47 to 63 Hz and an input voltage of 88 to 140 V DC, it ensures stable and reliable power delivery even in demanding industrial environments. With an operating temperature range from -30°C to +65°C and storage tolerance from -40°C to +85°C, this module is built for durability in harsh conditions.

This Bently Nevada Power Supply Module 3500/15-04-04 114M5330-01 supports a broad range of input voltages, efficiently converting them into outputs suitable for other 3500 Series modules. Available in multiple configurations, such as Universal AC, High Voltage DC, and Low Voltage DC, it offers flexibility for various applications while maintaining compatibility considerations between legacy and newer models. The unit’s robust design ensures consistent operation and longevity.

Compact and efficient, the Power Supply Bently Nevada 3500/15-04-04 114M5330-01 fits into designated half-height slots on the left side of the 3500 rack. The system can operate with a single power supply or a dual-redundant configuration, where the lower slot unit acts as the primary source and the upper slot unit serves as backup. In the event of a failure, the backup seamlessly takes over without interrupting operations.

The High Voltage AC/DC Power Supply Module 3500/15-04-04 114M5330-01 Bently Nevada guarantees uninterrupted machinery monitoring by allowing hot-swapping of modules when redundancy is in place. Its advanced design, compatibility options, and high reliability make it a critical component for ensuring the continuous protection and performance of rotating equipment within the 3500 Series system.
