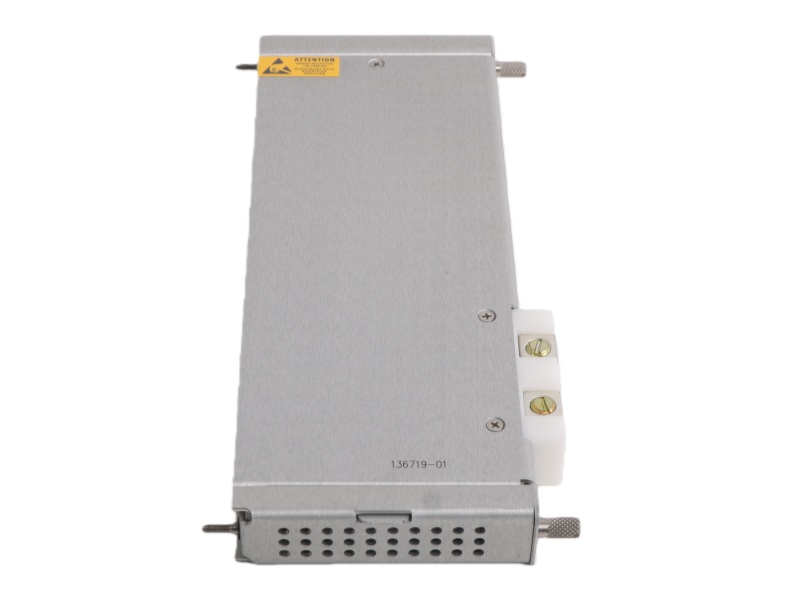

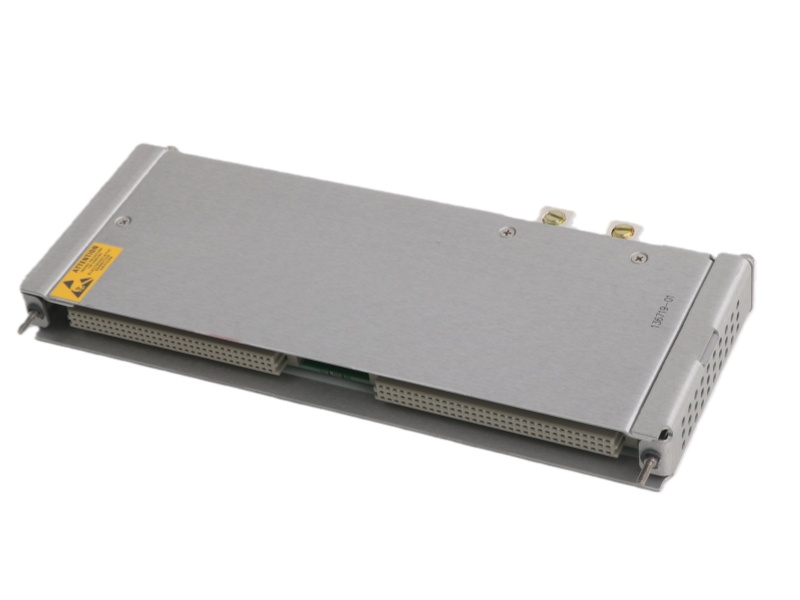

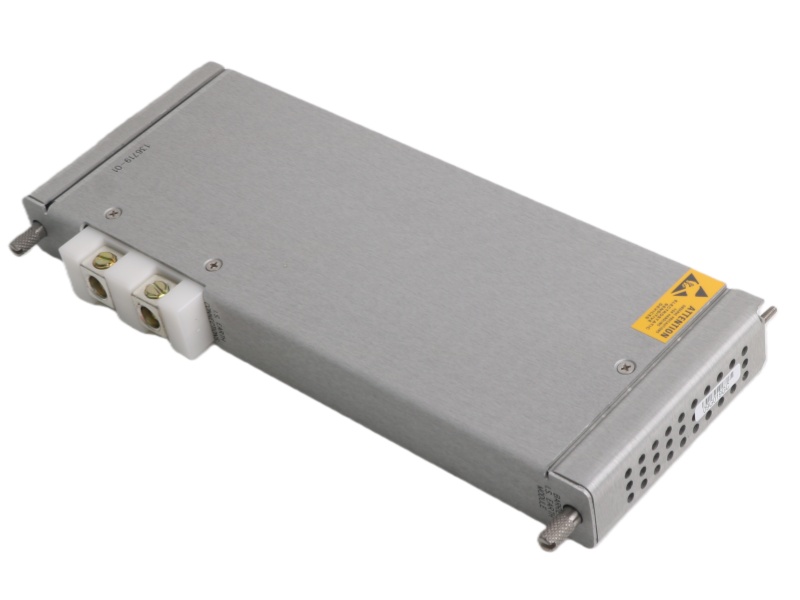

The Bently Nevada 3500/04 system, including components 136719-01 and 128275-01F, provides integrated, intrinsically safe internal barriers for connecting transducer systems in hazardous areas to the 3500 Machinery Protection System.

Product Features

 Intrinsic Safety: Provides certified explosion protection for transducer systems in hazardous environments.

Integrated Design: Internal barriers are a native part of the 3500 system, ensuring compatibility and preserving performance.

Cost-Effective Solution: Offers a convenient and economical alternative to external barrier installations.

Certified Compatibility: All components meet North American and international safety standards as a pre-approved system.

Flexible Configuration: Allows standard and barrier-equipped monitors to coexist within the same system rack.

Dedicated Grounding: Includes an IS Earthing Module (136719-01) for proper intrinsic safety grounding via the system backplane.

FAQ

Q1: What is the primary function of the Bently Nevada 3500 Internal Barriers?

A1: They provide intrinsically safe interfaces and explosion protection for transducer systems connected to the 3500 Machinery Protection System in hazardous areas.

Q2: How do the internal barriers differ from external barriers?

A2: Internal barriers are an integral part of the 3500 system and do not degrade its performance, unlike standalone external barriers.

Q3: What role does the 136719-01 module play?

A3: It is an Intrinsically Safe (IS) Earthing Module that provides the critical earth connection through the system's backplane.

Q4: Are standard monitors compatible with a rack containing internal barriers?

A4: Yes, standard monitors and monitors with internal barriers can reside together in the same 3500 rack.

Q5: Does installing internal barriers affect the rack's capacity?

A5: Yes, it limits a standard 19-inch rack to a maximum of 13 monitor positions, as the IS Earth Module occupies a dedicated slot.
