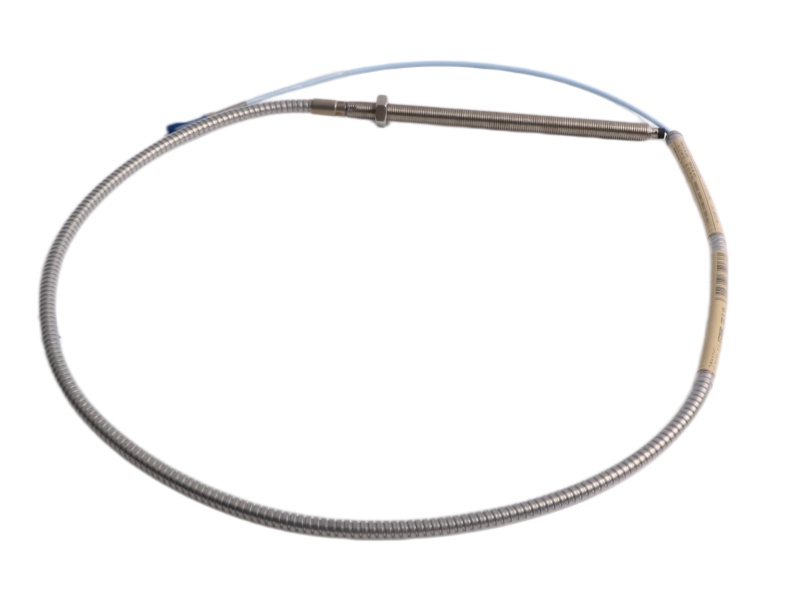

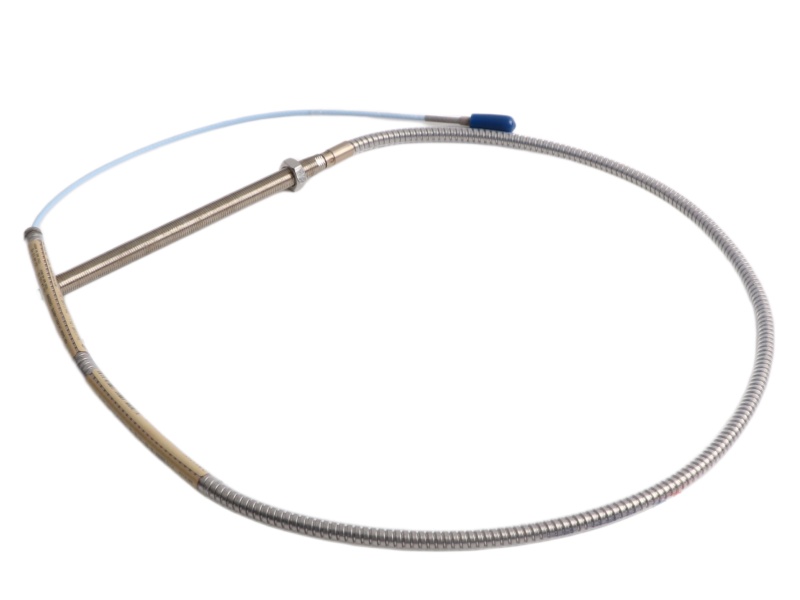

The 330909-00-60-10-02-00 Bently Nevada 3300 NSv Proximity Probes is a 3300 NSv proximity probe. Designed for tight installations, it features a 1.0-meter armored cable with a ClickLoc connector for vibration and position measurements on small shafts.

High-Resolution Measurement

Scale Factor: Provides 7.87 V/mm (200 mV/mil) average scale factor, the industry standard for eddy current transducers.

Linear Range: Offers 1.5 mm (60 mils) of linear range, exceeding the 3000-series 190 Transducer System performance.

Small Target Capability: Ideal for shafts smaller than 51 mm (2 in) and flat targets under 15 mm (0.6 in).

Tight Installations: Designed for areas with counter bore, sideview, or rearview restrictions.

Measurement Types: Supports radial vibration, axial position, tachometer, and Keyphasor measurements.

Application Versatility: Suitable for centrifugal, refrigeration, and process gas compressors with limited space.

FAQ

Q1: What types of machines is this probe specifically designed for?

A1: It is intended for centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Q2: What is the average scale factor of this system?

A2: The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil).

Q3: What are the primary applications for this transducer?

A3: It is used for radial vibration, axial position, tachometer, zero speed, and phase reference (Keyphasor) measurements.

Q4: What is the linear range of this NSv system?

A4: The system provides 1.5 mm (60 mils) of linear range, which exceeds the 3000-series 190 Transducer System.

Q5: Which older systems can this probe replace?

A5: It can replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer Systems.
