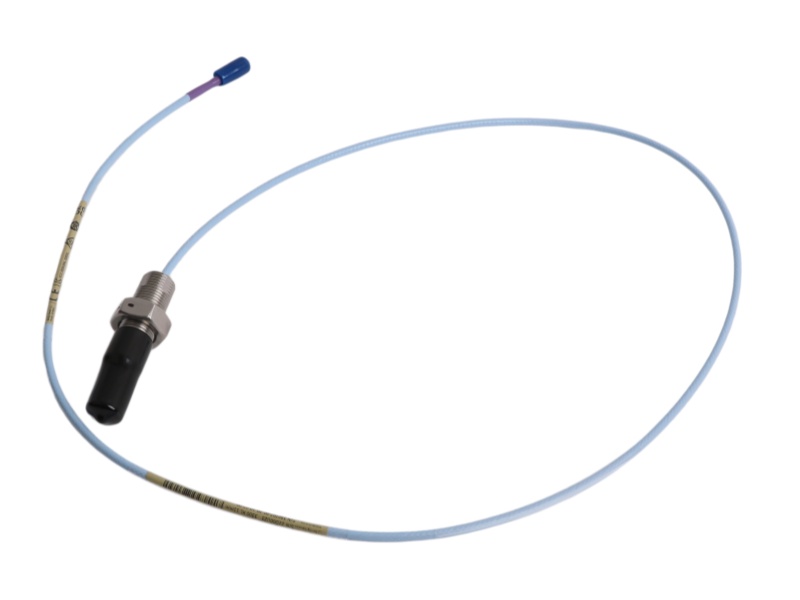

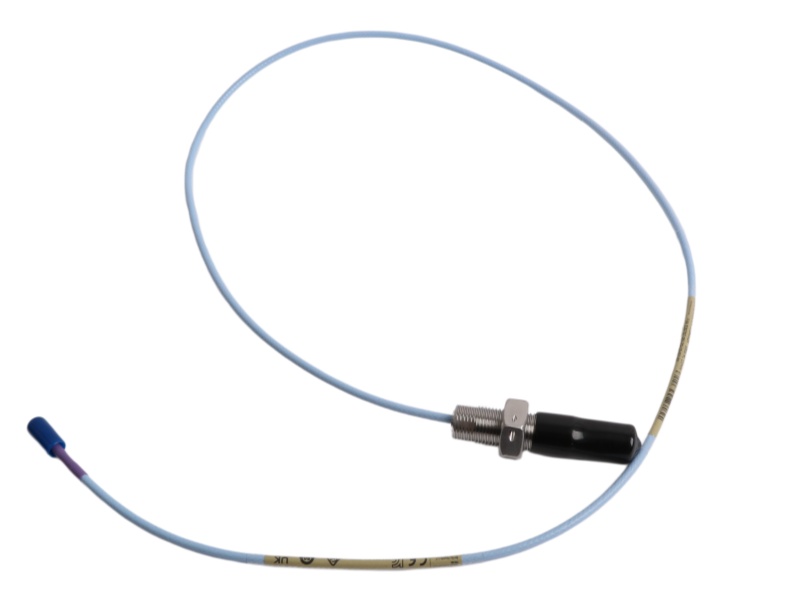

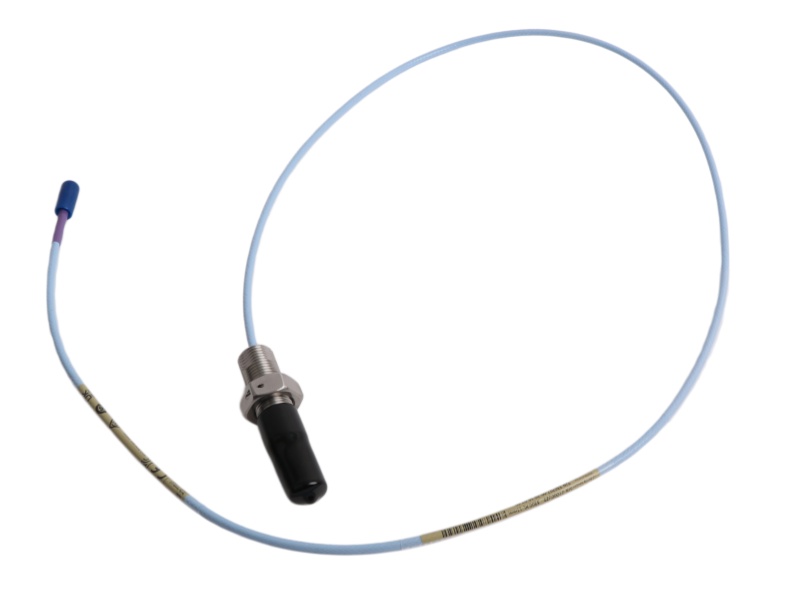

The 3300 XL 11 mm Proximitor Sensor Bently Nevada 330707-00-10-10-02-00 is a 3300 XL 11 mm proximity probe. It features a 1.0-meter cable and ClickLoc connector, providing 3.94 V/mm output for extended-range vibration and position measurements.

Technical Data Summary

System Type: 3300 XL 11 mm proximity transducer for non-contacting vibration and displacement measurements.

Output Sensitivity: 3.94 V/mm (100 mV/mil) for precise monitoring applications.

Extended Range: Larger 11 mm tip provides longer linear range than standard 8 mm systems.

Primary Applications: Axial position, ramp differential expansion, rod position, tachometer, and Keyphasor measurements.

Connection: Features 1.0-meter integral cable with miniature coaxial ClickLoc connector.

Thread Type: 5/8-18 UNF thread configuration without armor protection.

FAQ

Q1: What is the output sensitivity of this 11 mm system?

A1: The system provides a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements.

Q2: What is the main advantage of the larger 11 mm probe tip?

A2: The large 11 mm tip enables a longer linear range compared to the standard 3300 XL 8 mm transducer system.

Q3: What are the primary applications for this transducer?

A3: It is used for axial position, ramp differential expansion, rod drop, tachometer, and Keyphasor measurements.

Q4: What type of connector does this probe feature?

A4: It features a 1.0-meter cable with a miniature coaxial ClickLoc connector.

Q5: What thread type is used on this probe?

A5: The probe has a 5/8-18 UNF thread configuration without armor protection.
