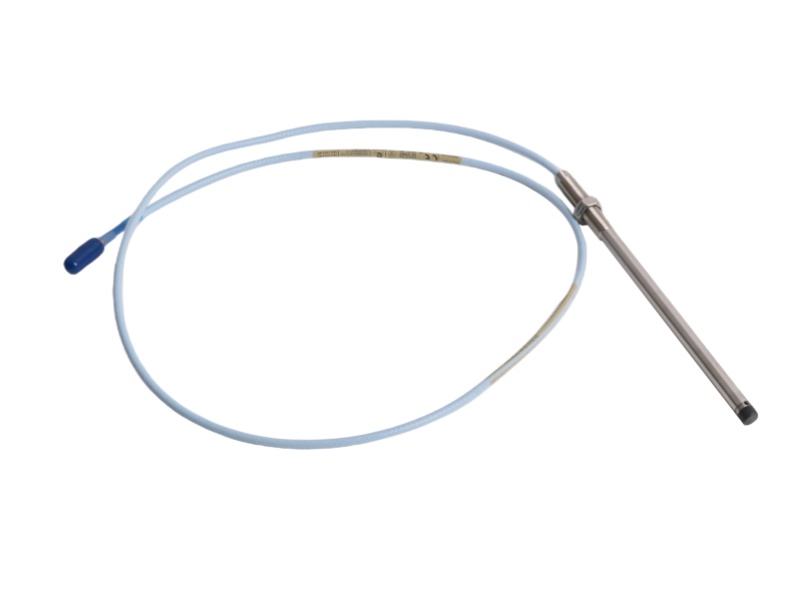

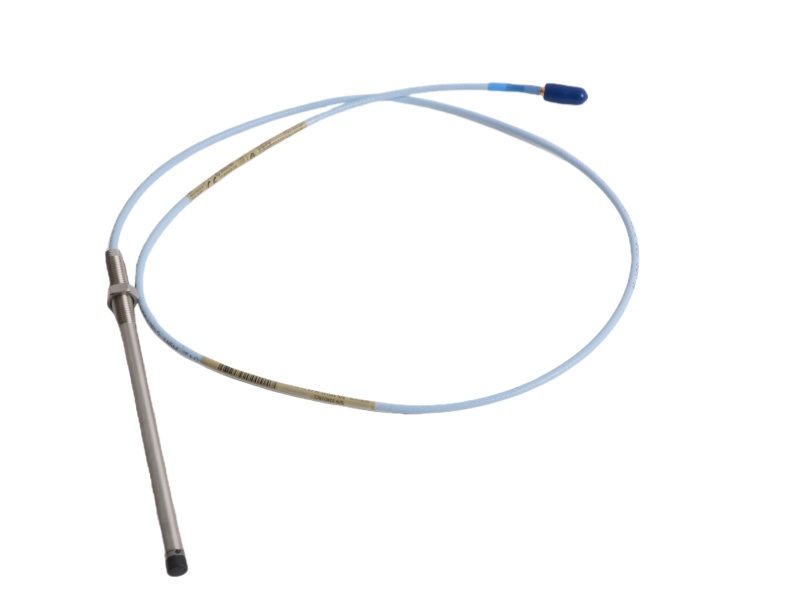

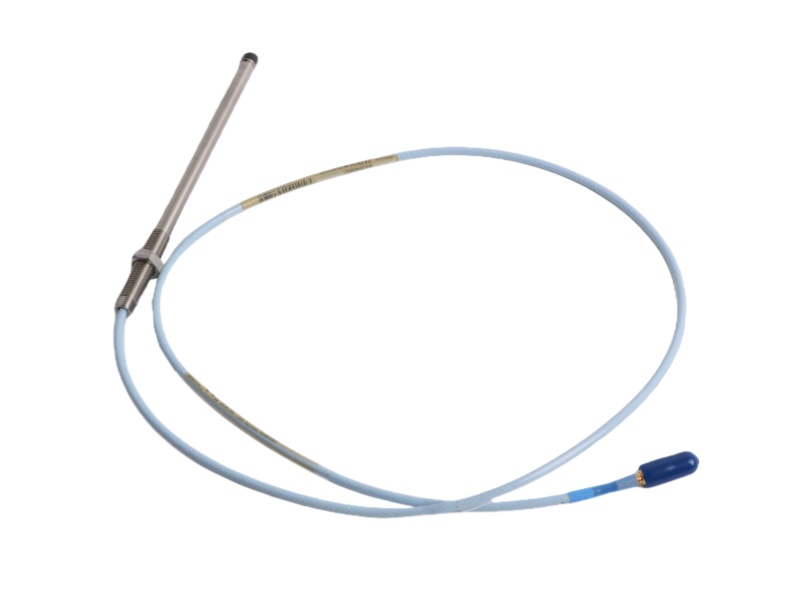

The 3300 XL 8 Mm Proximity Probes Bently Nevada 330101-48-71-20-02-05 operates under specific environmental conditions, performing optimally between 0°C to +45°C at altitudes up to 2000 meters. This system requires a -24 Vdc power supply with a 10 kΩ load and utilizes a Bently Nevada supplied AISI 4140 steel target measuring 31 mm or larger with a 1.0 mm probe gap to maintain specified accuracy.

The Bently Nevada 330101-48-71-20-02-05 Proximity Probes achieves its rated performance only when calibrated with the specified steel target, as system accuracy and interchangeability specifications do not apply to other target materials.

The Proximitor sensor in the 3300 XL 8 mm Proximity Transducer System  330101-48-71-20-02-05 Bently Nevada accepts both 3300 RAM and 3300 NSv noncontacting proximity probes with extension cables. Its power requirements range from -17.5 Vdc to -26 Vdc without barriers at maximum 12 mA consumption, or -23 Vdc to -26 Vdc when used with barriers. The Proximity Probes 330101-48-71-20-02-05 Bently Nevada demonstrates exceptional power supply sensitivity, maintaining less than 2 mV change in output voltage per volt change in input voltage.

This specific configuration of the Bently Nevada 330101-48-71-20-02-05 ensures reliable operation within defined electrical parameters while delivering precise measurement capabilities. The system's performance remains stable across the specified voltage range, though operation at voltages more positive than -23.5 Vdc may result in reduced linear range. The 3300 SERIES Bently Nevada 330101-48-71-20-02-05 represents advanced engineering for critical machinery monitoring applications where consistent performance under standardized conditions is essential for accurate vibration and position measurement.
