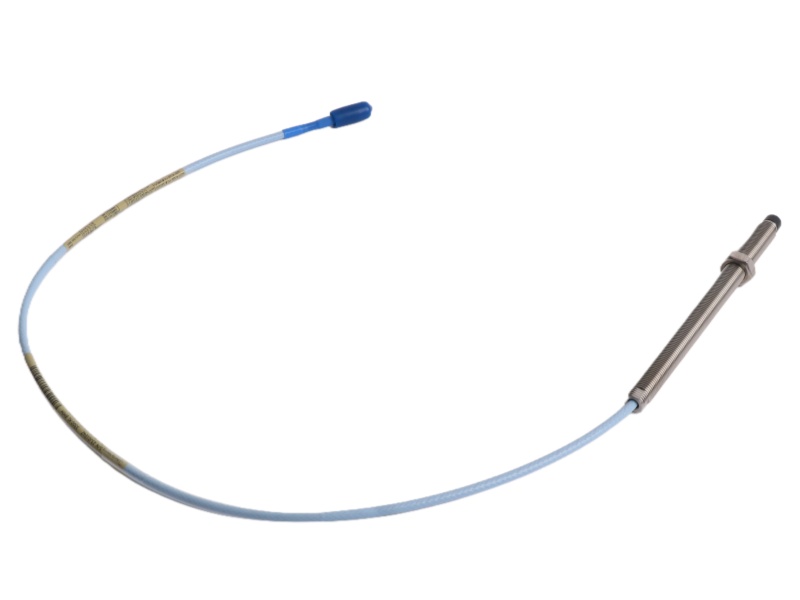

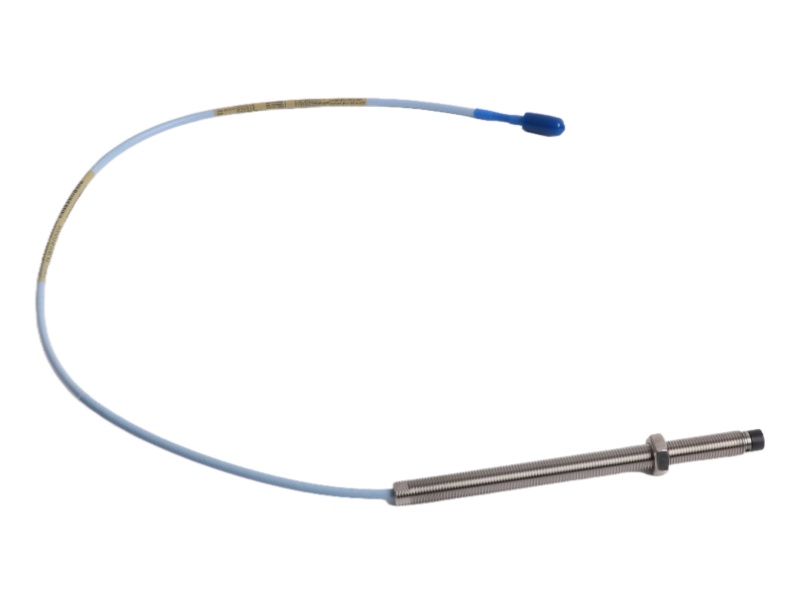

The Bently Nevada 330101-00-55-05-11-00 is a 3300 XL 8 mm proximity probe offering precise displacement detection, robust TipLoc construction, and dependable performance for continuous condition monitoring of critical rotating equipment.
Specifications
Probe Tip Materia：Polyphenylene sulfide (PPS).
Probe Case Material：AISI 303 or 304 stainless steel (SST).
Standard cable：75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable：75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated)：330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material：Gold-plated brass or goldplated beryllium copper.
Standard Probe：-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe：-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
Maximum unthreaded length: 8.8 in. Maximum case length: 9.6 in.
Minimum case length: 0.8 in.Minimum unthreaded length: 0.0 in.
FAQ
Q1: What is the Bently Nevada 330101-00-55-05-11-00 designed for?
A1: It is designed to monitor shaft displacement and dynamic motion in rotating machinery.
Q2: What type of output does this probe provide?
A2: It generates a linear voltage signal proportional to the distance from the target surface.
Q3: What makes this probe suitable for industrial environments?
A3: Its rugged design and high pull-strength cable ensure durability in harsh operating conditions.
Q4: Can this probe be used for speed or phase detection?
A4: Yes, it supports Keyphasor signals and speed measurement in monitoring systems.
Q5: Does it support flexible installation options?
A5: Yes, it is available with various configurations and optional FluidLoc cables for added protection.
