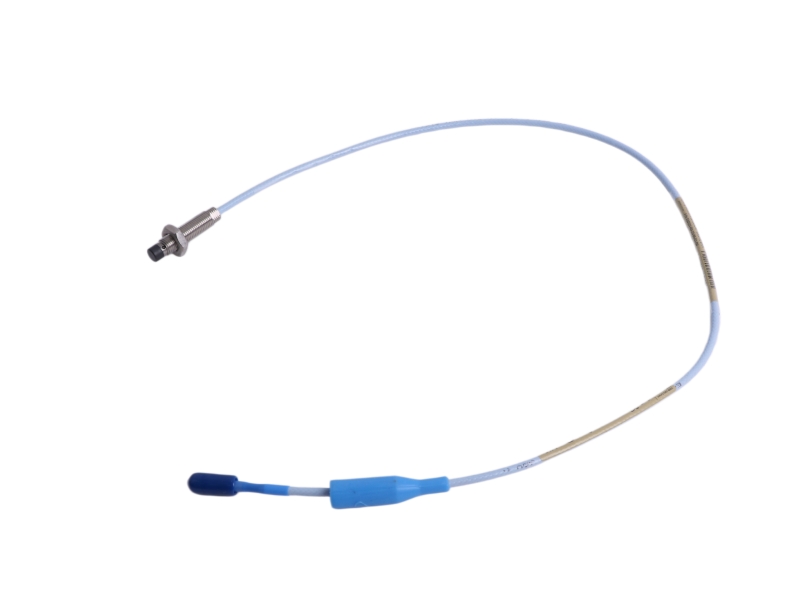

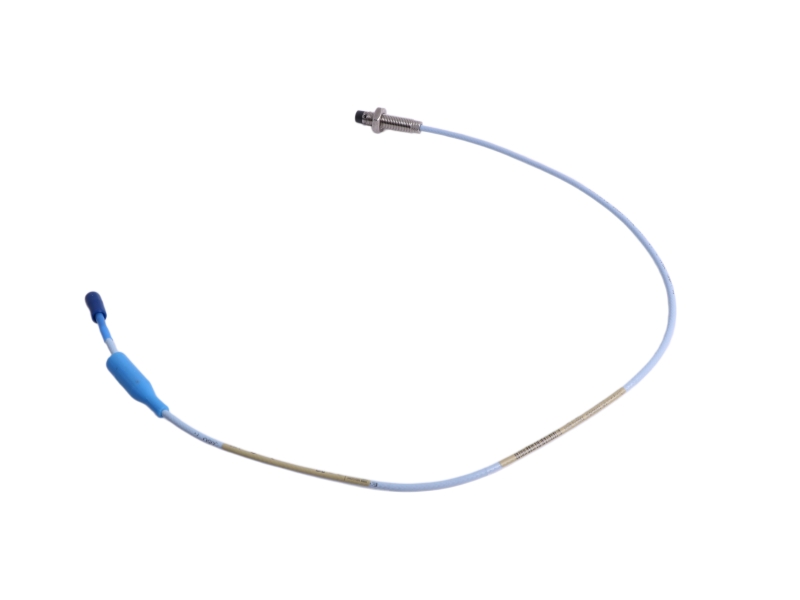

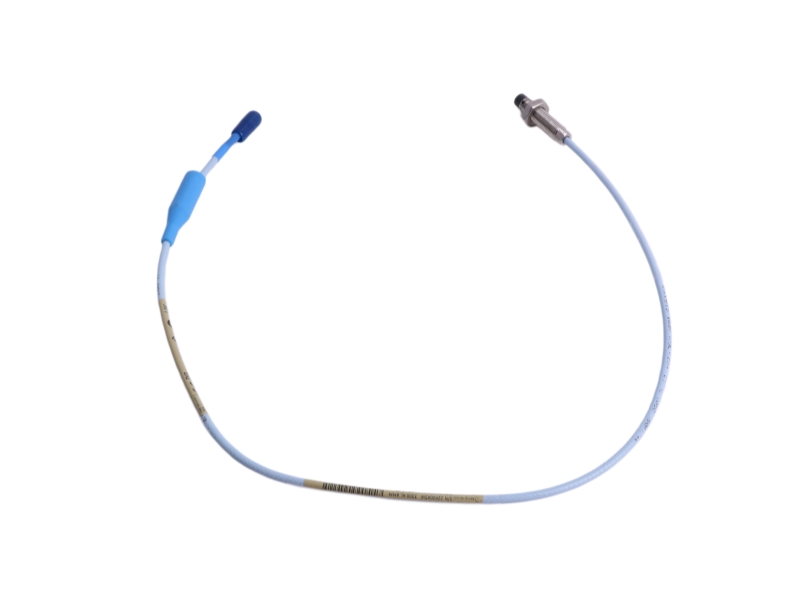

The Bently Nevada 330101-00-15-05-11-00 is a compact 3300 XL 8 mm probe engineered for accurate non-contact measurement, offering stable performance and excellent compatibility in tight installation spaces.
Specifications
Probe Tip Materia：Polyphenylene sulfide (PPS).
Probe Case Material：AISI 303 or 304 stainless steel (SST).
Standard cable：75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable：75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated)：330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material：Gold-plated brass or goldplated beryllium copper.
Standard Probe：-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe：-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
Dimension：1.8x1.6x70cm
Weight：0.06kg
FAQ
Q1: What is the Bently Nevada 330101-00-15-05-11-00 mainly used for?
A1: It is mainly used for monitoring shaft position and vibration in rotating equipment.
Q2: How does this probe improve installation flexibility?
A2: Its compact design makes it ideal for applications with limited mounting space.
Q3: What type of machines is it suitable for?
A3: It is commonly applied in turbines, compressors, and other fluid-film bearing machines.
Q4: Does it require calibration when replacing components?
A4: No, it supports interchangeable components without the need for recalibration.
Q5: What feature enhances cable reliability?
A5: The CableLoc design ensures strong cable attachment and resistance to mechanical stress.
