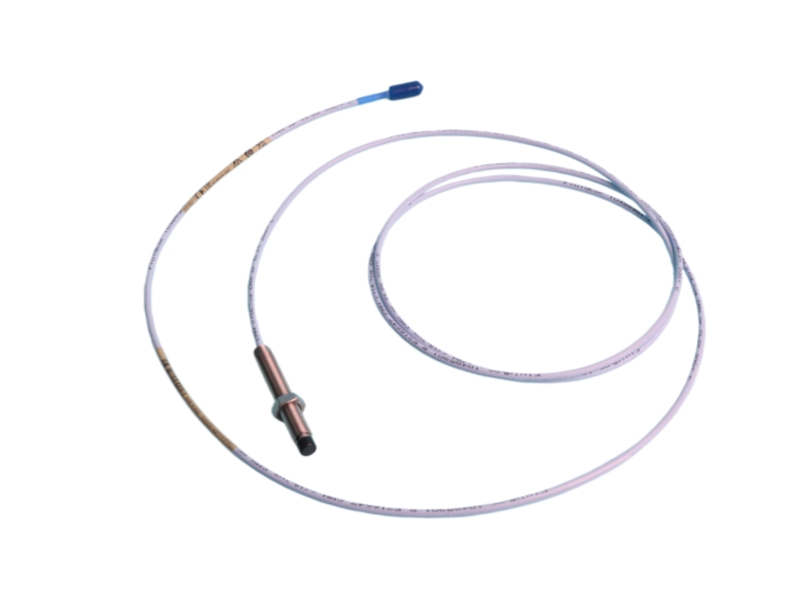

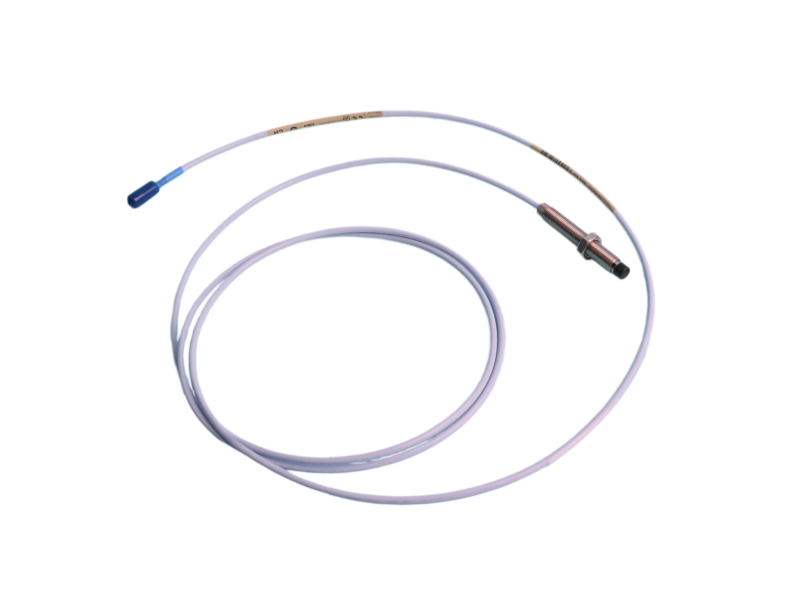

The Bently Nevada 330101-00-25-05-11-00 is a high-performance 3300 XL 8 mm probe built for precise gap sensing, offering excellent stability, strong environmental resistance, and seamless integration in machinery protection systems.
Specifications
Probe Tip Materia:Polyphenylene sulfide (PPS).
Probe Case Material:AISI 303 or 304 stainless steel (SST).
Standard cable:75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable:75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated):330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material:Gold-plated brass or goldplated beryllium copper.
Standard Probe:-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe:-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
Dimension:18x18x2cm
Weight:0.1kg
FAQ
Q1: What is the Bently Nevada 330101-00-25-05-11-00 designed to detect?
A1: It detects shaft displacement and dynamic vibration in rotating machinery.
Q2: How does this probe ensure measurement accuracy?
A2: It uses advanced eddy current technology to deliver stable and precise gap signals.
Q3: What standards does this probe meet?
A3: It complies with API 670 requirements for performance, reliability, and consistency.
Q4: Is this probe suitable for continuous monitoring systems?
A4: Yes, it is widely used in condition monitoring and machinery protection systems.
Q5: What feature helps improve sealing performance?
A5: The optional FluidLoc cable helps prevent internal fluid leakage and contamination.
